Load cell technology has revolutionized the way we measure force and weight across various industries. These sophisticated sensors have become indispensable in applications ranging from industrial weighing systems to precision scientific instruments. In this comprehensive guide, we'll delve into the intricate workings of load cells, explore their diverse applications, and examine the latest advancements in this crucial field of measurement technology.
A load cell is an electro-mechanical sensor designed to measure force or weight by converting mechanical input into an electrical output. These versatile devices are the backbone of many weighing systems and force measurement applications. Load cells come in various types and sizes, each tailored to specific use cases and environmental conditions.

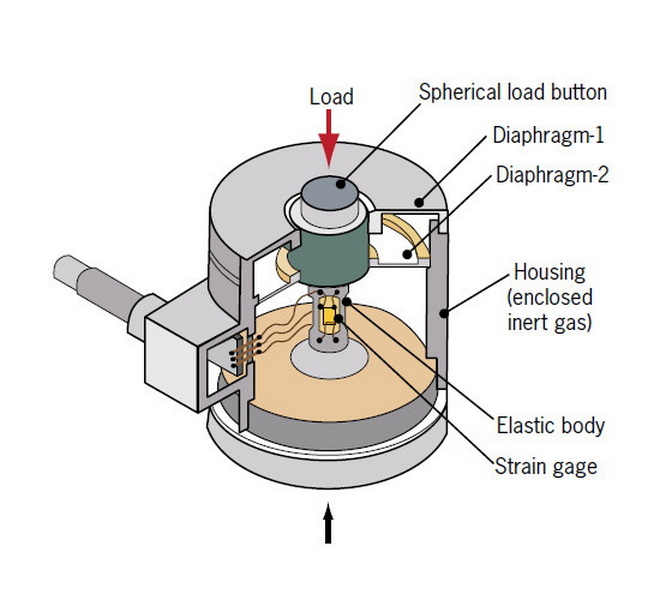

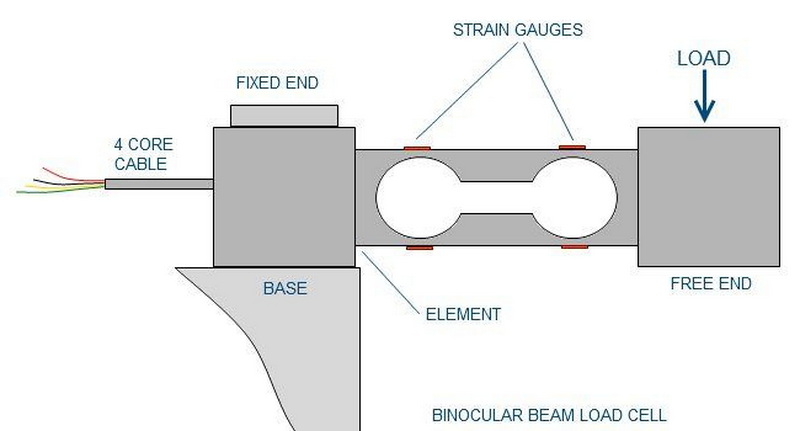

The most common type of load cell utilizes strain gauge technology. Strain gauge load cells operate on the principle of electrical resistance change in response to applied force. When a force is applied to the load cell, it causes a slight deformation in the cell's structure. This deformation is measured by strain gauges, which are thin metallic foils or semiconductor materials bonded to the load cell's surface.
As the load cell deforms under pressure, the strain gauges stretch or compress, causing a change in their electrical resistance. This resistance change is proportional to the applied force, allowing for precise measurement of weight or force.
To accurately measure the small changes in resistance produced by strain gauges, load cells typically employ a Wheatstone bridge circuit. This configuration consists of four resistive elements, with strain gauges often serving as two or all four of these elements. The Wheatstone bridge allows for the detection of minute resistance changes, translating them into a measurable electrical signal that can be processed and displayed as a weight or force reading.
Load cells come in various designs, each optimized for specific applications and measurement ranges. Some common types include:
These load cells are designed to measure forces pushing down on them. They are commonly used in platform scales, truck scales, and industrial weighing applications.
Tension load cells measure pulling forces and are often used in crane scales, material testing, and lifting applications.
These versatile load cells can measure both tension and compression forces. They are commonly used in tank weighing, hopper scales, and conveyor belt scales.
Named for their S-shaped design, these load cells can measure both tension and compression. They are often used in hanging scales, crane scales, and material testing applications.
These compact load cells are designed for applications with limited space. They are commonly used in portable scales, force testing equipment, and medical devices.
The versatility and accuracy of load cells have made them indispensable in numerous industries. Here are some key applications:
Load cells form the foundation of industrial weighing systems, enabling accurate measurement of raw materials, finished products, and everything in between. From truck scales to conveyor belt weighing systems, load cells ensure precise inventory management and quality control.
In the aerospace and automotive industries, load cells play a crucial role in structural testing, component evaluation, and safety assessments. They help engineers measure forces and stresses on aircraft components, vehicle parts, and entire structures during testing and development phases.
Load cells are used in various medical devices, including patient lifts, hospital beds, and rehabilitation equipment. They ensure accurate weight measurement for patient monitoring and proper dosing of medications.
In agriculture, load cells are used in grain silos, livestock scales, and harvesting equipment to monitor crop yields and animal weights. The food processing industry relies on load cells for precise ingredient measurement and packaging operations.
Load cells are integral to many robotic systems, providing force feedback for precise control in tasks such as assembly, material handling, and quality inspection.
As technology continues to evolve, so do load cells. Recent advancements have focused on improving accuracy, durability, and integration capabilities:
Traditional analog load cells are being replaced by digital versions that offer improved signal processing, easier calibration, and better integration with modern control systems.
Wireless technology has enabled the development of load cells that can transmit data without the need for physical connections, simplifying installation and reducing maintenance requirements.
Specialized load cells designed to operate in extreme temperatures have expanded the range of applications, particularly in industries such as steel production and aerospace testing.
Advancements in materials and manufacturing techniques have led to the development of increasingly compact load cells, enabling their use in space-constrained applications and portable devices.
The accuracy and reliability of load cells are crucial for their effective operation. Several factors contribute to maintaining high performance:
Regular calibration is essential to ensure that load cells provide accurate measurements over time. This process involves comparing the load cell's output to known reference weights and making necessary adjustments.
Load cells can be affected by environmental factors such as temperature, humidity, and vibration. Proper selection of load cells for specific environments and the use of compensation techniques help maintain accuracy under varying conditions.
Implementing overload protection mechanisms helps prevent damage to load cells from excessive forces, ensuring long-term reliability and accuracy.
As industries continue to demand higher precision, greater efficiency, and smarter systems, load cell technology is evolving to meet these needs. Future developments may include:
- Integration with IoT (Internet of Things) for real-time monitoring and predictive maintenance
- Advanced materials for improved durability and performance in extreme conditions
- AI-powered signal processing for enhanced accuracy and self-calibration capabilities
- Increased use of MEMS (Micro-Electro-Mechanical Systems) technology for ultra-compact load cells
Load cell sensors have become an integral part of modern industry, scientific research, and everyday life. Their ability to accurately measure force and weight has enabled advancements in fields ranging from industrial automation to healthcare. As technology continues to progress, load cells will undoubtedly play an even more significant role in shaping the future of measurement and control systems.By understanding the principles behind load cell operation, the various types available, and their wide-ranging applications, engineers and decision-makers can make informed choices when selecting and implementing these crucial sensors. Whether it's ensuring the safety of a bridge, optimizing manufacturing processes, or advancing scientific research, load cells will continue to be at the forefront of precision measurement technology.
A1: Load cell accuracy can vary depending on the type and quality of the sensor. High-precision load cells can achieve accuracies of 0.03% to 0.25% of full scale. Factors such as proper calibration, environmental conditions, and the quality of associated electronics all play a role in maintaining accuracy.
A2: While the terms are often used interchangeably, there is a subtle difference. A load cell is a specific type of force sensor that typically measures weight or static forces. Force sensors, in general, can measure a broader range of forces, including dynamic forces. All load cells are force sensors, but not all force sensors are load cells.
A3: Yes, some load cells are designed to measure both tension and compression forces. S-type load cells and shear beam load cells are examples of sensors that can measure forces in both directions. However, some load cells are specifically designed for either tension or compression measurement only.
A4: The lifespan of a load cell can vary greatly depending on its usage, environmental conditions, and quality. Under normal operating conditions and with proper maintenance, a high-quality load cell can last 10 years or more. However, factors such as overloading, harsh environments, or frequent temperature fluctuations can significantly reduce a load cell's lifespan.
A5: Yes, there are alternative technologies for force measurement. Some examples include:
- Hydraulic load cells, which use fluid pressure to measure force
- Pneumatic load cells, which use air pressure for measurement
- Capacitive load cells, which measure changes in electrical capacitance
- Piezoelectric sensors, which generate an electrical charge in response to applied force
Each of these alternatives has its own advantages and limitations, and the choice depends on the specific application requirements.
