Load cells are essential components in various industries, serving as transducers that convert mechanical force into electrical signals. They play a crucial role in applications ranging from industrial weighing to medical devices, automotive testing, and aerospace applications. Understanding how load cells work and their significance can help in selecting the right type for specific applications.

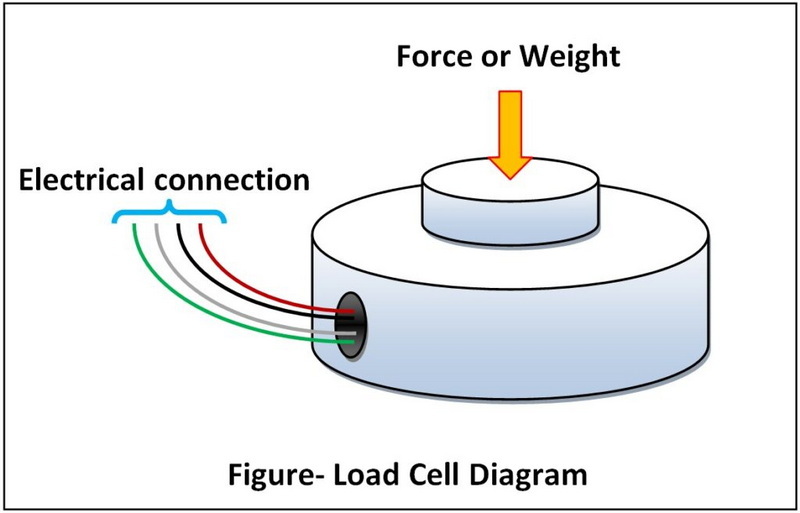

Load cells operate on the principle of strain measurement. When a load is applied, the load cell deforms, causing a change in resistance in the strain gauges bonded to it. This change in resistance is converted into an electrical signal, which can be measured and interpreted.
A typical load cell consists of several key components:

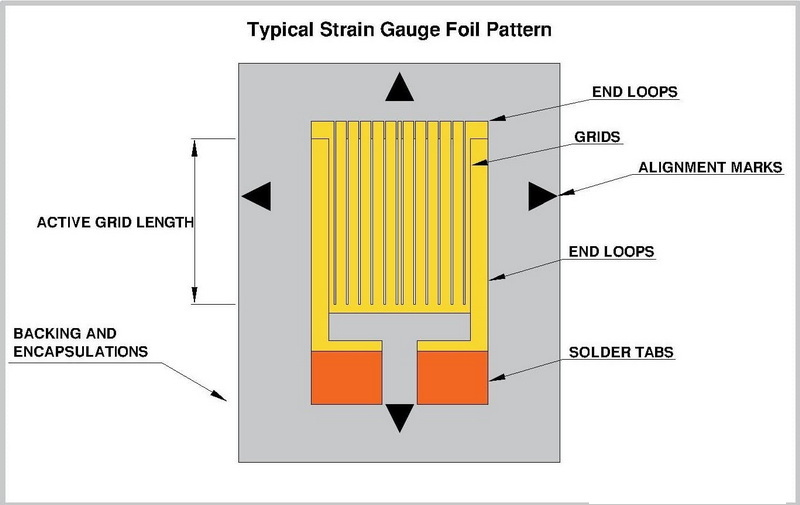

- Strain Gauges: These are the primary sensors that detect deformation.
- Spring Element: This component provides the necessary elasticity to measure the load accurately.
- Housing: Protects the internal components from environmental factors.
There are several types of load cells, each designed for specific applications:

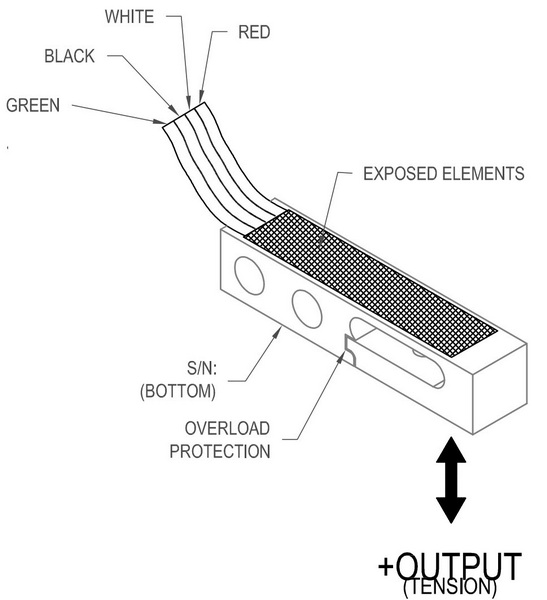

- Strain Gauge Load Cells: The most common type, used in industrial scales.

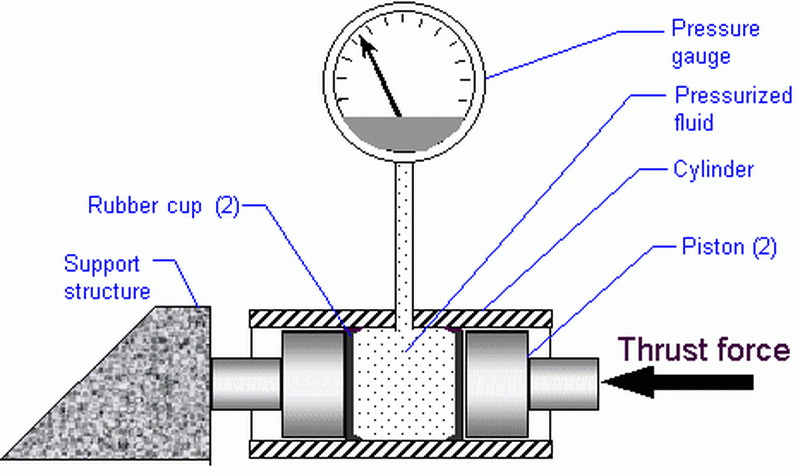

- Hydraulic Load Cells: Utilize fluid pressure to measure weight.
- Pneumatic Load Cells: Use air pressure for measurement.
- Multi-Axis Load Cells: Capable of measuring forces in multiple directions.
Load cells are widely used in industrial settings for weighing materials and products. They provide accurate measurements essential for quality control and inventory management.
In the medical field, load cells are used in devices such as patient scales and surgical instruments, ensuring precise measurements critical for patient care.
Load cells are employed in automotive testing to measure forces during crash tests and performance evaluations, contributing to safety and efficiency.
In aerospace, load cells are used to measure forces on aircraft components, ensuring structural integrity and performance.
Calibration is vital for ensuring the accuracy and reliability of load cells. Regular calibration helps maintain performance standards and compliance with industry regulations.
The calibration process involves applying known weights to the load cell and adjusting the output signal to match the expected values. This process ensures that the load cell provides accurate measurements over time.
Temperature can significantly impact the performance of load cells. Variations in temperature can cause changes in resistance, affecting measurement accuracy.
The material used in the construction of load cells can influence their sensitivity and durability. Common materials include aluminum and stainless steel, each offering different benefits.
Environmental factors such as humidity, dust, and exposure to chemicals can affect load cell performance. Proper housing and protection are essential to mitigate these effects.
Advancements in technology are leading to the development of more compact and efficient load cells. Innovations include the use of new materials and designs that enhance performance.
The integration of load cells with the Internet of Things (IoT) is revolutionizing data collection and analysis. Smart load cells can provide real-time data, improving decision-making processes in various industries.
Load cells are integral to modern measurement systems, providing accurate and reliable data across multiple applications. Understanding their operation, types, and calibration processes is essential for selecting the right load cell for specific needs. As technology advances, load cells will continue to evolve, offering even greater capabilities and integration with smart systems.
A load cell is a transducer that converts mechanical force into an electrical signal, commonly used for measuring weight or force.
Calibration involves applying known weights to the load cell and adjusting the output signal to ensure accuracy.
The main types include strain gauge load cells, hydraulic load cells, pneumatic load cells, and multi-axis load cells.
Load cells are used in industrial weighing, medical devices, automotive testing, and aerospace applications.
Environmental factors such as temperature, humidity, and exposure to chemicals can impact the accuracy and reliability of load cells. Proper protection and calibration are essential to mitigate these effects.
This comprehensive guide provides a detailed understanding of load cells, their operation, applications, and future trends, ensuring that readers are well-informed about this critical technology.
