Load cells are essential components in various industrial applications, primarily used for measuring weight or force. They convert mechanical force into an electrical signal, allowing for precise measurements. The most common type of load cell is the strain gauge load cell, which utilizes strain gauges to detect deformation caused by applied loads. Understanding how many strain gauges are typically used in a load cell is crucial for grasping its functionality and accuracy.

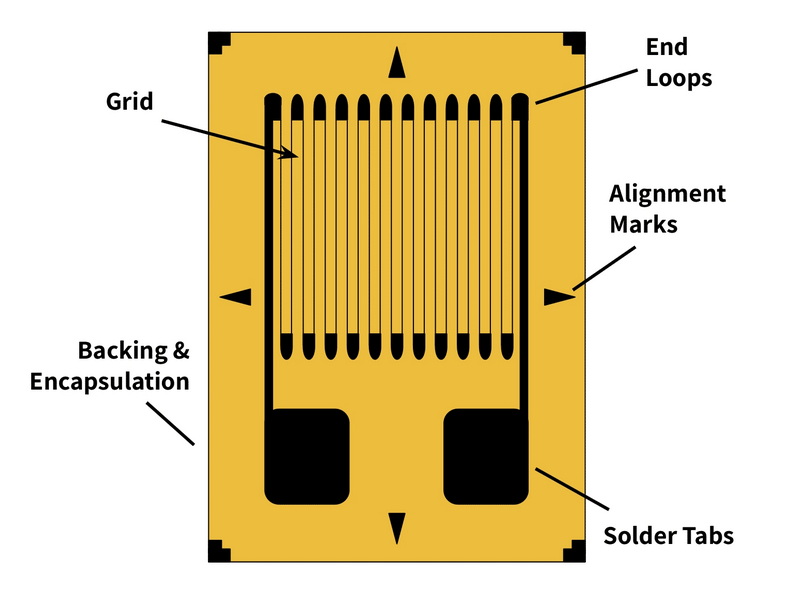

Strain gauges are sensors that measure the amount of deformation or strain experienced by an object when a force is applied. In a load cell, these gauges are strategically placed to maximize sensitivity and accuracy. The number of strain gauges in a load cell can vary depending on the design and intended application. Most commonly, load cells utilize four strain gauges arranged in a Wheatstone bridge configuration, which enhances measurement precision and compensates for temperature variations.

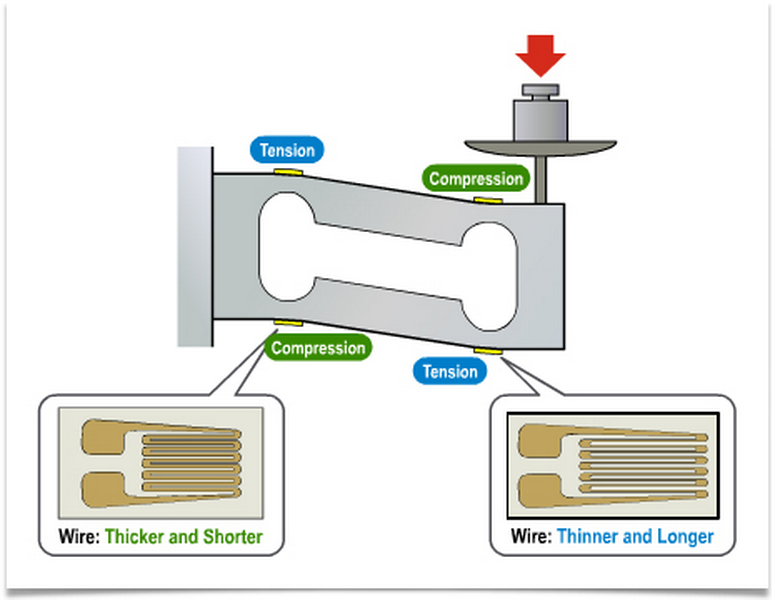

The arrangement of strain gauges is critical. In a typical setup, two gauges are placed in tension and two in compression. This configuration allows the load cell to accurately measure both the magnitude and direction of the applied force. The electrical resistance of the strain gauges changes in response to the deformation, which is then converted into a measurable electrical signal. This process is fundamental in applications ranging from industrial weighing systems to medical devices.
The working principle of strain gauge load cells is based on the relationship between mechanical strain and electrical resistance. When a load is applied to the load cell, it deforms, causing the strain gauges to stretch or compress. This deformation alters the electrical resistance of the gauges, which can be measured and converted into an electrical signal.

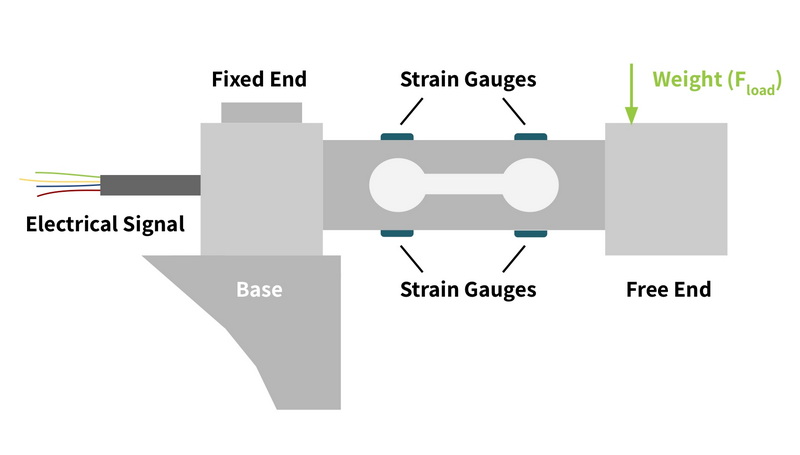

In a typical load cell, the strain gauges are bonded to a metal element that deforms under load. The most common configuration is the Wheatstone bridge, which consists of four resistive elements (the strain gauges). When the load is applied, the bridge becomes unbalanced, and the resulting voltage change is proportional to the applied force. This voltage is then amplified and processed to provide a readable output, such as weight.
The accuracy of a strain gauge load cell is influenced by several factors, including the quality of the strain gauges, the design of the load cell, and the calibration process. Proper calibration is essential to ensure that the load cell provides accurate measurements across its operating range. Regular maintenance and recalibration are recommended, especially in applications where precision is critical.
Strain gauge load cells come in various types, each designed for specific applications. The most common types include:
1. Compression Load Cells: These are designed to measure compressive forces. They are often used in applications such as weighing scales and industrial machinery.
2. Tension Load Cells: These load cells measure tensile forces and are commonly used in applications like hanging scales and material testing.
3. Bending Beam Load Cells: These load cells are designed to measure loads applied perpendicular to the beam. They are often used in platform scales.
4. S-Type Load Cells: These versatile load cells can measure both tension and compression, making them suitable for a wide range of applications.
5. Shear Beam Load Cells: These are used in applications where space is limited and are often found in industrial scales.
Each type of load cell has its advantages and is chosen based on the specific requirements of the application, such as load capacity, environmental conditions, and required accuracy.
Strain gauge load cells are widely used across various industries due to their accuracy and reliability. Some common applications include:
◆ Industrial Weighing: Load cells are integral to industrial scales used in manufacturing and logistics. They ensure accurate weight measurements for inventory management and shipping.
◆ Medical Devices: In the medical field, load cells are used in devices such as patient scales and force measurement systems for rehabilitation.
◆ Automotive Testing: Load cells are employed in testing the strength and durability of automotive components, ensuring safety and compliance with industry standards.
◆ Aerospace: In aerospace applications, load cells are used to measure forces during testing of aircraft components, contributing to safety and performance evaluations.
◆ Construction: Load cells are utilized in construction for monitoring loads on structures, ensuring stability and safety during the building process.
The versatility of strain gauge load cells makes them suitable for a wide range of applications, providing accurate and reliable measurements in various environments.
Calibration is a critical process for ensuring the accuracy of strain gauge load cells. It involves comparing the output of the load cell to a known standard and adjusting it to ensure that it provides accurate measurements. Regular calibration is essential, especially in applications where precision is crucial.
The maintenance of load cells includes regular inspections for signs of wear or damage, ensuring that the strain gauges are properly bonded to the load cell element, and checking for any environmental factors that may affect performance, such as temperature fluctuations or exposure to moisture.
Proper installation is also vital for maintaining the accuracy of load cells. They should be mounted securely and aligned correctly to prevent any external forces from affecting the measurements. Following the manufacturer's guidelines for installation and maintenance can significantly extend the lifespan of the load cell and ensure consistent performance.
In conclusion, strain gauge load cells are vital components in various industries, providing accurate measurements of force and weight. The number of strain gauges used in a load cell typically ranges from two to four, depending on the design and application. Understanding the working principle, types, applications, and maintenance of load cells is essential for anyone involved in fields that require precise measurements.
A strain gauge load cell is a sensor that measures force or weight by converting mechanical strain into an electrical signal.
Most load cells use four strain gauges arranged in a Wheatstone bridge configuration for optimal accuracy.
They are used in industrial weighing, medical devices, automotive testing, aerospace, and construction.
Load cells should be calibrated regularly, especially in applications requiring high precision, typically at least once a year.
Factors include the quality of the strain gauges, environmental conditions, and the calibration process.
This comprehensive overview of strain gauge load cells highlights their importance in various applications and the need for proper maintenance and calibration to ensure accurate measurements.
