In the world of electronics and measurement, load cells play a crucial role in accurately measuring weight. When paired with the HX711 amplifier, they provide a powerful solution for various applications, from industrial scales to DIY projects. This article will guide you through the process of assembling a load cell with the HX711, ensuring you understand each step and its significance.
A load cell is a transducer that converts force or weight into an electrical signal. This signal can then be measured and interpreted by electronic devices. Load cells are widely used in weighing scales, industrial applications, and various measurement systems.
There are several types of load cells, including:
- Strain Gauge Load Cells: The most common type, which uses strain gauges to measure deformation.
- Hydraulic Load Cells: These use fluid pressure to measure weight.
- Pneumatic Load Cells: These measure weight based on air pressure.
Load cells operate on the principle of converting mechanical force into an electrical signal. When weight is applied, the load cell deforms slightly, causing a change in resistance in the strain gauges. This change is then converted into a measurable electrical signal.
The HX711 is a precision 24-bit analog-to-digital converter (ADC) designed specifically for weighing scales and industrial control applications. It amplifies the small voltage signals from load cells, making them readable by microcontrollers like Arduino.
- High precision with 24-bit resolution
- Built-in low-noise amplifier
- Two selectable gain settings
- Simple interface with microcontrollers
The HX711 is commonly used in:
- Digital weighing scales
- Industrial weighing systems
- Load monitoring in various applications
To assemble a load cell with HX711, you will need:
- Load Cell
- HX711 Amplifier Module
- Arduino Board
- Jumper Wires
- Breadboard (optional)
- Power Supply
- Load Cell: The sensor that measures weight.
- HX711: The amplifier that processes the load cell's signal.
- Arduino: The microcontroller that reads the data and performs calculations.

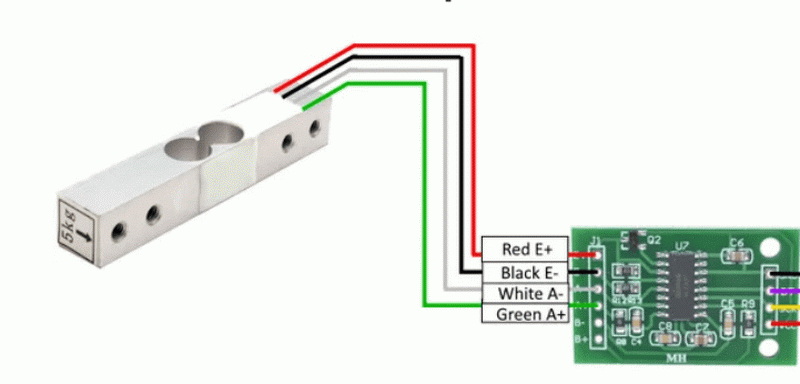

1. Identify the Wires: Load cells typically have four wires: red (excitation+), black (excitation-), white (signal+), and green (signal-).
2. Connect to HX711:
- Red to E+
- Black to E-
- White to A+
- Green to A-
Understanding the color coding is crucial for proper connections. The standard color coding is:
- Red: Excitation+
- Black: Excitation-
- White: Signal+
- Green: Signal-
- Incorrect wire connections can lead to inaccurate readings or damage to components. Always double-check connections before powering up the system.
1. Download and install the Arduino IDE from the official website.
2. Install the HX711 library from the Library Manager.
- The code initializes the HX711 and continuously reads the weight, printing it to the Serial Monitor.
Calibration ensures that the readings from the load cell are accurate. Without proper calibration, the measurements can be significantly off.
1. Place a known weight on the load cell.
2. Adjust the calibration factor in the code until the output matches the known weight.
1. After assembling and programming, place weights on the load cell.
2. Monitor the Serial output to verify accuracy.
- If readings are inconsistent, check the wiring and ensure the load cell is properly calibrated.
Load cells with HX711 are commonly used in digital weighing scales, providing accurate weight measurements for various applications.
In industries, load cells are used for monitoring loads on machinery, ensuring safety and efficiency.
Many hobbyists use load cells and HX711 in projects like smart scales, force measurement systems, and more.
Assembling a load cell with HX711 is a straightforward process that opens up numerous possibilities for accurate weight measurement. By understanding the components, wiring, and programming, you can create a reliable weighing system for various applications. The future of load cell technology looks promising, with advancements leading to even more precise and versatile measurement solutions.
The maximum weight depends on the load cell's specifications. Common load cells can measure anywhere from a few grams to several tons.
You can test the load cell by applying known weights and checking if the readings match.
HX711 is specifically designed for load cells, but similar ADCs can be used for other sensors.
Load cells are used in weighing scales, industrial applications, and various measurement systems.
Check wiring connections, ensure proper calibration, and verify that the load cell is functioning correctly.
