Load cells are essential components in various industrial applications, converting force into measurable electrical signals. Bench testing a load cell is crucial for ensuring its accuracy and reliability. This article provides a comprehensive guide on how to effectively bench test a load cell, covering everything from preparation to troubleshooting.
Load cells come in various types, including strain gauge, hydraulic, and pneumatic load cells. Each type has its unique applications and operational principles.
Load cells operate by converting mechanical force into an electrical signal. When a load is applied, the internal structure of the load cell deforms, causing a change in resistance that can be measured.
Before starting the bench test, gather the necessary tools:
- Digital Multimeter
- Power Supply
- Load Weights
- Connecting Wires
- Safety Gear
Always ensure safety by wearing appropriate gear and following standard operating procedures. Disconnect power sources before making any electrical connections.
Begin with a thorough visual inspection of the load cell. Look for signs of physical damage, such as cracks or corrosion, and ensure that all connections are secure.
1. Connect the Multimeter: Set the multimeter to measure resistance and connect it to the load cell's output terminals.
2. Check Output Resistance: Measure the output resistance and compare it with the specifications in the load cell's datasheet.
3. Input Resistance Testing: Similarly, check the input resistance to ensure it meets the required values.
Calibration is essential for accurate measurements. Follow these steps:
1. Zero Balance Adjustment: Ensure the load cell reads zero when no load is applied.
2. Apply Known Weights: Gradually apply known weights and record the output readings.
3. Adjust Calibration: If the readings are off, adjust the calibration settings according to the manufacturer's guidelines.

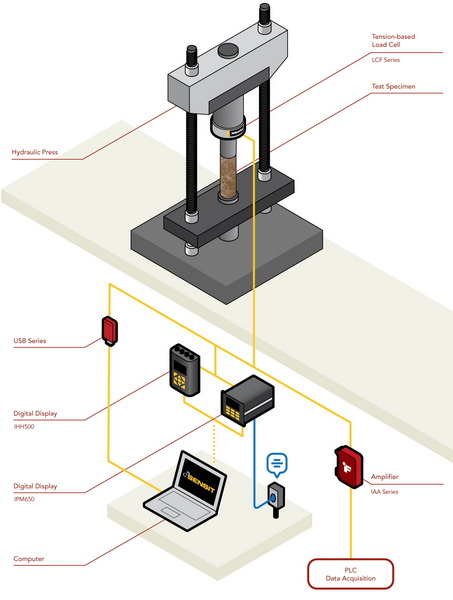

Perform load testing by applying a known weight to the load cell and observing the output. This step verifies the load cell's performance under actual working conditions.
During testing, you may encounter various issues such as:
- Inconsistent readings
- No output signal
- Overloading
- Inconsistent Readings: Check for loose connections or damaged wiring.
- No Output Signal: Ensure the load cell is powered and properly connected.
- Overloading: Verify that the applied load does not exceed the load cell's capacity.
Bench testing a load cell is a vital process that ensures its functionality and accuracy. By following the outlined steps, you can effectively test and troubleshoot load cells, ensuring reliable performance in your applications.
A load cell is a transducer that converts force or weight into an electrical signal, commonly used in weighing systems.
Testing a load cell involves visual inspection, electrical testing with a multimeter, calibration, and load testing.
Essential tools include a digital multimeter, power supply, load weights, and connecting wires.
Load cells should be tested regularly, especially in high-use applications, to ensure accuracy and reliability.
Signs of a faulty load cell include inconsistent readings, no output signal, and physical damage.
This article provides a detailed overview of bench testing a load cell, ensuring that you have the knowledge and tools necessary for effective testing and troubleshooting.
