Load cells are essential devices used in various industries for measuring force or weight. They convert mechanical force into an electrical signal, which can then be measured and recorded. Futek is a leading manufacturer of load cells, known for their precision and reliability. Proper calibration of these devices is crucial to ensure accurate measurements, which can significantly impact operations in fields such as manufacturing, healthcare, and research.
A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied, the strain gauge deforms, causing a change in its electrical resistance. This change is then converted into a measurable output signal.
Load cells come in various types, including compression, tension, and shear beam load cells, each suited for specific applications. For instance, compression load cells are often used in weighing scales, while tension load cells are used in applications like crane scales.
Calibration is the process of adjusting the output of a load cell to ensure it accurately reflects the applied load. Without proper calibration, load cells can produce erroneous readings, leading to significant consequences, such as product defects, safety hazards, and financial losses. Regular calibration helps maintain the integrity of measurements and ensures compliance with industry standards.

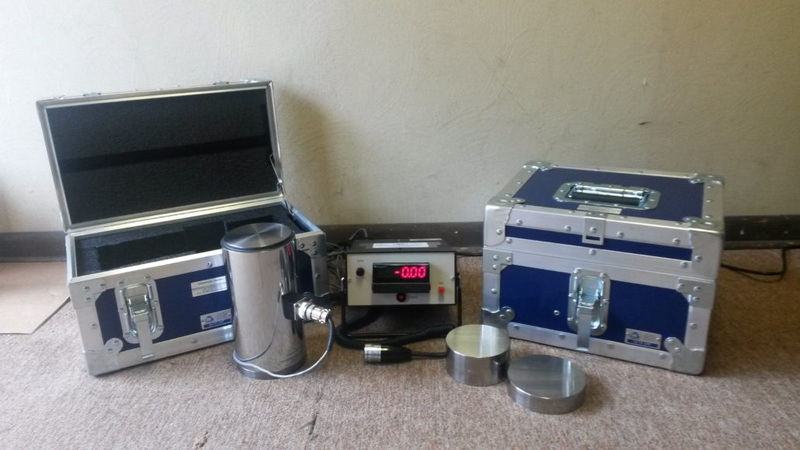

Before starting the calibration process, it is essential to gather the necessary tools and equipment. This typically includes calibration weights, a multimeter, and a computer with calibration software. Additionally, ensure that the calibration area is free from vibrations and temperature fluctuations, as these factors can affect the accuracy of measurements.
Safety is paramount during calibration. Always wear appropriate personal protective equipment (PPE) and ensure that the load cell is securely mounted to prevent accidents.
1. Zeroing the Load Cell: Begin by ensuring that the load cell is unloaded. Record the output signal, which should ideally be zero. If it is not, adjust the zero offset in the calibration software.
2. Applying Calibration Weights: Gradually apply known weights to the load cell. Start with a small weight and increase it incrementally. For each weight, record the output signal.
3. Creating a Calibration Curve: Plot the recorded output signals against the applied weights to create a calibration curve. This curve helps visualize the relationship between the load and the output signal.
4. Adjusting Sensitivity: If the calibration curve shows non-linearity, adjust the sensitivity of the load cell in the calibration software to correct the slope of the curve.
5. Final Verification: After adjustments, reapply the calibration weights to verify that the output signals match the expected values. If discrepancies remain, repeat the calibration process.
There are several methods for calibrating load cells, with the two-point calibration being the most common. This method involves applying two known weights at different points on the load cell's range. The advantages of this method include simplicity and effectiveness in correcting both the slope and offset errors.
Other techniques include multi-point calibration, which uses multiple weights to create a more detailed calibration curve, and dynamic calibration, which tests the load cell under actual operating conditions.
During calibration, you may encounter various issues, such as inconsistent readings or failure to zero. Common troubleshooting steps include:
- Check Connections: Ensure that all electrical connections are secure and free from corrosion.
- Inspect for Damage: Look for physical damage to the load cell, such as cracks or dents, which can affect performance.
- Environmental Factors: Ensure that the calibration environment is stable, as temperature and humidity can impact readings.
To maintain the accuracy of load cells, regular maintenance is essential. This includes periodic inspections for physical damage, cleaning to prevent debris buildup, and recalibrating as needed. It is recommended to calibrate load cells at least once a year, or more frequently if they are used in harsh environments.
Proper calibration of Futek load cells is vital for ensuring accurate measurements and maintaining operational efficiency. By following the outlined steps and best practices, users can achieve reliable performance from their load cells. Regular calibration not only enhances measurement accuracy but also extends the lifespan of the equipment.
The two-point calibration method is often recommended for its simplicity and effectiveness in correcting both slope and offset errors.
It is advisable to calibrate load cells at least once a year, or more frequently in demanding environments.
Essential tools include calibration weights, a multimeter, and calibration software.
Yes, with the right tools and knowledge, you can calibrate a load cell yourself. However, professional calibration services are recommended for critical applications.
Signs include inconsistent readings, failure to zero, and noticeable changes in measurement accuracy. Regular checks can help identify these issues early.
This article provides a comprehensive guide to calibrating Futek load cells, ensuring that users have the necessary information to maintain accuracy and reliability in their measurements.
