Load cells are essential components in various applications, particularly in weighing systems. They convert a force into an electrical signal, allowing for precise weight measurements. However, to ensure accurate readings, proper calibration is crucial. This article will guide you through the process of calibrating a load cell using an Arduino Uno, providing a comprehensive understanding of the components involved and the steps necessary for successful calibration.

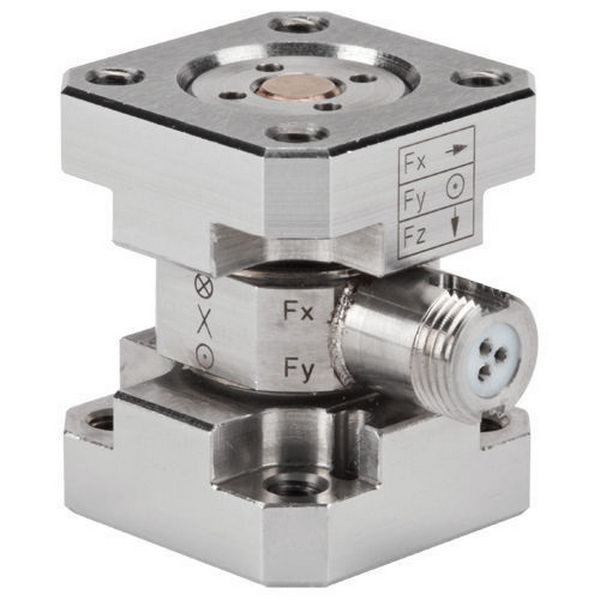

A load cell is a transducer that converts mechanical force into an electrical signal. It is widely used in industrial applications, weighing scales, and various measurement systems. Load cells come in different types, including strain gauge, hydraulic, and pneumatic load cells, each suited for specific applications.
1. Strain Gauge Load Cells: The most common type, utilizing strain gauges to measure deformation.
2. Hydraulic Load Cells: Use fluid pressure to measure weight, suitable for heavy loads.
3. Pneumatic Load Cells: Operate on air pressure, often used in environments where electrical devices are not suitable.
Load cells operate on the principle of converting force into an electrical signal. When a load is applied, the internal structure of the load cell deforms, causing a change in resistance in the strain gauges. This change is then converted into a voltage signal, which can be read by a microcontroller like the Arduino.
To calibrate a load cell with an Arduino Uno, you will need the following components:
- Arduino Uno: The microcontroller that will process the signals.
- HX711 Module: An amplifier and ADC (Analog to Digital Converter) specifically designed for load cells.
- Load Cell: The sensor that measures weight.
- Breadboard and Jumper Wires: For making connections.
- Known Weights: For calibration purposes.
1. Connect the Load Cell to the HX711 Module: The load cell typically has four wires: red (excitation+), black (excitation-), white (signal+), and green (signal-). Connect these to the corresponding terminals on the HX711.
2. Connect the HX711 to the Arduino: Use jumper wires to connect the HX711 to the Arduino. The typical connections are:
- VCC to 5V
- GND to GND
- DT (Data) to a digital pin (e.g., D2)
- SCK (Clock) to another digital pin (e.g., D3)
The Arduino Integrated Development Environment (IDE) is where you will write and upload your code to the Arduino board. It is user-friendly and supports various libraries for different components.
- HX711.h: This library simplifies the interaction with the HX711 module.
- scale.begin(2, 3): Initializes the scale with the specified data and clock pins.
- scale.set_scale(): Sets the calibration factor, which you will adjust later.
- scale.tare(): Resets the scale to zero, ensuring accurate measurements.

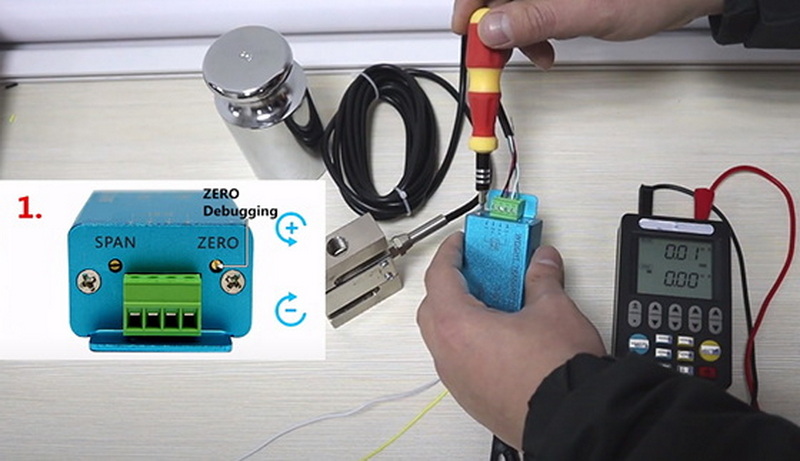

1. Tare the Scale: Ensure no weight is on the load cell and call the `tare()` function to reset the scale.
2. Apply a Known Weight: Place a known weight on the load cell. This weight should be within the load cell's capacity.
3. Read the Output: Use the Serial Monitor to read the output value corresponding to the known weight.
4. Calculate the Calibration Factor: Adjust the calibration factor in the code until the output matches the known weight.
Using known weights is crucial for accurate calibration. It ensures that the load cell's readings are aligned with real-world measurements, allowing for reliable data collection.

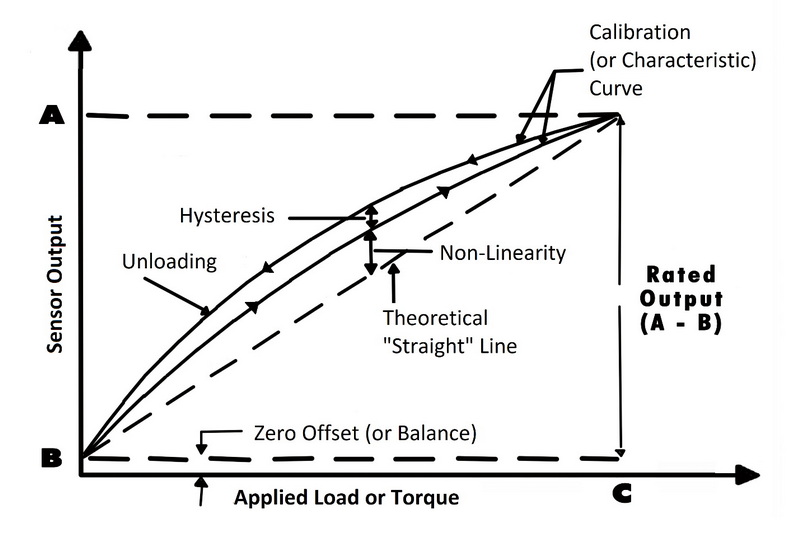

The calibration factor is a multiplier that converts the raw data from the load cell into meaningful weight measurements. Adjust this factor based on your tests until the output matches the known weight.
After calibration, test the setup by placing various known weights on the load cell. The readings should be consistent and accurate. If discrepancies arise, revisit the calibration process.
- Inconsistent Readings: Check the wiring and ensure all connections are secure.
- No Output: Verify that the HX711 is powered correctly and that the Arduino is functioning.
- Incorrect Weight Readings: Reassess the calibration factor and repeat the calibration process.
Calibrated load cells have numerous applications, including:
- Industrial Weighing Systems: Used in factories for precise weight measurements.
- Medical Equipment: Essential in devices like hospital scales.
- Agricultural Scales: Used for weighing produce and livestock.
Calibrating a load cell with an Arduino Uno is a straightforward process that enhances the accuracy of weight measurements. By following the outlined steps, you can successfully set up and calibrate a load cell for various applications. Accurate calibration is vital for ensuring reliable data, making it an essential skill for anyone working with load cells.
The HX711 is a precision 24-bit analog-to-digital converter designed for weigh scales and industrial control applications. It is commonly used with load cells to measure weight.
Select a load cell based on the weight range you need to measure, the environment it will be used in, and the required accuracy.
While the Arduino Uno is commonly used, other boards like the Arduino Nano or Mega can also be used, provided they have sufficient pins and processing power.
Common mistakes include incorrect wiring, not taring the scale before measurement, and using inaccurate known weights.
To improve accuracy, ensure stable connections, use high-quality components, and perform multiple readings to average out any noise in the data.
