Load cells are critical components in various weighing applications, from industrial scales to laboratory balances. Proper calibration of load cells ensures accurate weight measurements, which is essential for quality control, compliance with regulations, and operational efficiency. This article will explore the importance of load cell calibration, the methods used, and a step-by-step guide to ensure your load cells are functioning correctly.

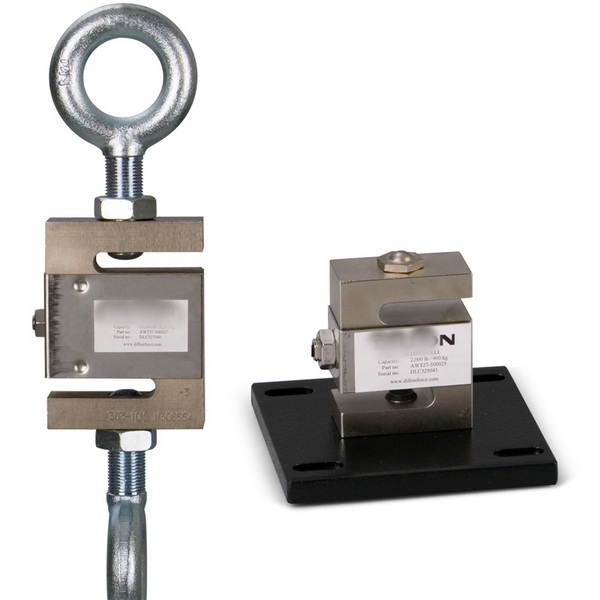

A load cell is a transducer that converts a force into an electrical signal. The most common types of load cells include strain gauge load cells, hydraulic load cells, and pneumatic load cells. Each type operates on different principles but serves the same fundamental purpose: to measure weight or force accurately.
- Strain Gauge Load Cells: These are the most widely used load cells, utilizing strain gauges to measure deformation under load.
- Hydraulic Load Cells: These use fluid pressure to measure weight and are often used in heavy-duty applications.
- Pneumatic Load Cells: These measure weight by the pressure of air in a chamber and are suitable for specific industrial applications.
Calibration is the process of adjusting the output of a load cell to ensure it accurately reflects the applied force. Without proper calibration, load cells can produce erroneous readings, leading to significant operational issues.
Accurate measurements are crucial in industries such as pharmaceuticals, food processing, and manufacturing. Inaccurate readings can result in product loss, regulatory fines, and compromised safety.
Failing to calibrate load cells can lead to:
- Financial losses due to incorrect measurements
- Safety hazards in industrial applications
- Legal issues from non-compliance with industry standards
There are several methods for calibrating load cells, each with its advantages and applications.
This is the most accurate method, involving the application of known weights to the load cell. The output signal is adjusted to match the applied force, ensuring high precision.
This method involves setting the load cell's output to zero when no force is applied. It is essential for ensuring that any additional weight is measured accurately.
Other calibration methods may include using reference standards or electronic calibration devices, depending on the application and required accuracy.
1. Inspect the Load Cell: Ensure that the load cell is clean and free from any obstructions.
2. Gather Calibration Weights: Use certified weights that are appropriate for the load cell's capacity.

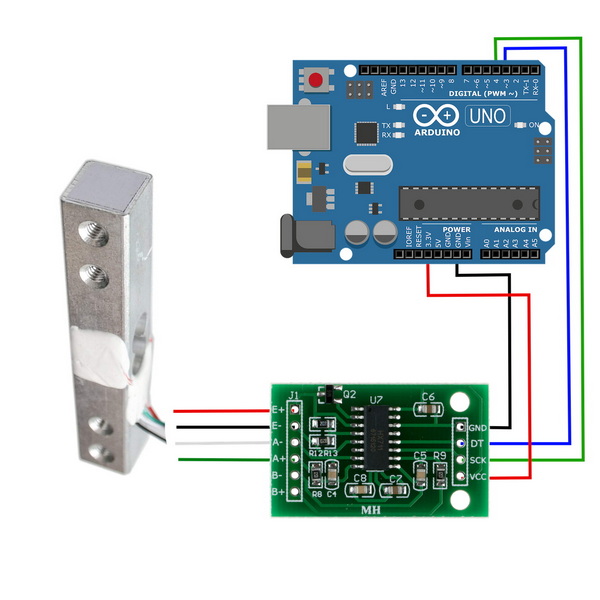

1. Connect the Load Cell: Ensure that the load cell is properly connected to the indicator or data acquisition system.
2. Set the Zero Point: Perform a zero calibration to ensure the load cell reads zero when unloaded.
3. Apply Calibration Weights: Gradually apply known weights and record the output signal for each weight.
4. Adjust the Output: Use the recorded data to adjust the load cell's output to match the known weights.
After calibration, it is crucial to verify the results by applying additional weights and checking the output against expected values. This step ensures that the calibration is accurate and reliable.
Common signs of calibration errors include:
- Inconsistent readings
- Significant deviations from expected values
- Slow response times
- Recalibrate: If errors are detected, repeat the calibration process.
- Check Connections: Ensure all electrical connections are secure and free from corrosion.
- Inspect for Damage: Look for physical damage to the load cell or associated equipment.
Regular maintenance is essential for ensuring the long-term accuracy of load cells. This includes:
- Performing routine calibrations
- Keeping the load cell clean and free from debris
- Monitoring environmental conditions, such as temperature and humidity, which can affect performance.
Calibrating load cells is a vital process that ensures accurate weight measurements across various applications. By understanding the importance of calibration, the methods available, and following a systematic approach, you can maintain the reliability and accuracy of your load cells. Implementing best practices in calibration and maintenance will not only enhance operational efficiency but also ensure compliance with industry standards.
A load cell is a device that converts a force or weight into an electrical signal, allowing for accurate measurement of weight in various applications.
Load cells should be calibrated regularly, typically every six months to a year, depending on usage and industry standards.
Signs include inconsistent readings, significant deviations from expected values, and slow response times.
Yes, with the right tools and knowledge, you can calibrate a load cell yourself. However, for high-precision applications, it is recommended to seek professional calibration services.
Essential tools include calibration weights, a digital indicator or data acquisition system, and possibly a calibration device or software for more advanced setups.
This article provides a comprehensive overview of load cell calibration, ensuring that you have the knowledge and tools necessary to maintain accurate and reliable measurements in your applications.
