Load cells are essential components in various applications, particularly in weighing systems. They convert force or weight into an electrical signal, which can be measured and interpreted by electronic devices. Calibration is crucial for ensuring that the measurements provided by load cells are accurate and reliable. This article will guide you through the process of calibrating a load cell using an Arduino and the HX711 amplifier, a popular choice for such applications.

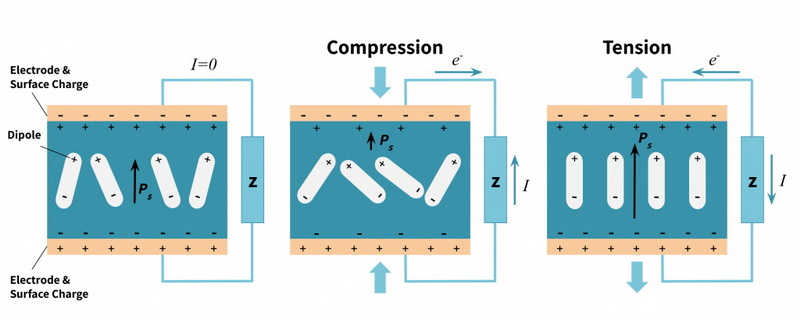

A load cell is a transducer that converts a force into an electrical signal. There are several types of load cells, including strain gauge, hydraulic, and pneumatic load cells. The most common type used in Arduino projects is the strain gauge load cell, which operates on the principle of resistance change when a force is applied.
Load cells are widely used in various industries, including manufacturing, transportation, and healthcare, for applications such as weighing scales, force measurement, and load monitoring.
To calibrate a load cell using Arduino, you will need the following components:
◆ Arduino Board: The microcontroller that will process the signals from the load cell.
◆ HX711 Amplifier: A precision 24-bit analog-to-digital converter (ADC) that amplifies the small signals from the load cell.

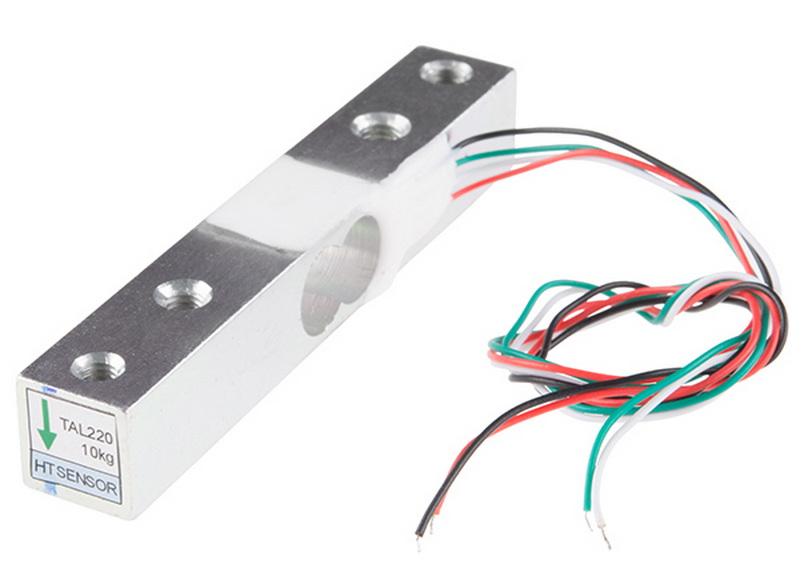

◆ Load Cell: The sensor that measures weight or force.
◆ Breadboard and Jumper Wires: For making connections between components.
◆ Known Weights: To calibrate the load cell accurately.
Each component plays a vital role in the calibration process. The Arduino processes the data, the HX711 amplifies the signal, and the load cell measures the weight.

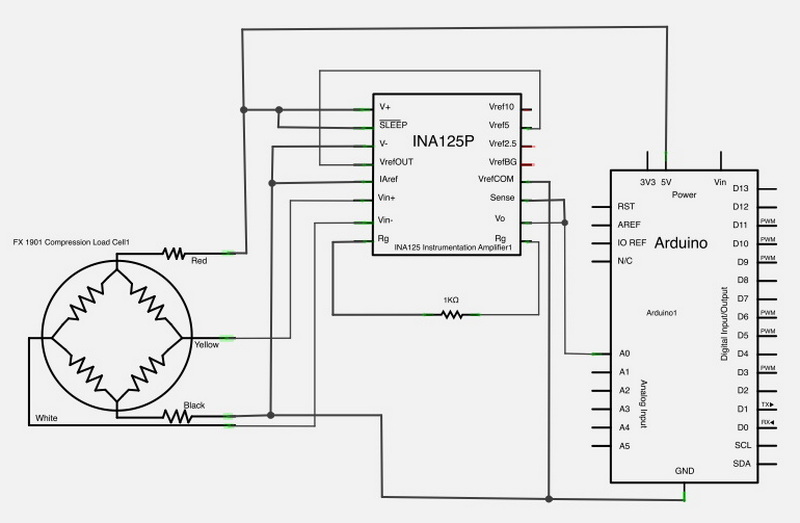

Wiring the load cell to the Arduino is a straightforward process. Follow these steps:
1. Connect the load cell to the HX711 module according to the wiring diagram.
2. Connect the HX711 to the Arduino. Typically, the connections are as follows:
◆ VCC to 5V
◆ GND to Ground
◆ DT (Data) to a digital pin (e.g., D2)
◆ SCK (Clock) to another digital pin (e.g., D3)
Common mistakes include incorrect wiring of the load cell and HX711, which can lead to inaccurate readings. Always double-check your connections before powering up the system.
Calibration involves using known weights to determine the calibration factor. Follow these steps:
1. Place a known weight on the load cell.
2. Note the reading displayed on the Serial Monitor.
3. Calculate the calibration factor using the formula:
4. Update the set_scale() function in your code with the new calibration factor.
For example, if you placed a 1 kg weight and the load cell reading was 500, your calibration factor would be:
Calibration Factor=1 kg500=0.002Calibration Factor=5001 kg=0.002
After calibration, it’s essential to test the setup. Place various known weights on the load cell and check if the readings match the expected values. If you notice discrepancies, consider the following troubleshooting tips:
◆ Ensure all connections are secure.
◆ Check for any mechanical issues with the load cell.
◆ Revisit the calibration process to ensure accuracy.
Load cells can be used in various projects, such as:
◆ Digital Weighing Scales: Create a simple scale to measure weight.
◆ Force Measurement Systems: Measure the force applied in different applications.
◆ Industrial Automation: Monitor loads in manufacturing processes.
Calibrating a load cell using Arduino is a rewarding project that enhances your understanding of electronics and measurement systems. By following the steps outlined in this article, you can create an accurate weighing system suitable for various applications. Experiment with different projects and continue to explore the capabilities of load cells and Arduino.
The HX711 amplifies the small signals from the load cell, allowing the Arduino to read accurate weight measurements.
Consider the weight range, accuracy, and type of load cell that best fits your application.
Yes, but you will need to manage the connections and possibly use multiplexers to read multiple load cells.
Common mistakes include incorrect wiring, not using known weights for calibration, and not accounting for environmental factors.
Ensure proper calibration, minimize vibrations, and use high-quality components to enhance measurement accuracy.
This comprehensive guide should provide you with the knowledge and tools necessary to successfully calibrate a load cell using Arduino. Happy tinkering!
