Load cells are essential components in various applications, particularly in weighing systems. They convert force or weight into an electrical signal, which can be measured and interpreted by microcontrollers like Arduino. The HX711 is a specialized analog-to-digital converter (ADC) designed for weighing scales and industrial control applications. This article will guide you through the process of calibrating a load cell using Arduino and the HX711 module, ensuring accurate weight measurements.
A load cell is a transducer that converts a force into an electrical signal. It is commonly used in scales and industrial applications to measure weight or force. Load cells can be classified into several types, including strain gauge, hydraulic, and pneumatic load cells.
- Strain Gauge Load Cells: These are the most common type, using strain gauges to measure deformation.
- Hydraulic Load Cells: These use fluid pressure to measure weight.
- Pneumatic Load Cells: These measure weight based on air pressure.
Load cells operate on the principle of strain gauges, which change resistance when stretched or compressed. This change in resistance is converted into an electrical signal, which can be read by a microcontroller.
The HX711 is a precision 24-bit ADC designed for weigh scales and industrial control applications. It provides a simple interface for connecting load cells to microcontrollers like Arduino.
- High precision and low noise
- Built-in programmable gain amplifier
- Simple two-wire interface
The HX711 amplifies the small voltage signals from the load cell and converts them into digital signals that can be processed by the Arduino.
To calibrate a load cell with Arduino and HX711, you will need the following components:
- Load Cell
- HX711 Module
- Arduino Board (e.g., Arduino Uno)
- Jumper Wires
- Breadboard (optional)
- Known Weights for Calibration

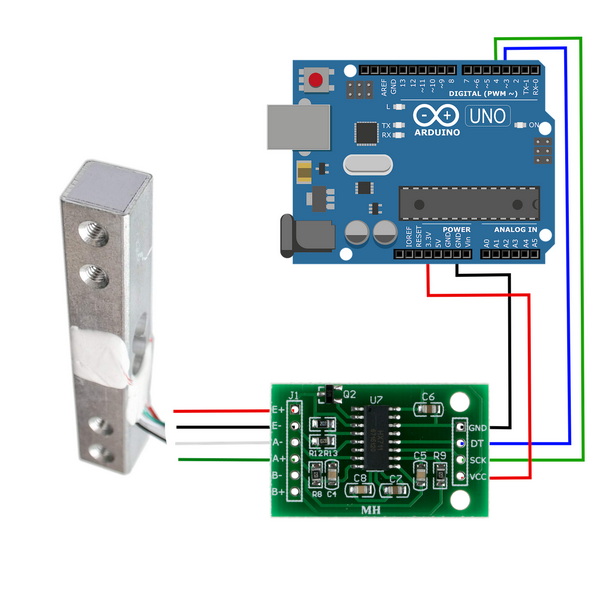

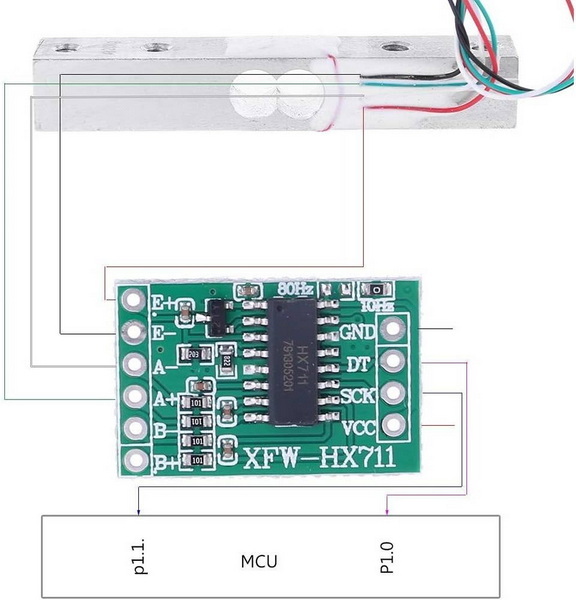

1. Connect the load cell to the HX711 module. The load cell typically has four wires: red (excitation+), black (excitation-), white (signal+), and green (signal-).
2. Connect the HX711 to the Arduino:
- VCC to 5V
- GND to GND
- DT (Data) to a digital pin (e.g., D2)
- SCK (Clock) to another digital pin (e.g., D3)
1. Install the Arduino IDE on your computer.
2. Install the HX711 library from the Library Manager.
The code initializes the HX711, sets the scale to zero, and continuously reads the weight, printing it to the Serial Monitor.
1. Place a known weight on the load cell.
2. Adjust the calibration factor in the code until the output matches the known weight.
3. Repeat the process for accuracy.
The calibration factor is crucial for accurate weight measurements. It compensates for variations in load cell sensitivity and environmental factors.
- Use known weights that are close to the expected measurement range.
- Ensure the load cell is stable and not subject to vibrations during calibration.
After calibration, test the setup by placing various known weights on the load cell and observing the output on the Serial Monitor.
- If the readings are inconsistent, check the wiring and ensure the load cell is properly connected.
- If the output is zero, ensure the tare function is called after placing the load.
Load cells are used in various applications, including:
- Weighing scales in retail and industrial settings
- Force measurement in testing applications
- Load monitoring in construction and transportation
Load cells can be integrated into various DIY projects, such as:
- Smart weighing scales
- Force measurement devices
- Automated feeding systems
Calibrating a load cell with Arduino and HX711 is a straightforward process that can significantly enhance the accuracy of weight measurements. By following the steps outlined in this article, you can create a reliable weighing system for various applications.
The maximum weight a load cell can measure depends on its specifications. Common load cells can measure from a few grams to several tons.
If the load cell consistently provides incorrect readings or shows no response when weight is applied, it may be faulty.
Yes, as long as the load cell's output is compatible with the HX711's input specifications.
Analog load cells provide a continuous voltage output, while digital load cells output a digital signal after processing.
To improve accuracy, ensure proper calibration, minimize environmental disturbances, and use high-quality components.
This article provides a comprehensive guide to calibrating a load cell with Arduino and HX711, ensuring you have the knowledge and tools to create an effective weighing system.
