Load cells are crucial components in various industries, from manufacturing to aerospace, playing a vital role in measuring force and weight accurately. To ensure precise measurements, proper calibration of load cells is essential. This comprehensive guide will walk you through the process of calibrating load cells, exploring different techniques, tools, and applications while addressing common troubleshooting issues.
Before diving into the calibration process, it's important to understand what load cells are and how they function. Load cells are transducers that convert mechanical force into electrical signals. They are designed to measure weight, force, or pressure and are widely used in scales, industrial processes, and testing equipment.

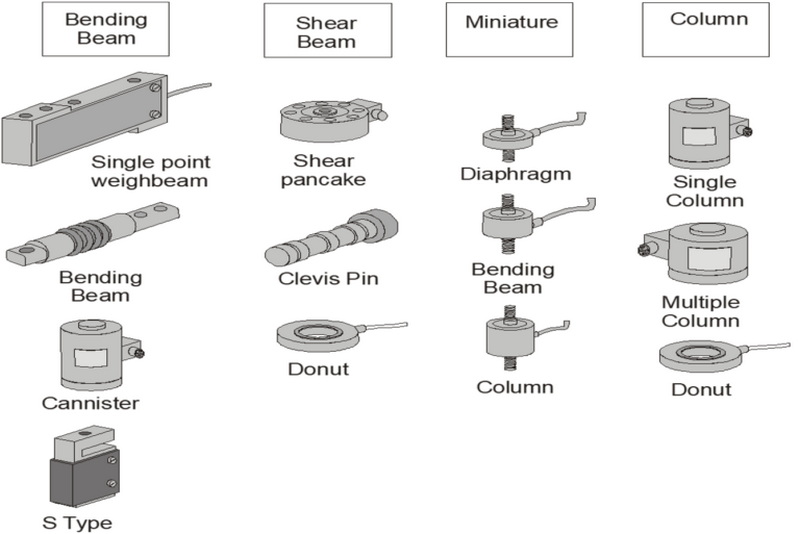

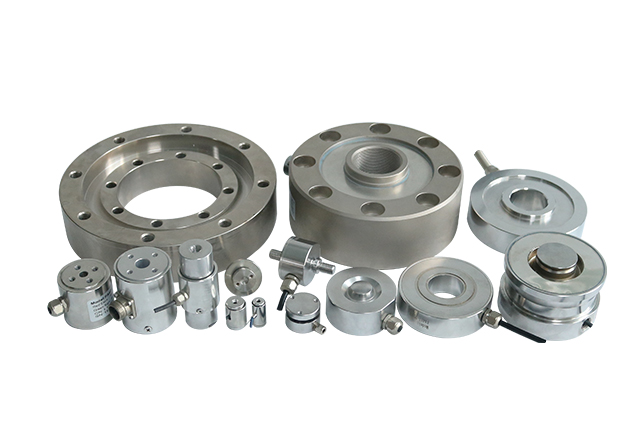

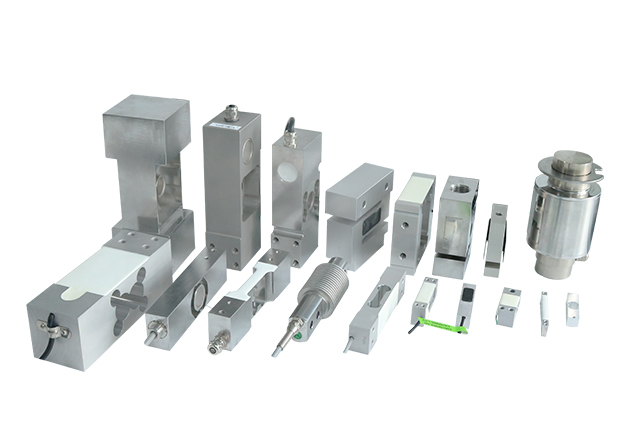

There are several types of load cells, each suited for different applications:
1. Strain gauge load cells
2. Hydraulic load cells
3. Pneumatic load cells
4. Capacitive load cells
5. Piezoelectric load cells
Each type has its unique characteristics and calibration requirements, which we'll explore throughout this article.
Calibration is a critical process that ensures load cells provide accurate and reliable measurements. Over time, factors such as temperature changes, mechanical stress, and environmental conditions can affect a load cell's performance. Regular calibration helps maintain precision and extends the life of the load cell.
1. Improved accuracy in weight and force measurements
2. Compliance with industry standards and regulations
3. Enhanced product quality and consistency
4. Reduced waste and operational costs
5. Increased safety in critical applications
The calibration process involves comparing the load cell's output to known reference weights or forces. Here's a step-by-step guide to calibrating a load cell:
- Clean the load cell and mounting surfaces
- Allow the load cell to acclimate to the environment
- Gather necessary calibration tools and equipment
- Remove all weight from the load cell
- Adjust the zero balance to ensure a zero reading with no load
- Gradually apply known weights or forces to the load cell
- Record the output signal for each weight increment
- Plot the applied weight against the output signal
- Analyze the linearity and repeatability of the measurements
- Use calibration software or manual adjustments to fine-tune the load cell's response
- Ensure the output matches the expected values for each known weight
- Repeat the process with different weights to verify calibration accuracy
- Document the calibration results for future reference
To properly calibrate a load cell, you'll need the following tools and equipment:
1. Calibration weights or force standards
2. Calibration frame or test stand
3. Digital indicator or data acquisition system
4. Calibration software
5. Temperature and humidity monitoring devices
6. Leveling tools
7. Cleaning supplies
Calibration weights should be traceable to national or international standards. The choice of weights depends on the load cell's capacity and the required accuracy level. For high-precision applications, deadweight machines or hydraulic force standards may be used.
Modern calibration processes often utilize specialized software to streamline the procedure and improve accuracy. These programs can:
- Automate data collection and analysis
- Generate calibration curves
- Calculate uncertainty and error
- Produce calibration certificates
Different calibration techniques may be employed depending on the type of load cell and the application requirements:
This method involves applying known weights directly to the load cell. It's suitable for smaller capacity load cells and provides high accuracy.
In this technique, the load cell is calibrated against a reference load cell of known accuracy. This method is useful for high-capacity load cells where direct loading is impractical.
Hydraulic systems can generate precise forces for calibrating high-capacity load cells. This method offers good control and repeatability.
These specialized machines use precisely calibrated masses to apply known forces. They provide the highest level of accuracy and are often used in calibration laboratories.
Proper calibration is crucial in various industries and applications:
Accurate weight measurements are essential in manufacturing, logistics, and quality control processes.
Load cells are used in aircraft weight and balance systems, requiring precise calibration to ensure flight safety.
Many medical devices, such as patient lifts and infusion pumps, rely on accurately calibrated load cells.
Scientific experiments and material testing often require highly accurate force measurements.
Load cells are used in grain silos, livestock scales, and other agricultural applications where accurate weight measurements are crucial.
Several international standards govern load cell calibration practices:
1. ASTM E74: Standard Practice of Calibration of Force-Measuring Instruments for Verifying the Force Indication of Testing Machines
2. ISO 376: Metallic materials - Calibration of force-proving instruments used for the verification of uniaxial testing machines
3. OIML R60: Metrological regulation for load cells
Adhering to these standards ensures consistency and reliability in load cell measurements across different industries and applications.
Even with careful calibration, issues may arise. Here are some common problems and their solutions:
- Cause: Mechanical damage or overloading
- Solution: Check for physical damage and recalibrate. Replace the load cell if necessary.
- Cause: Temperature changes or creep
- Solution: Allow for proper warm-up time and use temperature compensation techniques.
- Cause: Mechanical stress or poor mounting
- Solution: Ensure proper installation and consider using higher quality load cells.
- Cause: Electrical interference or loose connections
- Solution: Check wiring, use shielded cables, and ensure proper grounding.
- Cause: Residual stress or environmental factors
- Solution: Perform regular zero balance adjustments and maintain a stable environment.
To ensure ongoing accuracy, consider the following best practices:
1. Establish a regular calibration schedule
2. Maintain detailed calibration records
3. Train personnel in proper calibration techniques
4. Monitor environmental conditions
5. Use high-quality calibration equipment
6. Implement a quality control system
Proper calibration of load cells is essential for accurate force and weight measurements across various industries. By understanding the calibration process, utilizing appropriate tools and techniques, and adhering to industry standards, you can ensure the reliability and longevity of your load cell systems. Regular maintenance and troubleshooting will help maintain calibration accuracy and optimize performance in your specific applications.
A1: The frequency of calibration depends on factors such as usage, environmental conditions, and industry requirements. Generally, load cells should be calibrated at least once a year, but more frequent calibration may be necessary for critical applications or harsh environments.
A2: While it's possible to calibrate load cells in-house with proper equipment and training, professional calibration services offer higher accuracy and traceability to national standards. For critical applications or high-precision requirements, it's recommended to use a certified calibration laboratory.
A3: Verification is the process of checking if a load cell meets specified accuracy requirements, while calibration involves adjusting the load cell to ensure it provides accurate measurements across its entire range. Calibration typically includes verification as part of the process.
A4: Temperature changes can significantly impact load cell performance, causing zero drift and sensitivity changes. Many load cells have built-in temperature compensation, but it's important to calibrate load cells at their operating temperature or use temperature correction factors.
A5: NIST (National Institute of Standards and Technology) traceability means that the calibration standards used can be traced back to the official U.S. standards maintained by NIST. This traceability ensures the accuracy and reliability of measurements across different industries and applications, providing confidence in the calibration results.
