Load cells are essential components in various industrial applications, converting physical force into measurable electrical signals. They play a crucial role in ensuring accurate weight measurements in scales and other weighing systems. Understanding how to check for a bad load cell is vital for maintaining the integrity of these systems. This article will explore the functionality of load cells, signs of failure, testing methods, troubleshooting techniques, and maintenance practices.
Load cells come in various types, including strain gauge, hydraulic, and pneumatic load cells. Each type operates on different principles but serves the same fundamental purpose: to measure weight or force. Strain gauge load cells, the most common type, work by detecting the deformation of a material when a load is applied. This deformation changes the electrical resistance, which can be measured and converted into a weight reading.
Identifying a malfunctioning load cell is crucial for maintaining accurate measurements. Common symptoms of a bad load cell include erratic readings, failure to return to zero, and inconsistent output. These issues can arise from various factors, including mechanical damage, electrical faults, or environmental influences. If left unchecked, a faulty load cell can lead to significant inaccuracies in weight measurements, affecting production and quality control processes.
To determine if a load cell is functioning correctly, specific tools and methods are required. A digital multimeter is essential for testing electrical properties. Here's a step-by-step guide to testing a load cell:
1. Preparation: Ensure the load cell is disconnected from any power source and weighing system.
2. Visual Inspection: Check for any visible signs of damage, such as frayed wires or physical deformities.

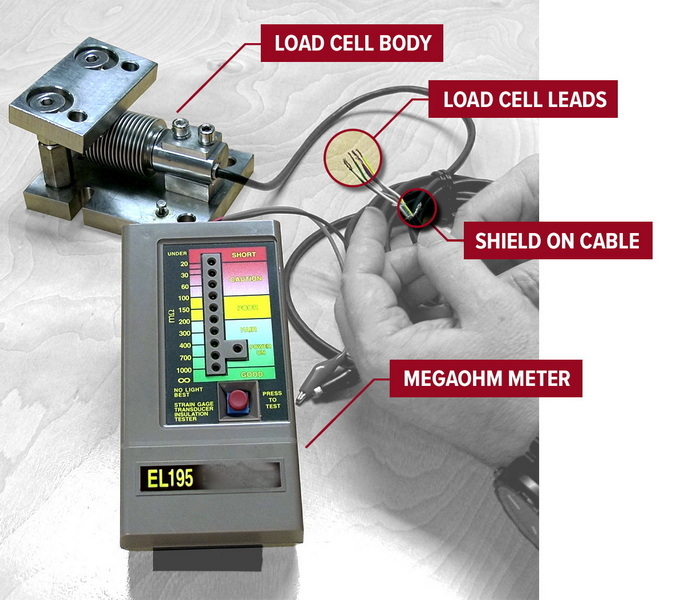

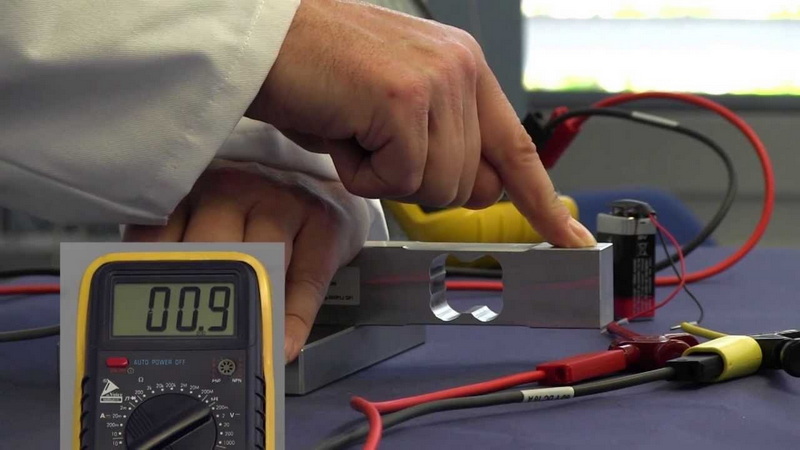

3. Resistance Check: Set the multimeter to measure resistance (Ohms). Connect the multimeter leads to the load cell terminals and record the resistance values. Compare these values to the specifications provided in the load cell datasheet.
4. Output Voltage Test: Reconnect the load cell to a stable power supply. Measure the output voltage while applying a known weight. The output should correspond to the expected value based on the load cell's specifications.
5. Zero Balance Check: With no load applied, the output should read close to zero. Any significant deviation indicates a problem.
If testing reveals issues, troubleshooting is the next step. Common problems include:
- Inconsistent Readings: This may be due to electrical noise or interference. Ensure that the load cell is properly shielded from electromagnetic interference.
- Mechanical Damage: Inspect the load cell for any signs of physical damage. If the load cell has been overloaded, it may require recalibration or replacement.
- Wiring Issues: Check all connections and wiring for signs of wear or damage. Loose or corroded connections can lead to inaccurate readings.
Regular maintenance, including cleaning and recalibrating load cells, can prevent many of these issues.
Calibration is the process of adjusting the load cell output to ensure accurate measurements. It is essential to perform calibration regularly, especially after repairs or significant changes in the environment. The calibration process typically involves:
1. Setting Up: Connect the load cell to a calibration device.
2. Applying Known Weights: Gradually apply known weights and record the output readings.
3. Adjusting Output: If the output does not match the expected values, adjustments are made to the calibration settings.
When a load cell fails, the decision to repair or replace it depends on the extent of the damage. Minor issues, such as loose connections or minor physical damage, can often be repaired. However, if the load cell has suffered significant mechanical damage or has been overloaded, replacement may be the best option.
Basic repair techniques include:
- Re-soldering Connections: If electrical connections are damaged, they can often be repaired by re-soldering.
- Replacing Components: In some cases, individual components within the load cell can be replaced without needing to replace the entire unit.
In conclusion, understanding how to check for a bad load cell is crucial for maintaining accurate and reliable weight measurements. Regular testing, troubleshooting, and calibration can help ensure that load cells function correctly and provide accurate readings. By being proactive in maintenance, businesses can avoid costly errors and ensure the integrity of their weighing systems.
Common causes include mechanical overload, environmental factors (like moisture and temperature), and electrical issues such as wiring faults.
Load cells should be tested regularly, ideally every six months, or more frequently in high-use environments.
Yes, many load cells can be repaired, especially if the issues are related to wiring or minor mechanical damage.
A digital multimeter, calibration weights, and basic hand tools for inspection and repair are typically required.
Environmental factors such as temperature fluctuations, humidity, and electromagnetic interference can impact the accuracy and reliability of load cell readings.
This comprehensive guide provides a thorough understanding of load cells, their functionality, and how to ensure they operate correctly. Regular maintenance and testing are key to preventing issues and ensuring accurate measurements.
