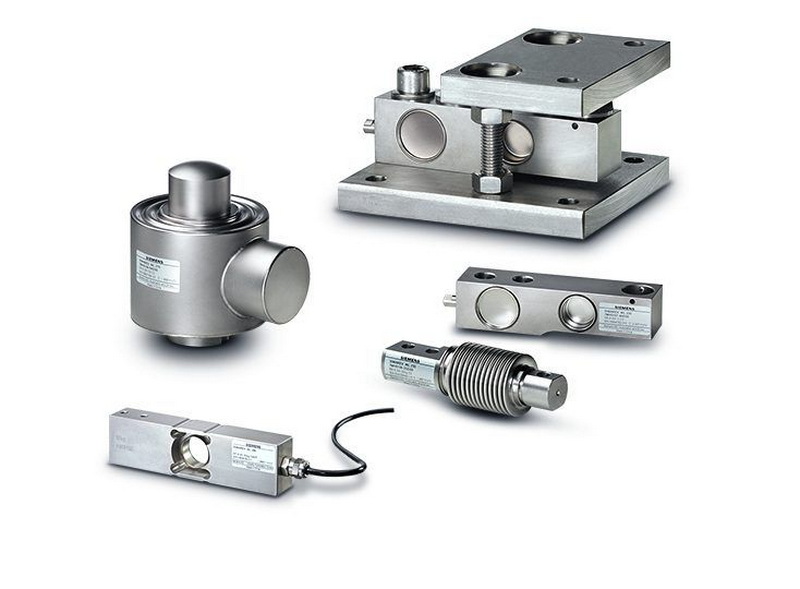

Load cells are crucial components in various weighing systems, from industrial scales to precision laboratory equipment. These devices convert force into electrical signals, allowing for accurate weight measurements. However, like any electronic component, load cells can malfunction or fail over time. Understanding how to check if a load cell is bad is essential for maintaining the accuracy and reliability of your weighing system.In this comprehensive guide, we'll explore various methods to test load cells, identify common symptoms of failure, and provide a troubleshooting guide to help you diagnose and resolve issues. We'll also discuss the calibration process and when it might be necessary to replace a faulty load cell.
Before diving into specific testing methods, it's important to understand the basic principles of load cell troubleshooting. Load cells can fail due to various reasons, including:
- Physical damage
- Overloading
- Environmental factors (moisture, temperature extremes)
- Electrical issues
- Normal wear and tear

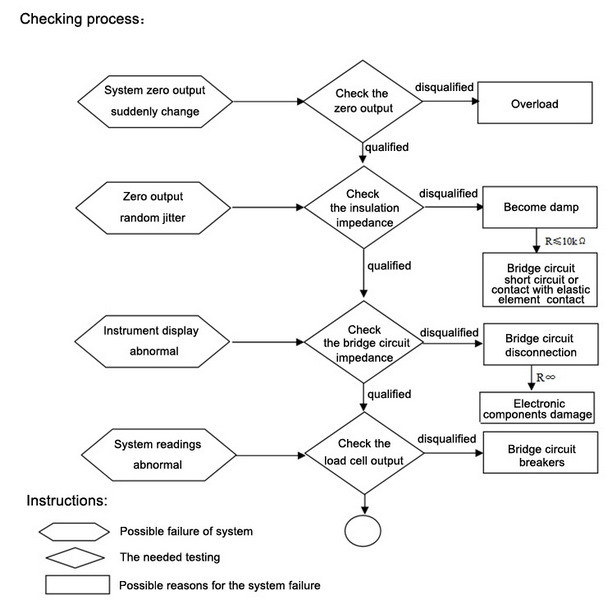

When troubleshooting a load cell, it's essential to follow a systematic approach to identify the root cause of the problem.This flowchart illustrates a systematic process for diagnosing load cell issues, including checks for zero output, insulation impedance, and bridge circuit impedance.
There are several methods to test a load cell and determine if it's functioning correctly. Let's explore some of the most effective techniques:
Always start with a visual inspection of the load cell and its surrounding components. Look for:
- Signs of physical damage
- Corrosion or rust
- Loose connections
- Damaged cables or wires
A digital multimeter is an essential tool for testing load cells. Here's how to use it:
1. Set the multimeter to measure resistance (ohms).
2. Check the input resistance by measuring between the excitation leads.
3. Measure the output resistance between the signal leads.
4. Compare the readings with the manufacturer's specifications.
An insulation resistance test helps identify potential short circuits or moisture ingress:
1. Use a megohmmeter or a multimeter with high resistance range.
2. Measure the resistance between each wire and the load cell body.
3. The resistance should be in the megohm range (typically >5000 MΩ).
The zero balance is the output of the load cell when no load is applied:
1. Power the load cell with the correct excitation voltage.
2. Measure the output signal with no load applied.
3. Compare the reading to the manufacturer's specifications.
Recognizing the symptoms of a faulty load cell can help you identify problems early. Common signs include:
- Inconsistent or erratic readings
- Drift in zero balance
- Non-linearity in measurements
- Slow response to load changes
- Sudden changes in calibration
If your weighing system displays inconsistent or fluctuating readings, it could indicate a problem with the load cell. This may be due to:
- Loose connections
- Damaged wiring
- Internal component failure
A gradual shift in the zero balance over time can indicate:
- Temperature effects
- Moisture ingress
- Mechanical stress on the load cell
If the load cell output is not proportional to the applied load across its range, it may be suffering from:
- Overloading damage
- Structural deformation
- Internal component failure
Regular calibration is crucial for maintaining the accuracy of your load cell. The calibration process involves:
1. Zeroing the system
2. Applying known weights
3. Adjusting the system to match the known weights
4. Verifying linearity across the load range
Calibrate your load cell:
- After installation
- Periodically as part of regular maintenance
- When accuracy seems to have drifted
- After any repairs or adjustments
Measuring the resistance of a load cell can provide valuable information about its condition:
1. Measure between the excitation leads (usually red and black).
2. Compare to the manufacturer's specifications (typically 350Ω or 1000Ω).
1. Measure between the signal leads (usually white and green).
2. Should be close to the input resistance value.
1. Measure between each lead and the load cell body.
2. Should be very high (megohms) to indicate good insulation.
Overloading is a common cause of load cell failure. To detect if a load cell has been overloaded:
1. Check for physical deformation
2. Look for sudden changes in zero balance
3. Test for non-linearity in measurements
4. Inspect for cracks or damage to the load cell body
If overloading is suspected, it's crucial to recalibrate the load cell and consider replacement if performance doesn't improve.

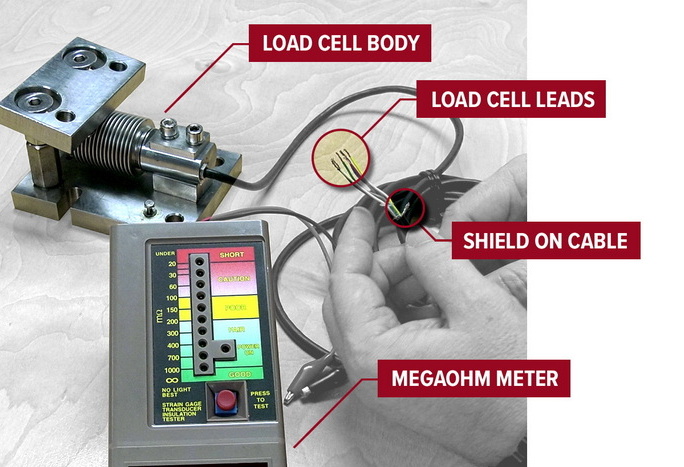

The insulation resistance test is particularly useful for detecting moisture ingress or insulation breakdown:
1. Use a megohmmeter or high-range multimeter
2. Apply a test voltage (typically 50V or 100V)
3. Measure resistance between each wire and the load cell bodyv4. Readings below 5000 MΩ may indicate a problem
- High resistance (>5000 MΩ): Good insulation
- Medium resistance (1-5000 MΩ): Potential moisture issue
- Low resistance (<1 MΩ): Severe insulation problem or short circuit
If troubleshooting and calibration attempts fail to resolve the issue, it may be time to replace the load cell. Here's a guide to the replacement process:
1. Identify the exact model and specifications of the current load cell
2. Order a compatible replacement
3. Disconnect and remove the old load cell
4. Install the new load cell, ensuring proper alignment and mounting
5. Connect the wiring, following the manufacturer's diagram
6. Perform initial calibration and testing
- Ensure the new load cell has the same capacity and sensitivity
- Check for compatibility with your existing instrumentation
- Consider upgrading to a more robust or feature-rich model if appropriate
Understanding how to check if a load cell is bad is crucial for maintaining the accuracy and reliability of your weighing system. By following the troubleshooting methods, testing procedures, and maintenance practices outlined in this guide, you can identify and resolve load cell issues effectively.Remember that regular calibration, proper handling, and environmental protection can significantly extend the life of your load cells. When in doubt, always consult with the manufacturer or a qualified technician to ensure the best possible performance from your weighing system.
A1: The frequency of calibration depends on various factors, including usage, environmental conditions, and regulatory requirements. As a general rule, calibrate your load cells at least once a year, or more frequently if you notice any drift in accuracy or if the cells are subjected to harsh conditions.
A2: In some cases, minor issues like loose connections or moisture ingress can be repaired. However, for more severe problems such as internal component failure or structural damage, replacement is usually the best option. Always consult with the manufacturer or a qualified technician to determine the best course of action.
A3: Load cell drift can be caused by temperature changes, moisture, mechanical stress, or aging of components. To prevent drift, ensure proper installation, protect the load cell from environmental factors, avoid overloading, and perform regular calibrations.
A4: Signs of overloading include sudden changes in zero balance, non-linearity in measurements, and physical deformation of the load cell. If you suspect overloading, perform a thorough inspection and recalibration. If issues persist, the load cell may need to be replaced.
A5: A strain gauge is a component used within a load cell to measure deformation. The load cell is the complete sensor assembly that includes the strain gauge, housing, and other components necessary to convert force into an electrical signal. In essence, a load cell uses one or more strain gauges to measure applied force.
