Load cells are essential components in various measurement systems, providing accurate data on weight and force. When integrated with Data Acquisition (DAQ) systems, they enable precise monitoring and analysis of physical parameters. This article explores how to connect load cells to DAQ systems, ensuring reliable data collection for applications ranging from industrial automation to scientific research.
Load cells are transducers that convert force or weight into an electrical signal. They are widely used in scales, industrial weighing systems, and force measurement applications. There are several types of load cells, including:
- Strain Gauge Load Cells: The most common type, utilizing strain gauges to measure deformation.
- Hydraulic Load Cells: Use fluid pressure to measure weight.
- Pneumatic Load Cells: Measure weight through air pressure changes.
Each type has its unique applications, making it crucial to select the appropriate load cell for specific needs.
A DAQ system is a combination of hardware and software that collects, analyzes, and presents data from various sensors, including load cells. Key components of a DAQ system include:
- Sensors: Devices that measure physical phenomena.
- Signal Conditioning Equipment: Enhances the quality of the signal from the sensor.
- Data Processing Unit: Converts the conditioned signal into a digital format for analysis.
The integration of load cells with DAQ systems is vital for accurate measurements in various fields, including manufacturing, research, and healthcare.
To connect a load cell to a DAQ system, several components are required:
- Load Cell: The primary sensor.
- Signal Conditioner: Amplifies and conditions the signal from the load cell.
- DAQ Device: Captures the conditioned signal for analysis.
Step-by-Step Connection Process:
1. Identify the Load Cell Type: Determine the specifications and wiring configuration.

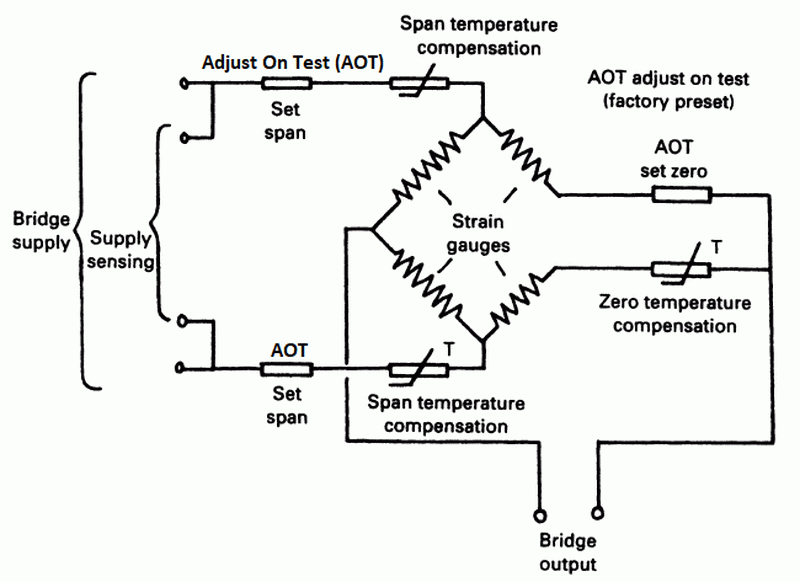

2. Connect the Load Cell to the Signal Conditioner: Follow the wiring diagram specific to your load cell type.
3. Connect the Signal Conditioner to the DAQ Device: Ensure proper input channels are used.
4. Power the System: Provide the necessary excitation voltage to the load cell.
Signal conditioning is crucial for ensuring that the output from the load cell is suitable for the DAQ system. It involves amplifying the signal and filtering out noise.
Types of Signal Conditioners:
- Amplifiers: Increase the signal strength.
- Filters: Remove unwanted frequencies from the signal.
Choosing the Right Signal Conditioner:
Consider the load cell's output type and the DAQ system's input requirements when selecting a signal conditioner.
Calibration is essential for maintaining accuracy in measurements. It involves comparing the load cell's output against a known standard.
Step-by-Step Calibration Process:
1. Set Up the Calibration Equipment: Use a calibrated weight or force standard.
2. Apply Known Weights: Gradually apply known weights to the load cell.
3. Record the Output: Note the output signal for each weight.
4. Adjust Calibration Settings: Modify the DAQ system settings based on the recorded data.
Tools Required for Calibration:
- Calibration weights
- A multimeter or DAQ system for recording output
When connecting load cells to DAQ systems, various issues may arise:
- Common Connection Problems: Ensure all connections are secure and correctly wired.
- Signal Noise and Interference: Use shielded cables and proper grounding techniques to minimize noise.
- Calibration Errors: Regularly check calibration settings and adjust as necessary.
Connecting load cells to DAQ systems is a critical process that ensures accurate data collection for various applications. By understanding the components involved, following proper connection procedures, and maintaining calibration, users can achieve reliable measurements. As technology advances, the integration of load cells and DAQ systems will continue to evolve, enhancing measurement capabilities across industries.
Load cells are complete devices that convert force into an electrical signal, while strain gauges are sensors that measure deformation and are often used within load cells.
Consider factors such as the load capacity, environmental conditions, and the type of measurement required when selecting a load cell.
Common types include amplifiers, filters, and analog-to-digital converters, which enhance the signal quality for accurate measurements.
Calibration frequency depends on usage and environmental conditions, but it is generally recommended to calibrate at least once a year or before critical measurements.
Use shielded cables, ensure proper grounding, and follow the manufacturer's wiring diagrams to minimize noise and ensure accurate readings.
This article provides a comprehensive overview of connecting load cells to DAQ systems, ensuring that users can effectively implement these technologies in their applications.
