A load cell is a transducer that converts mechanical force into electrical signals, making it an essential component in various weighing and force measurement applications. Connecting a load cell to a PC opens up numerous possibilities for data acquisition, analysis, and logging. This comprehensive guide will walk you through everything you need to know about establishing and optimizing a load cell-to-PC connection.
Load cells operate on the principle of strain gauge technology, where mechanical deformation causes a change in electrical resistance. These devices typically output a very small voltage signal (usually in millivolts) that requires amplification before it can be effectively processed. Modern load cells come in various configurations, including single-point, S-beam, and compression types, each suited for specific applications. The most common types feature either a four-wire or six-wire configuration, with the latter offering additional sense lines for improved accuracy.
To successfully connect a load cell to a PC, you'll need several key components:
- A load cell with appropriate capacity and configuration
- Signal amplifier or load cell interface module
- Analog-to-digital converter (if not integrated into the interface)
- Proper cabling and connectors
- Power supply
- PC with appropriate ports (typically USB)
- Optional mounting hardware
The quality and compatibility of these components directly impact the accuracy and reliability of your measurements.
The process of connecting a load cell to a PC involves several crucial steps:

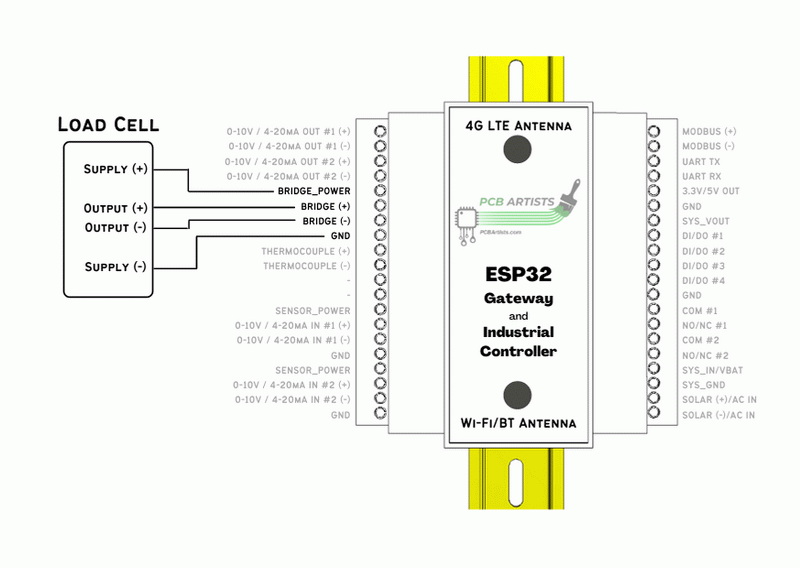

1. Wiring Configuration
- Identify the load cell's wire colors and their functions
- Connect the excitation wires to the power supply
- Attach the signal wires to the amplifier
- Ensure proper shielding and grounding
2. Interface Setup
- Install the signal amplifier or interface module
- Configure the analog-to-digital conversion settings
- Establish the USB or serial connection to the PC
- Verify power supply stability
3. Software Installation
- Install the necessary drivers
- Set up data acquisition software
- Configure communication parameters
- Establish initial calibration settings
Proper software setup is crucial for accurate measurements. This involves:
- Installing manufacturer-specific software or compatible data acquisition programs
- Setting up communication parameters (baud rate, data bits, etc.)
- Performing initial calibration with known weights
- Configuring display units and measurement parameters
- Setting up data logging and export options
- Establishing filtering and averaging parameters
Common issues and their solutions:
- Signal drift: Check power supply stability and environmental conditions
- Nonlinear readings: Verify calibration and mechanical mounting
- Communication errors: Check cable connections and driver installation
- Noise in readings: Improve shielding and grounding
- Zero offset: Perform regular zero calibration
Regular maintenance procedures:
- Periodic calibration checks
- Inspection of physical connections
- Software updates
- Data backup procedures
- System performance verification
Modern load cell-to-PC connections enable sophisticated applications:
- Real-time data monitoring and logging
- Statistical process control
- Integration with industrial automation systems
- Custom application development
- Network connectivity and remote monitoring
- Cloud data storage and analysis
Connecting a load cell to a PC is a precise process that requires attention to detail in both hardware and software configuration. When properly implemented, this setup provides accurate, reliable force measurements with extensive data processing capabilities. Regular maintenance and proper troubleshooting procedures ensure long-term system reliability.
1. Q: What is the minimum PC specification required for load cell connection? A: Any modern PC with a USB port and Windows 7 or newer operating system is typically sufficient. The processing requirements are minimal unless running complex analysis software.
2. Q: How often should I calibrate my load cell system? A: Calibration frequency depends on usage but is typically recommended every 6-12 months or when accuracy appears to drift.
3. Q: Can I connect multiple load cells to one PC? A: Yes, multiple load cells can be connected using either multiple interfaces or a single multi-channel interface, depending on your specific requirements.
4. Q: What causes zero drift in load cell measurements? A: Zero drift can be caused by temperature changes, mechanical stress, power supply fluctuations, or environmental factors affecting the load cell or its mounting.
5. Q: How can I improve the accuracy of my load cell measurements? A: Accuracy can be improved through proper calibration, environmental control, using high-quality signal conditioning equipment, and implementing appropriate digital filtering.
