The B2909 code indicates a fault with the belt tension sensor, particularly in vehicles equipped with a seatbelt tensioning system. This article will guide you through diagnosing and repairing the B2909 16 belt tension sensor fault, providing detailed steps, illustrations, and video references to enhance understanding.

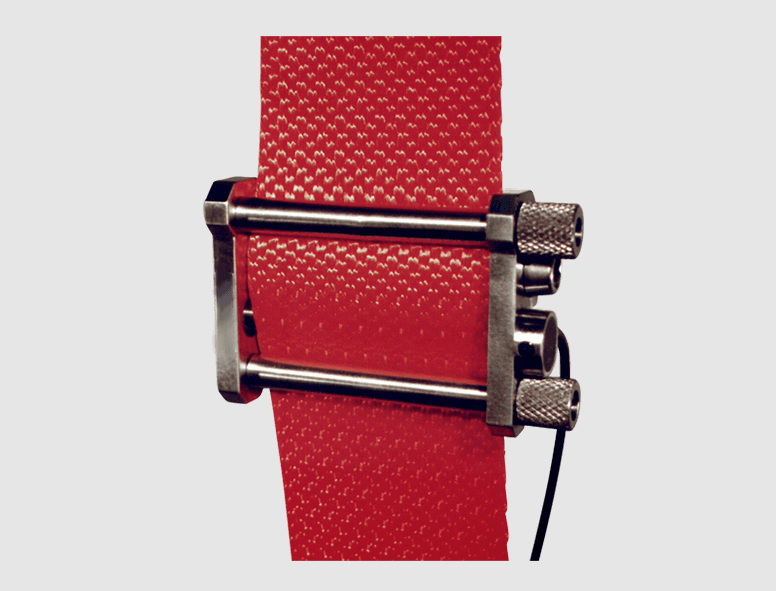

The B2909 fault code is commonly associated with issues in the seatbelt tension sensor circuit. This sensor is crucial for ensuring that the seatbelt functions correctly during a collision, providing necessary tension to secure passengers. When this code appears, it often indicates one of several potential problems:
- Wiring Issues: Damaged or corroded wires can lead to faulty readings.
- Connector Problems: Loose or dirty connectors may disrupt the electrical flow.
- Sensor Malfunction: The sensor itself might be defective and require replacement.
- ECU/Module Problems: In rare cases, the vehicle's ECU/Control module may have an issue.
Before starting the diagnosis, gather the following tools:
- OBD-II Scanner
- Multimeter
- Wiring Diagram for your vehicle model
- Basic hand tools (screwdrivers, pliers, etc.)
- Safety gloves and goggles
- Electrical Contact Cleaner
- Dielectric Grease
Begin by using an OBD-II scanner to retrieve any diagnostic trouble codes (DTCs). This will confirm the presence of the B2909 code and may reveal additional codes that could assist in troubleshooting. It's always a good idea to note down all the codes present, as sometimes seemingly unrelated codes can offer clues to the root cause.
1. Connect the scanner to the vehicle's OBD-II port.
2. Turn on the ignition without starting the engine (Key On, Engine Off - KOEO).
3. Follow the scanner's instructions to read DTCs.
4. Record all present DTCs.
Conduct a thorough visual inspection of the wiring and connectors associated with the seatbelt tension sensor. This step is crucial because obvious physical damage is often the easiest to spot and repair.
- Check for frayed wires or visible damage. Look for cuts, abrasions, or signs of rodent damage.
- Inspect connectors for corrosion or looseness. Pay close attention to the locking mechanism; it should be secure.
- Examine the harness routing. Ensure the harness isn't pinched or rubbing against any sharp edges.
Refer to your vehicle's service manual to pinpoint the exact location of the seatbelt tension sensor. These sensors are typically located within the seatbelt retractor mechanism or near the seatbelt buckle. Accessing the sensor might require removing interior trim panels or seats.
Safety First: Before removing any components, disconnect the negative terminal of the vehicle's battery to prevent accidental electrical shock or airbag deployment.
Using a multimeter, test for voltage at the seatbelt tension sensor connector. This will verify that the sensor is receiving the correct power supply.
1. Disconnect the sensor connector.
2. Set your multimeter to measure DC voltage.
3. With the ignition on (KOEO), probe the connector terminals with the multimeter leads.
4. Consult your vehicle's wiring diagram to identify the power and ground terminals.
Expected voltage readings should be within manufacturer specifications (typically around 5V or 12V, depending on the vehicle). If no voltage is present, trace back the wiring to identify any open circuits, blown fuses, or faulty relays. Use the wiring diagram as your guide.
If voltage is present, check the resistance of the seatbelt tension sensor. This step helps determine if the sensor itself is functioning correctly.
1. Disconnect the sensor from its connector.
2. Set your multimeter to measure resistance (ohms).
3. Measure across the sensor terminals.
4. Compare your readings to the resistance values specified in your vehicle's service manual.
If the resistance readings are significantly outside the specified range, it indicates a faulty sensor that needs replacement.
Continuity testing is used to verify the integrity of the wiring between the sensor connector and the vehicle's ECU/control module.
1. Disconnect the battery.
2. Disconnect the sensor connector and the corresponding connector at the ECU.
3. Set your multimeter to the continuity setting (usually indicated by a diode symbol or an audible beep).
4. Probe each wire between the sensor connector and the ECU connector.
The multimeter should indicate continuity (low resistance or a beep) for each wire. If there's no continuity, it means there's an open circuit in the wiring, which needs to be repaired.
A poor ground connection can also trigger the B2909 code. Locate the ground point for the seatbelt tension sensor circuit (refer to your vehicle's wiring diagram). Inspect the ground connection for corrosion, looseness, or damage. Clean the ground point and ensure it's securely fastened to the vehicle's chassis.
Based on your findings:
- Wiring Issues: Repair any damaged wires by splicing in new wire or replacing entire sections as necessary. Use proper soldering techniques and heat-shrink tubing to ensure a reliable and durable repair.
- Connector Problems: Clean or replace connectors that show signs of corrosion. Use electrical contact cleaner and apply dielectric grease after cleaning to protect against future corrosion. Replace damaged connectors with new ones.
- Sensor Replacement: If testing confirms a faulty sensor, replace it following manufacturer guidelines. Ensure the replacement sensor is the correct part number for your vehicle.
- ECU/Module Problems: In rare cases, the vehicle's ECU/Control module may have an issue. If all other tests pass, and you suspect an issue with the ECU, consider consulting a professional mechanic or electronics specialist.
To clean connectors:
1. Disconnect the connector.
2. Spray electrical contact cleaner liberally into the connector.
3. Use a small brush to gently scrub away any corrosion.
4. Allow the cleaner to evaporate completely.
5. Apply dielectric grease to the connector terminals.
6. Reconnect the connector, ensuring it locks securely.
When replacing a faulty sensor:
1. Disconnect battery power before starting work.
2. Remove any covers obstructing access to the sensor. Refer to your vehicle's service manual for instructions on removing trim panels or seats.
3. Disconnect the electrical connector from the old sensor.
4. Unbolt or unscrew the old sensor from its mounting location.
5. Install the new sensor in the reverse order, ensuring all connections are secure.
6. Torque the mounting bolts to the manufacturer's specifications.
Sometimes, the B2909 16 belt tension sensor fault appears intermittently. These can be particularly challenging to diagnose. Try wiggling the wiring harness and connectors while monitoring the sensor readings with your OBD-II scanner. If the readings fluctuate or the code reappears, it indicates a loose connection or a wiring problem.
If the basic diagnostic steps don't resolve the issue, consider these advanced troubleshooting techniques:
- Data Logging: Use your OBD-II scanner to log sensor data while driving. This can help identify intermittent issues or unusual sensor behavior.
- Oscilloscope Testing: An oscilloscope can be used to analyze the sensor's signal waveform. This can reveal subtle problems that are difficult to detect with a multimeter.
- Professional Scan Tools: Some professional scan tools offer advanced diagnostic capabilities, such as bidirectional control and component testing.
Diagnosing and repairing a B2909 16 belt tension sensor fault involves systematic checks of wiring, connectors, and sensors themselves. By following these steps carefully, you can resolve this issue effectively, ensuring safety systems in your vehicle function as intended. Remember to consult your vehicle's service manual for specific instructions and torque specifications. If you're not comfortable performing these repairs yourself, seek assistance from a qualified mechanic. Safety should always be your top priority.
The B2909 fault code is typically caused by issues with wiring, connectors, a malfunctioning seatbelt tension sensor, or, rarely, issues with the vehicle's ECU/Control module.
After addressing any underlying issues (repairing wiring, replacing a sensor, etc.), you can clear the code using an OBD-II scanner. Connect the scanner, turn on the ignition (KOEO), and select "Clear Codes" or "Erase DTCs" from the scanner's menu.
Driving with a B2909 code is not recommended as it indicates a potential failure in your seatbelt system, which could compromise passenger safety. The seatbelt tensioner might not function correctly in the event of a collision.
Yes, if you have basic mechanical skills, tools, and a good understanding of automotive electrical systems, you can diagnose and repair this issue yourself by following proper procedures. However, if you're not comfortable working with electrical systems or safety-critical components, it's best to seek professional assistance.
The cost can vary widely depending on your vehicle make and model, the source of the replacement part (OEM vs. aftermarket), and labor rates in your area. Typically, the part itself can range from $50 to $300, and labor can add another $100 to $300, resulting in a total cost of $150 to $600. Always get a quote from a reputable mechanic before proceeding with the repair.
