How To Integrate Honeywell Load Cells in Your Existing System?

Views: 222     Author: Leah     Publish Time: 2024-12-18      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Understanding Honeywell Load Cells

Steps for Integration

>> 1. Assess Your Requirements

>> 2. Select the Right Model

>> 3. Plan the Installation

>> 4. Calibration

>> 5. Integration with Data Acquisition Systems

Additional Considerations

>> 1. Data Processing

>> 2. Troubleshooting Common Issues

Conclusion

FAQs

>> 1. What types of applications are suitable for Honeywell load cells?

>> 2. How do I choose the right Honeywell load cell model?

>> 3. What is the typical lifespan of a Honeywell load cell?

>> 4. Can I use Honeywell load cells in extreme environments?

>> 5. How do I maintain my Honeywell load cell?

Integrating Honeywell load cells into your existing system can enhance measurement accuracy and reliability. This guide will cover the essential steps, considerations, and best practices for successful integration. We will also include visuals and videos to aid understanding, along with a conclusion and frequently asked questions (FAQs) to address common queries.

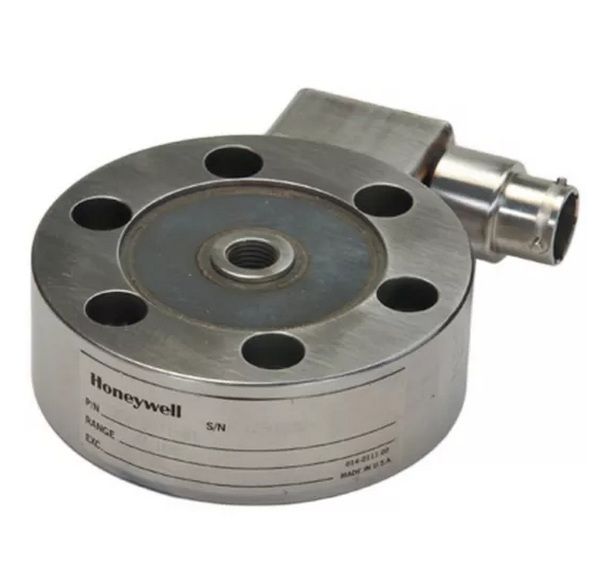

honeywell load cell (2)

Understanding Honeywell Load Cells

Honeywell offers a wide range of load cells designed for various applications, including tension, compression, and universal measurements. These load cells are known for their durability, precision, and versatility. Key features include:

- Durability: Constructed from stainless steel or aluminum, Honeywell load cells are built to withstand harsh environments.

- Accuracy: With accuracies ranging from 0.05% to 0.5% full scale, they provide reliable measurements for critical applications.

- Temperature Range: They operate effectively in extreme temperatures from -51°C to 160°C (-60°F to 320°F).

- Output Options: Various output configurations are available, including mV/V, 4 mA to 20 mA, and digital outputs like RS-232 and RS-485.

Steps for Integration

Integrating Honeywell load cells into your system involves several crucial steps:

1. Assess Your Requirements

Before selecting a load cell model, assess your specific requirements:

- Load Capacity: Determine the maximum load the cell needs to measure.

- Type of Measurement: Decide whether you need tension, compression, or both.

- Environmental Conditions: Consider factors such as temperature extremes and exposure to chemicals.

- Accuracy Needs: Identify the level of precision required for your application. For example, industrial applications may require higher accuracy than basic weighing tasks.

2. Select the Right Model

Honeywell provides various models tailored for different applications. Here are some popular options:

Model Load Capacity Accuracy Applications
Model D 150 g to 30,000 lb ±1.0% Compression applications
Model 31 50 g to 10,000 lb ±0.15% Miniature applications
Model 3173 200 lb to 3,000 lb ±0.07% Materials testing

Choose a model that best fits your operational needs. Additionally, consider consulting with Honeywell representatives or technical documentation for guidance on selecting the most appropriate model based on your specific application requirements.

3. Plan the Installation

Proper installation is critical for accurate measurements:

- Mounting Surface: Ensure that the mounting surface is flat and rigid. Any irregularities can lead to measurement errors.

- Alignment: Align the load cell correctly to avoid off-axis loading which can affect accuracy. Misalignment can lead to stress concentrations that may damage the load cell over time.

- Wiring: Follow proper wiring guidelines as per the model's specifications to connect the load cell to your data acquisition system. Ensure that all connections are secure and insulated to prevent signal interference.

- Environmental Protection: If the load cell will be exposed to moisture or corrosive substances, consider using protective enclosures or coatings designed for such environments.

4. Calibration

After installation, calibrate the load cell:

- Use known weights to verify accuracy. This step is crucial as it ensures that the readings from the load cell reflect true values.

- Adjust settings in your data acquisition system based on calibration results. Regular calibration should be part of your maintenance schedule—ideally performed at least once a year or more frequently depending on usage conditions.

5. Integration with Data Acquisition Systems

Honeywell load cells can be integrated with various data acquisition systems:

- Analog Outputs: Connect using standard analog inputs (e.g., mV/V or current outputs). Ensure that your data acquisition system is compatible with the output type of the load cell you selected.

- Digital Communication: If using digital outputs like RS-232 or RS-485, ensure your system supports these protocols. Digital communication can provide benefits such as noise immunity and longer cable lengths without signal degradation.

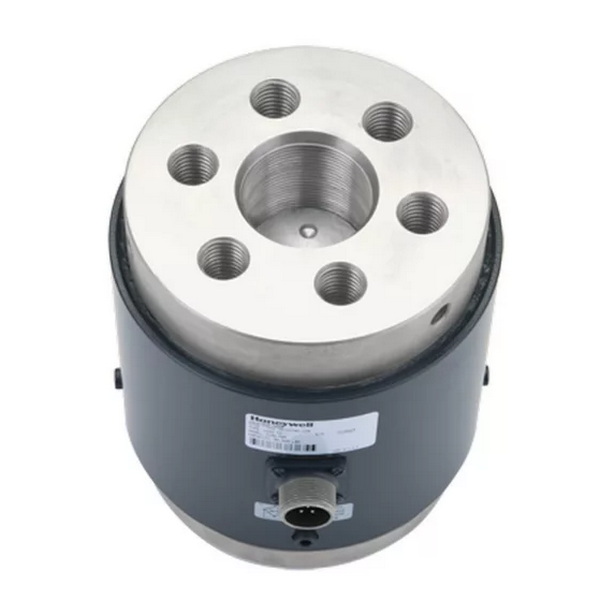

Load Cell Installation

Additional Considerations

1. Data Processing

Once integrated, consider how you will process the data collected from the load cells:

- Software Compatibility: Ensure that your data acquisition software can handle the input from Honeywell load cells and is capable of processing it effectively.

- Data Analysis: Implement data analysis tools that allow you to visualize trends over time or detect anomalies in measurements which could indicate issues with either the load cell or the overall system.

2. Troubleshooting Common Issues

Be prepared to troubleshoot common issues that may arise during integration:

- Signal Noise: If you experience fluctuating readings, check for electrical noise sources nearby and consider using shielded cables or filtering techniques.

- Drift Over Time: Load cells may experience drift due to environmental changes; regular calibration can help mitigate this issue.

- Mechanical Failure: Inspect mechanical connections regularly for signs of wear or loosening which could affect performance.

Conclusion

Integrating Honeywell load cells into your existing system can significantly improve measurement accuracy and operational efficiency. By following the outlined steps—from assessing requirements to calibration—you can ensure a successful integration process. The versatility of Honeywell's offerings allows for customization based on specific needs, making them an excellent choice for various applications.

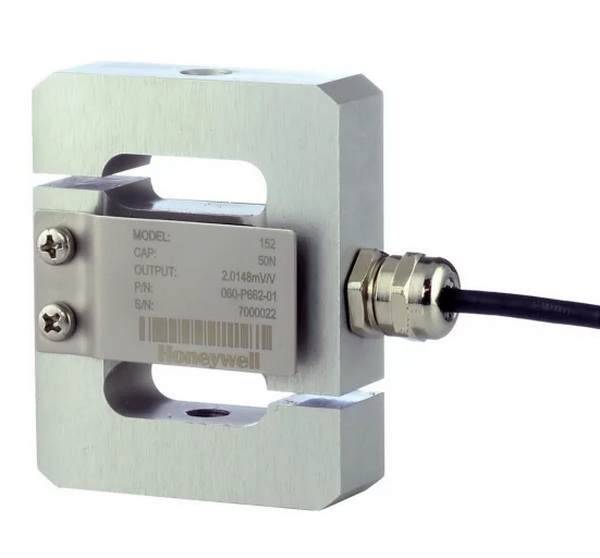

honeywell load cell

FAQs

1. What types of applications are suitable for Honeywell load cells?

Honeywell load cells are suitable for a wide range of applications including industrial automation, aerospace testing, materials testing, medical devices, and more due to their accuracy and durability.

2. How do I choose the right Honeywell load cell model?

Consider factors like maximum load capacity, type of measurement (tension/compression), environmental conditions (temperature and exposure), required accuracy, and any specific industry standards when selecting a model.

3. What is the typical lifespan of a Honeywell load cell?

With proper installation and maintenance, Honeywell load cells can last many years; however, their lifespan can vary based on usage conditions and frequency of calibration. Regular inspections can help identify potential issues early on.

4. Can I use Honeywell load cells in extreme environments?

Yes, many Honeywell load cells are designed to operate in extreme temperatures and harsh environments, making them suitable for various industrial applications such as food processing or chemical manufacturing where exposure to moisture or corrosive substances may occur.

5. How do I maintain my Honeywell load cell?

Regular calibration checks should be performed alongside ensuring that mounting surfaces remain clean and free from debris will help maintain performance; additionally, inspect wiring connections periodically for any signs of wear or damage.
