Load cells are essential components in various applications, from industrial weighing systems to precision measurement devices. They convert force or weight into an electrical signal, allowing for accurate readings. However, the effectiveness of load cells is significantly influenced by the quality of the load cell wire used in their construction. This article explores the importance of load cell wire quality and its impact on measurement precision.

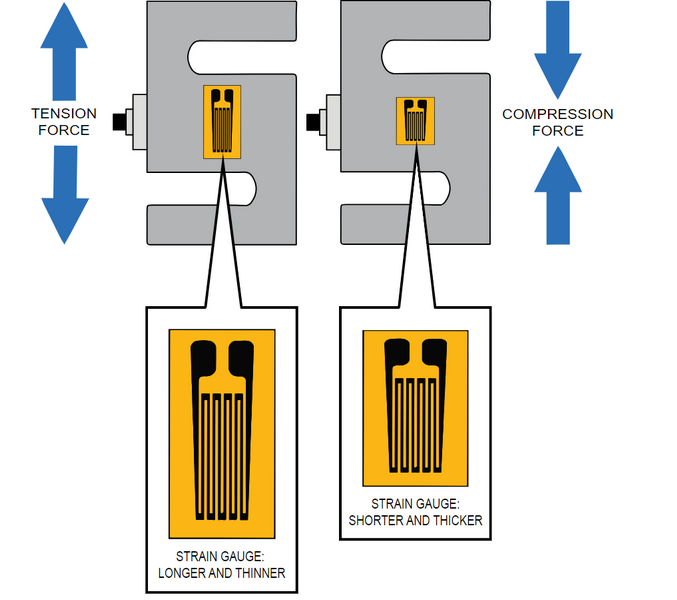

Load cells function based on the principle of strain gauges, which measure deformation when a load is applied. The electrical resistance changes in response to this deformation, and this change is converted into a measurable output signal. The accuracy and reliability of this output depend heavily on several factors, including:
- Environmental conditions: Temperature fluctuations, humidity, and vibrations can affect measurements.
- Mechanical installation: Proper mounting and alignment are crucial for accurate readings.
- Electrical connections: The quality of wiring plays a pivotal role in ensuring that signals are transmitted accurately without interference.
The quality of load cell wire is critical for several reasons:
- Signal Integrity: High-quality wires minimize resistance and electrical noise, ensuring that the signals transmitted from the load cell to the measuring device are accurate and reliable.
- Temperature Stability: Load cell wires must maintain performance across varying temperatures. Poor-quality wires can lead to signal drift or inaccuracies due to thermal expansion or contraction.
- Durability: Load cells often operate in harsh environments. Using robust wiring materials ensures longevity and consistent performance over time.
- Shielding: Quality wires often include shielding to protect against electromagnetic interference (EMI) and radio frequency interference (RFI), which can distort signals and lead to erroneous readings.

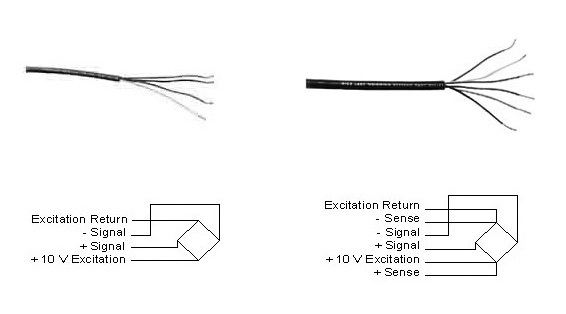

There are primarily two types of load cell wiring configurations:
- 4-Wire Configuration: This is the most common setup, consisting of two wires for excitation voltage and two for the signal output. It effectively minimizes errors caused by lead resistance but may require careful calibration if cable lengths change.

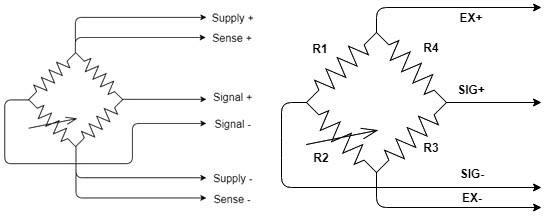

- 6-Wire Configuration: This setup includes two additional sense wires that help compensate for voltage drops along the cable length. This configuration is particularly beneficial in applications where long cable runs are necessary or in environments with significant temperature variations.
| Feature | 4-Wire Configuration | 6-Wire Configuration |
|---|---|---|
| Number of Wires | 4 | 6 |
| Signal Compensation | No | Yes |
| Best Use Case | Short runs | Long runs in variable conditions |
| Complexity | Simpler | More complex |
1. Material Quality: The type of metal used in load cell wires affects conductivity and resistance. Copper is commonly used due to its excellent conductivity.
2. Insulation Type: The insulation material protects against environmental factors and electrical noise. PVC, polyethylene, and PTFE are common choices, each with unique properties suitable for different environments.
3. Cable Length: Longer cables can introduce resistance and potential signal loss. Using a 6-wire configuration can mitigate these issues by compensating for voltage drops.
4. Environmental Conditions: Wires must withstand specific conditions such as moisture, chemicals, or extreme temperatures. Choosing cables designed for hostile environments ensures reliability.
Proper installation is crucial for maintaining the integrity of load cell wiring:
- Ensure secure connections at all terminals to prevent signal loss or interference.
- Follow manufacturer guidelines regarding cable lengths and configurations to avoid calibration issues.
- Use appropriate connectors that match the specifications of your load cell system.
To ensure optimal performance from load cell wires:
- Regularly inspect connections for signs of wear or corrosion.
- Keep cables away from high-temperature sources or areas with excessive mechanical stress.
- Calibrate your system periodically to account for any changes in wiring or environmental conditions.
The quality of load cell wire is a fundamental aspect that significantly impacts measurement precision. From ensuring signal integrity to providing durability against environmental factors, high-quality wiring is essential for reliable load cell performance. By understanding the different types of wiring configurations and their respective benefits, users can make informed decisions that enhance the accuracy and reliability of their measuring systems.
Load cell wire refers to the electrical cables used to connect load cells to measurement devices, transmitting signals generated by the load cells when force or weight is applied.
Wire quality affects signal integrity, temperature stability, durability, and shielding against interference, all crucial for accurate measurements.
A 4-wire configuration has four wires (two for power and two for signal), while a 6-wire configuration adds two sense wires to compensate for voltage drops over longer distances, improving measurement accuracy.
Extreme temperatures, humidity, vibrations, and electromagnetic interference can distort signals from load cells, leading to inaccurate readings if not properly managed with quality wiring.
Regular inspections for wear or corrosion, keeping cables away from heat sources, and periodic calibration are essential maintenance practices to ensure reliable performance.
