Before we delve into the construction process, it's essential to understand what force sensors are and how they work. Force sensors, also known as force-sensitive resistors (FSRs), are components that change their electrical resistance when pressure is applied to their surface. As more force is applied, the resistance decreases, allowing more current to flow through the sensor.
To create your own force sensor, you'll need the following materials:
- Velostat or other pressure-sensitive conductive sheet
- Copper tape (5mm and 25mm widths)
- Paper template
- 1k ohm resistor
- Scissors
- Soldering equipment
- Wires
- Multimeter (for testing)
Start by creating or downloading a paper template for your force sensor. This template will serve as a guide for cutting and assembling the sensor components.
Cut a piece of Velostat to match the size of your paper template. Velostat is a pressure-sensitive conductive material that forms the core of your homemade force sensor.
Cut two squares of copper tape slightly smaller than the Velostat piece. One square will be connected to the power source (3.3V or 5V), and the other will be connected to the resistor and ground.
Sandwich the Velostat between the two copper tape squares. Ensure that the conductive sides of the copper tape are facing the Velostat.
Solder wires to each copper tape square. One wire will connect to the power source, another to ground, and the third to an analog input pin on your microcontroller (e.g., Arduino).
To prevent short circuits, apply a layer of insulating tape (such as masking tape) around the edges of your sensor, ensuring the conductive parts don't make unwanted contact.
Once you've constructed your force sensor, it's time to test it.

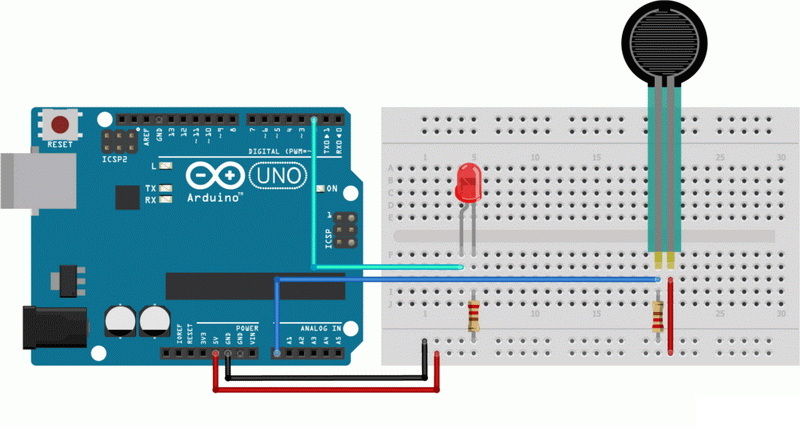

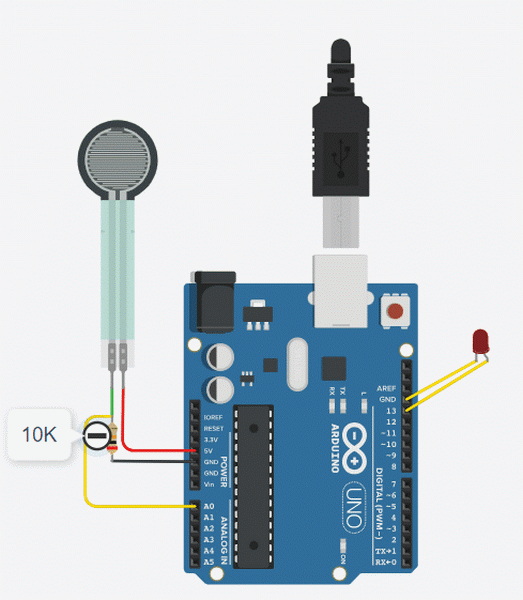

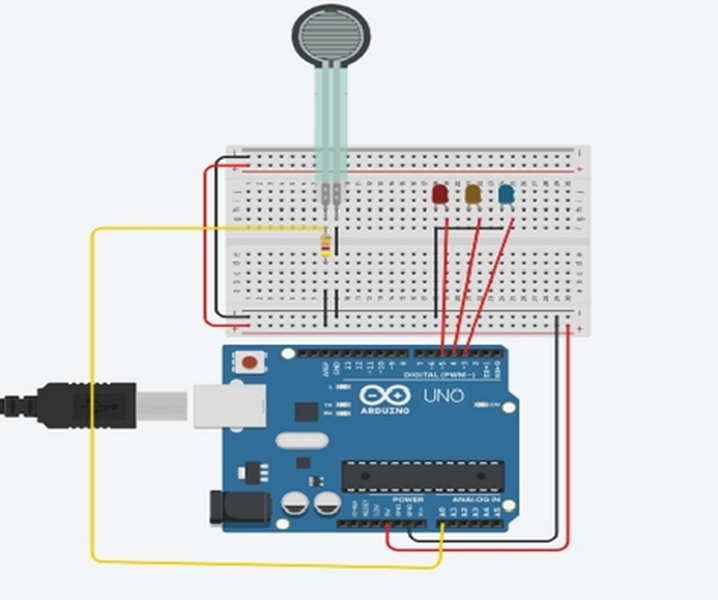

Connect your sensor to the Arduino as follows:
- Power wire to 5V
- Ground wire to GND
- Signal wire to A0
Upload the code and open the Serial Monitor to see the sensor readings. As you apply pressure to the sensor, you should see the values change.
Calibration is crucial for accurate force measurements. While homemade sensors may not be as precise as commercial ones, you can still achieve reasonable accuracy for many applications.
To calibrate your sensor:
1. Apply known weights to the sensor
2. Record the corresponding sensor readings
3. Create a calibration curve or lookup table
4. Use this data in your code to convert raw readings to force units (e.g., Newtons)
Your DIY force sensor can be used in various projects, such as:
1. Interactive art installations
2. Wearable technology
3. Robotic touch sensors
4. Musical instruments
5. Pressure-sensitive switches
Here's a video demonstrating how to use a force sensor with an Arduino:
To enhance the performance of your homemade force sensor, consider the following tips:
1. Experiment with different conductive materials
2. Try various shapes and sizes
3. Use multiple layers of Velostat for different sensitivity ranges
4. Incorporate a flexible substrate for better conformity to curved surfaces
While homemade force sensors are cost-effective and customizable, they may not match the precision and reliability of commercial sensors. Here's a comparison table:
| Aspect | Homemade Sensor | Commercial Sensor |
|---|---|---|
| Cost | Low | Higher |
| Customization | High | Limited |
| Precision | Moderate | High |
| Durability | Variable | Generally High |
| Size Options | Flexible | Fixed |
Creating your own force sensor is an engaging and educational project that opens up numerous possibilities for interactive electronics and DIY innovations. While homemade sensors may not be as precise as commercial options, they offer a cost-effective and customizable solution for many applications. By understanding the principles behind force-sensitive resistors and following the steps outlined in this guide, you can craft functional sensors tailored to your specific needs.
Homemade force sensors can provide reasonably accurate relative measurements, but they may not be as precise as commercial sensors for absolute force measurements. Their accuracy depends on the quality of materials used and the calibration process.
Yes, you can experiment with other pressure-sensitive conductive materials like conductive rubber or fabric. Each material will have different characteristics, so you'll need to adjust your calibration accordingly.
The lifespan of a homemade force sensor depends on the materials used and how it's handled. With proper care, they can last for several months to a year or more. However, they may degrade over time due to wear and tear.
While it's challenging to make a completely waterproof homemade force sensor, you can improve its water resistance by encasing it in a flexible, waterproof material. However, this may affect the sensor's sensitivity.
To increase sensitivity, you can try using thinner conductive materials, adjusting the size of the sensor, or experimenting with different resistor values in your voltage divider circuit. Fine-tuning the software interpretation of the sensor readings can also help improve sensitivity.
