Load cells are crucial components in modern weight measurement systems, serving as the foundation for accurate force and weight determination across various industries. This comprehensive guide will explore the essential aspects of measuring and working with load cells, from basic principles to advanced applications.

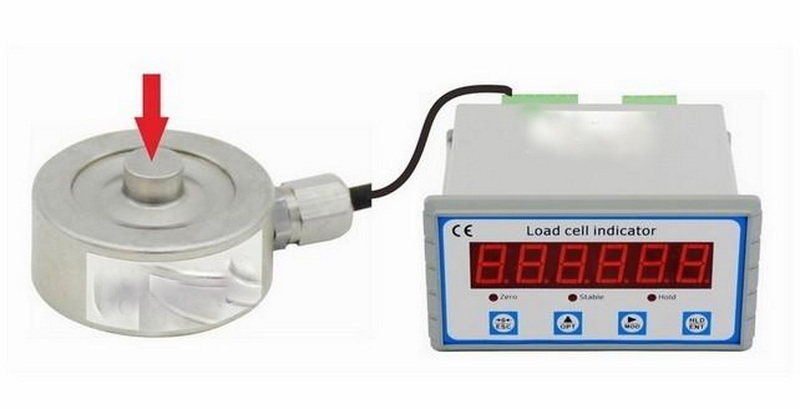

A load cell is a transducer that converts mechanical force into an electrical signal. The most common type uses strain gauges, which change their electrical resistance when subjected to force. This technology enables precise weight measurements in applications ranging from industrial scales to medical equipment.
Several types of load cells exist, each designed for specific applications:
- Strain Gauge Load Cells
- Hydraulic Load Cells
- Pneumatic Load Cells
- Single Point Load Cells
- S-Beam Load Cells

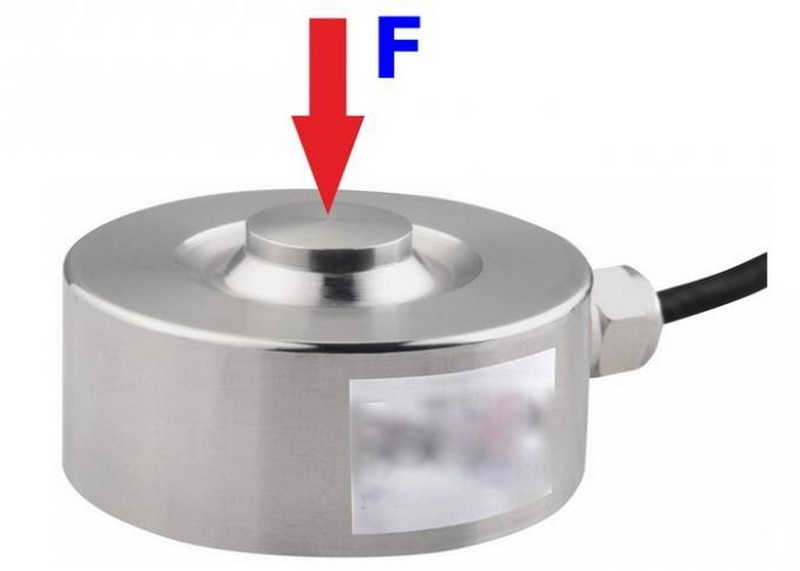

- Compression Load Cells
- Tension Load Cells
Proper installation is crucial for accurate measurements. Follow these steps:
1. Site Preparation
- Ensure a clean, level mounting surface
- Check environmental conditions
- Verify power supply requirements
2. Mounting Considerations
- Use appropriate mounting hardware
- Maintain proper alignment
- Consider load introduction points
3. Wiring and Connections
- Follow manufacturer's wiring diagrams
- Use appropriate cable protection
- Implement proper grounding
Calibration ensures accurate measurements and involves:
1. Zero Calibration
- Remove all weight from the system
- Set the zero point
- Check for drift
2. Span Calibration
- Apply known weights
- Adjust sensitivity
- Verify linearity
3. Temperature Compensation
- Account for thermal effects
- Implement compensation algorithms
- Perform periodic checks
To achieve optimal results:
1. Regular Maintenance
- Clean load cells regularly
- Check for physical damage
- Monitor environmental conditions
2. Error Prevention
- Avoid shock loading
- Prevent overloading
- Maintain stable temperature
3. Data Collection
- Use appropriate sampling rates
- Implement filtering techniques
- Record calibration data
Common issues and solutions:
1. Zero Drift
- Check mounting stability
- Verify temperature effects
- Examine electrical connections
2. Nonlinearity
- Inspect for mechanical binding
- Review calibration procedure
- Check load introduction
3. Noise Issues
- Verify shielding
- Check ground connections
- Examine signal conditioning
Load cells are used in various sophisticated applications:
1. Industrial Automation
- Process control
- Quality assurance
- Material handling
2. Research and Development
- Force analysis
- Material testing
- Product development
3. Safety Systems
- Overload protection
- Structural monitoring
- Safety interlocks
Emerging technologies in load cell measurement:
- Digital load cells
- Wireless monitoring
- IoT integration
- Smart calibration systems
- Advanced data analytics
Understanding how to properly measure and work with load cells is essential for achieving accurate and reliable results. By following proper installation, calibration, and maintenance procedures, users can ensure optimal performance and longevity of their load cell systems.
A1: Load cells should be calibrated at least annually, but more frequently in demanding applications or when required by regulations. Factors affecting calibration frequency include usage intensity, environmental conditions, and accuracy requirements.
A2: Load cell accuracy is influenced by multiple factors including temperature variations, mounting conditions, electrical interference, mechanical stress, and calibration quality. Regular maintenance and proper installation are crucial for maintaining accuracy.
A3: To maximize load cell lifespan, avoid overloading, ensure proper installation, protect from environmental factors, perform regular maintenance, and follow manufacturer guidelines for usage and care.
A4: Common signs include erratic readings, zero drift, nonlinearity, decreased sensitivity, and physical damage. Regular inspection and monitoring can help detect potential issues early.
A5: Select a load cell capacity that is approximately 150-200% of the maximum expected load to ensure accuracy and prevent damage. Consider both static and dynamic loads in your application.
