Measuring weight is a fundamental task in various fields, from industrial applications to personal use in kitchens. One of the most accurate and reliable methods for weight measurement is using a load cell. This article will explore the principles of load cells, their types, applications, and how to set up a weight measurement system using load cells.
A load cell is a transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure the deformation of a material when a load is applied. When the load is applied, the strain gauge deforms, causing a change in its electrical resistance. This change is then converted into a weight measurement.
1. Strain Gauge Load Cells: These are the most widely used load cells. They consist of a metal element that deforms under load, with strain gauges attached to it. The deformation causes a change in resistance, which is measured to determine the weight.
2. Hydraulic Load Cells: These load cells use hydraulic fluid to measure weight. When a load is applied, the fluid pressure changes, which is then converted into a weight measurement. They are often used in heavy-duty applications.
3. Pneumatic Load Cells: Similar to hydraulic load cells, pneumatic load cells use air pressure to measure weight. They are less common but can be useful in specific applications where hydraulic systems are not suitable.
4. Capacitive Load Cells: These load cells measure weight by detecting changes in capacitance caused by the movement of a diaphragm under load. They are less common but can be used in certain applications.
Load cells operate on the principle of converting mechanical force into an electrical signal. When a load is applied to the load cell, it deforms slightly. This deformation is measured by the strain gauges attached to the load cell. The strain gauges are arranged in a Wheatstone bridge configuration, which allows for precise measurement of the resistance change.
The electrical signal generated by the load cell is proportional to the weight applied. This signal is then amplified and converted into a digital format for display or further processing.
Setting up a load cell for weight measurement involves several steps:
1. Choosing the Right Load Cell: Select a load cell that suits your application. Consider factors such as the maximum weight to be measured, the environment (indoor or outdoor), and the required accuracy.

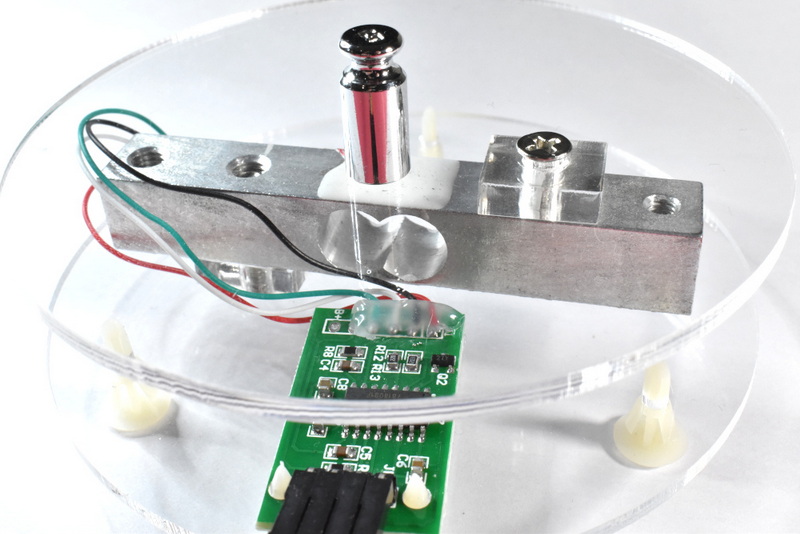

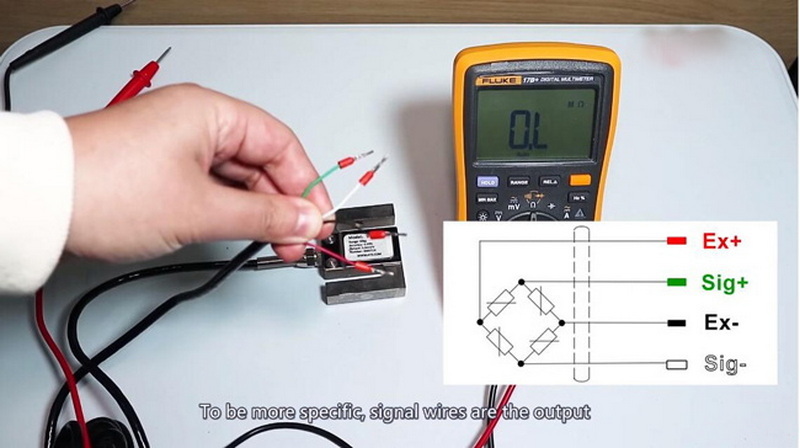

2. Connecting the Load Cell: Load cells typically have four wires: two for the power supply and two for the output signal. Connect the load cell to a suitable amplifier or microcontroller, such as an Arduino, to read the output signal.
3. Calibration: Calibration is crucial for accurate weight measurement. To calibrate the load cell, apply known weights and record the output signal. Use this data to create a calibration curve or adjust the settings in your microcontroller.
4. Testing: After calibration, test the load cell with various weights to ensure it provides accurate readings. Make any necessary adjustments to the calibration settings.
5. Data Display: Connect the output of the load cell to a display unit, such as an LCD screen, to show the weight measurement. Alternatively, you can log the data to a computer for further analysis.
Load cells are used in a wide range of applications, including:
- Industrial Weighing: Load cells are commonly used in industrial scales for weighing products during manufacturing and packaging.
- Medical Equipment: Load cells are used in medical scales to measure patient weight accurately.
- Automotive Testing: Load cells are used in automotive testing to measure the weight of vehicles and components.
- Aerospace: Load cells are used in aerospace applications to measure the weight of aircraft components and payloads.
- Retail: Load cells are used in retail scales for weighing products in grocery stores and markets.
- Accuracy: Load cells provide highly accurate weight measurements, making them suitable for various applications.
- Durability: Load cells are designed to withstand harsh environments and heavy loads, ensuring long-term reliability.
- Versatility: Load cells can be used in various applications, from small scales to large industrial weighing systems.
- Ease of Integration: Load cells can be easily integrated into existing systems, making them a popular choice for many industries.
While load cells offer many advantages, there are also challenges to consider:
- Temperature Sensitivity: Load cells can be affected by temperature changes, which may impact accuracy. Proper calibration and temperature compensation techniques can mitigate this issue.

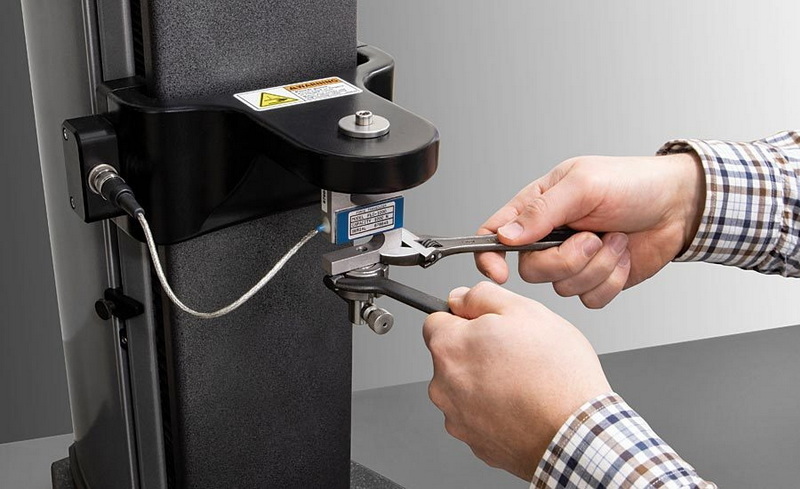

- Installation: Proper installation is crucial for accurate measurements. Ensure that the load cell is mounted correctly and that there are no external forces affecting the readings.
- Signal Conditioning: The output signal from a load cell is often weak and requires amplification and conditioning for accurate readings.
Calibration is a critical step in ensuring the accuracy of load cells. Advanced calibration techniques can enhance the precision of measurements. One such technique is the use of multiple reference weights during calibration. By applying a range of known weights, you can create a more comprehensive calibration curve that accounts for non-linearities in the load cell's response.
Another technique involves using software tools that can automatically adjust the calibration based on real-time data. These tools can help identify drift in measurements over time and make necessary adjustments to maintain accuracy.
When using load cells, you may encounter several common issues. Here are some troubleshooting tips:
- Inconsistent Readings: If the load cell provides inconsistent readings, check for loose connections or mechanical interference. Ensure that the load cell is properly mounted and that there are no external forces acting on it.
- Drift in Measurements: If you notice a gradual change in measurements over time, it may indicate temperature drift or mechanical wear. Regular calibration and maintenance can help mitigate this issue.
- Electrical Noise: Electrical noise can interfere with the signal from the load cell. Use shielded cables and proper grounding techniques to minimize noise and ensure accurate readings.
As technology advances, load cells are becoming more sophisticated. One trend is the integration of wireless technology, allowing for remote monitoring and data collection. This can be particularly useful in industrial settings where multiple load cells are used across different locations.
Another trend is the development of smart load cells that incorporate sensors and data analytics capabilities. These load cells can provide real-time insights into weight measurements, helping businesses optimize their operations and improve efficiency.
Load cells are an essential tool for measuring weight in various applications. Their accuracy, durability, and versatility make them a popular choice in industries ranging from manufacturing to healthcare. By understanding how load cells work and how to set them up, you can effectively measure weight for your specific needs.
A load cell is a component that measures weight by converting force into an electrical signal, while a scale is a complete system that includes a load cell, display, and often additional components for weighing.
Consider factors such as the maximum weight to be measured, the environment (indoor or outdoor), the required accuracy, and the type of load cell that best suits your needs.
Yes, but it is essential to choose load cells that are designed for outdoor use, which may include weatherproofing and protection against environmental factors.
Calibration frequency depends on the application and usage. It is generally recommended to calibrate load cells at least once a year or whenever significant changes occur in the environment or load conditions.
Check for loose connections, mechanical interference, and ensure proper installation. If issues persist, consider recalibrating the load cell or consulting a professional for further assistance.
