Mounting an S type load cell correctly is crucial for ensuring accurate measurements in various applications, from industrial weighing systems to laboratory experiments. This article will provide a comprehensive guide on how to mount an S type load cell, covering essential techniques, best practices, and troubleshooting tips. We will also explore the applications of S type load cells, their maintenance, and calibration processes.

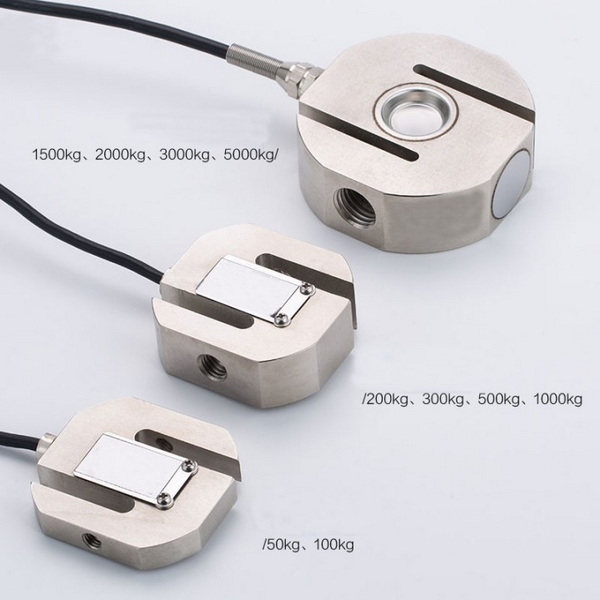

S type load cells are designed to measure both tension and compression forces. Their unique S-shaped design allows for easy installation and accurate readings. Typically, these load cells feature two threaded holes at each end, which facilitate secure mounting. When a force is applied, the load cell generates an electrical signal proportional to the force, making it an essential component in various weighing applications. Understanding the basic principles of how these load cells operate is vital for effective installation and use.
Before mounting an S type load cell, it is essential to gather the necessary tools and materials. You will need a torque wrench, appropriate mounting hardware, and possibly a level to ensure the load cell is installed correctly. Additionally, it is crucial to prepare the mounting surface. The surface should be clean, flat, and free of any debris that could affect the load cell's performance. A flatness tolerance of better than 0.005mm is recommended to ensure accurate readings.

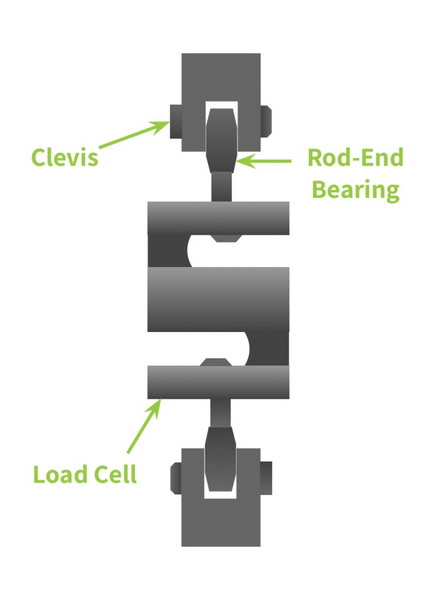

When it comes to mounting an S type load cell, there are several techniques to consider. First, ensure that the load cell is aligned correctly with the load it will measure. Misalignment can lead to inaccurate readings and potential damage to the load cell. The load should be applied to the active area of the load cell, which is typically the central section.

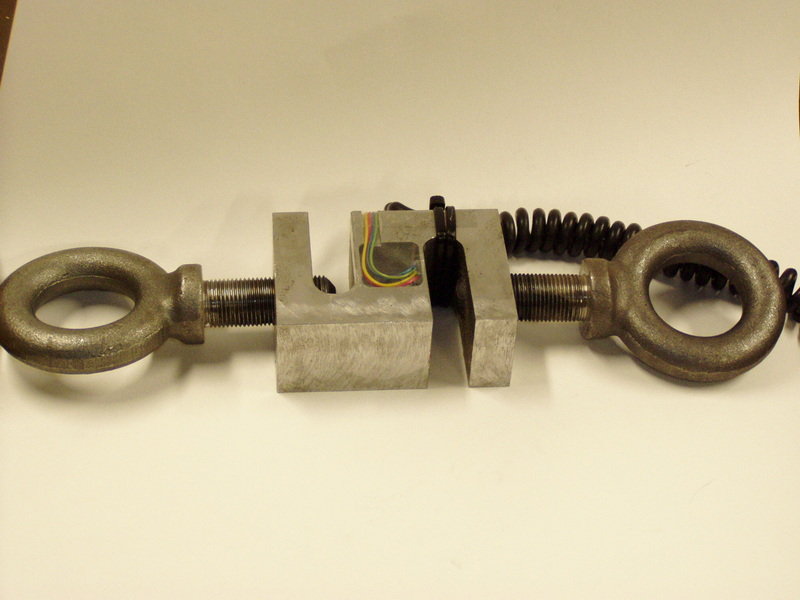

To mount the load cell, use the threaded holes at each end to secure it to a stable surface. It is advisable to use lock washers or thread-locking adhesive to prevent loosening over time. Once the load cell is mounted, double-check the alignment and ensure that it is level. This step is crucial for maintaining accuracy in measurements.
After mounting the load cell, the next step is wiring it correctly. S type load cells typically come with four wires: two for the excitation voltage and two for the output signal. It is essential to follow the manufacturer's wiring diagram to ensure proper connections. Incorrect wiring can lead to erroneous readings or even damage the load cell.
Once the wiring is complete, it is advisable to test the connections using a multimeter. This step will help verify that the load cell is functioning correctly before proceeding to calibration.
Calibration is a critical step in ensuring the accuracy of an S type load cell. This process involves applying known weights to the load cell and recording the output signal. The output should correspond to the known weights within a specified tolerance. If discrepancies are found, adjustments may need to be made to the load cell's settings or the installation itself.
It is recommended to calibrate the load cell regularly, especially if it is used in applications where precision is paramount. Calibration can be performed using specialized equipment or by following the manufacturer's guidelines.
Even with careful installation, issues may arise with S type load cells. Common problems include inaccurate readings, erratic signals, or failure to respond. If you encounter these issues, first check the wiring connections to ensure they are secure and correctly configured.
Next, inspect the mounting to confirm that the load cell is aligned and level. Misalignment can lead to significant errors in measurements. If problems persist, consider consulting the manufacturer's troubleshooting guide or seeking professional assistance.
S type load cells are versatile and can be used in various applications. They are commonly found in industrial settings for weighing hoppers, tanks, and other containers. Their ability to measure both tension and compression makes them ideal for dynamic weighing applications, such as in conveyor systems.
In laboratory settings, S type load cells are used for precise measurements in experiments and research. Their accuracy and reliability make them a preferred choice for many scientific applications.
To ensure the longevity and accuracy of S type load cells, regular maintenance is essential. This includes periodic inspections to check for signs of wear or damage. Additionally, keeping the load cell clean and free from contaminants will help maintain its performance.
It is also advisable to recalibrate the load cell periodically, especially if it is subjected to heavy use or if the environment changes significantly. Following the manufacturer's maintenance guidelines will help ensure optimal performance.
Mounting an S type load cell requires careful planning and execution to ensure accurate measurements. By following the guidelines outlined in this article, you can successfully install and maintain an S type load cell for various applications. Remember to prepare adequately, follow proper mounting techniques, and perform regular maintenance to keep your load cell functioning optimally.
An S type load cell is a type of force transducer designed to measure tension and compression forces, characterized by its S-shaped design.
Mount the load cell securely using the threaded holes at each end, ensuring it is aligned with the load and level.
You will need a torque wrench, mounting hardware, and possibly a level for accurate installation.
It is recommended to calibrate the load cell regularly, especially in applications requiring high precision.
Check the wiring connections, ensure proper alignment, and consult the manufacturer's troubleshooting guide if issues persist.
