A load cell is a transducer that converts a force or weight into an electrical signal. This signal can then be measured and recorded, allowing for precise weight measurements. Load cells are widely used in scales, industrial weighing systems, and various applications where force measurement is required. They are essential in ensuring accuracy and reliability in weight measurement across different industries.
There are several types of load cells, each designed for specific applications:
These are the most common type, utilizing strain gauges to measure deformation caused by applied force. They are known for their accuracy and reliability. Strain gauge load cells are often used in laboratory settings, industrial scales, and various applications requiring precise measurements.

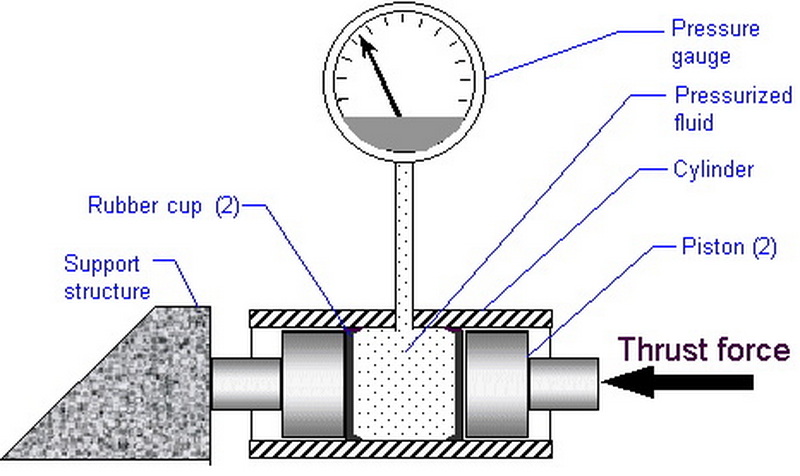

These use hydraulic fluid to measure force. They are often used in heavy-duty applications, such as truck scales and large industrial machines. Hydraulic load cells can handle very high loads and are less affected by environmental conditions.
These operate using air pressure and are suitable for applications where electrical signals cannot be used. Pneumatic load cells are often found in environments where electrical equipment may pose a risk, such as in explosive atmospheres.
These are designed to measure force through bending. They are commonly used in low-capacity applications, such as small scales and laboratory equipment. Bending beam load cells are simple in design and cost-effective.
Load cells operate on the principle of converting mechanical force into an electrical signal. When a load is applied to the load cell, it deforms slightly. This deformation changes the resistance of the strain gauges attached to the load cell, which is then converted into an electrical signal proportional to the applied load.

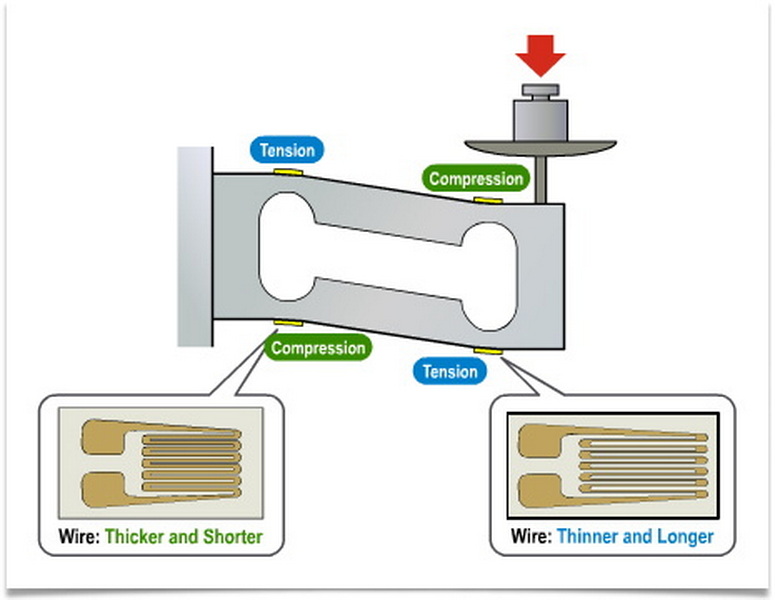

Strain gauges are thin, flexible devices that change resistance when stretched or compressed. When a load is applied to the load cell, the strain gauges experience deformation, leading to a change in their electrical resistance. This change is measured and converted into a weight reading.
Reading a load cell involves several steps, from understanding the setup to interpreting the output signal. Here's a step-by-step guide:
Before reading a load cell, ensure it is properly installed and calibrated. Follow these steps:

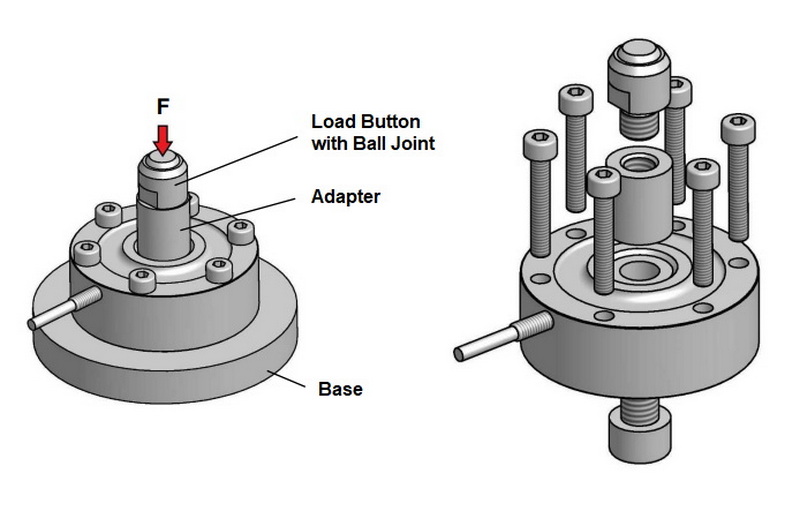

- Mounting: Securely mount the load cell in a stable position, ensuring it is aligned with the load direction. Proper alignment is crucial for accurate readings.
- Wiring: Connect the load cell to a suitable amplifier or signal conditioner. Ensure the wiring is correct to avoid erroneous readings. Use high-quality cables to minimize noise interference.
Calibration is essential for accurate measurements. To calibrate a load cell:
- Apply Known Weights: Use standard weights to apply known loads to the load cell. This step is critical to establish a baseline for measurements.
- Record Output: Measure the output signal for each known weight. This data will help in creating a reliable calibration curve.
- Create a Calibration Curve: Plot the output against the known weights to create a calibration curve. This curve will be used to interpret future readings accurately.
Once calibrated, you can read the output from the load cell. The output is typically in millivolts (mV) or a digital signal, depending on the type of load cell and the connected equipment.
- Analog Output: For load cells with an analog output, use a multimeter to measure the voltage. The voltage will correspond to the applied load based on the calibration curve.
- Digital Output: For digital load cells, the output can be read directly from the display of the connected device or through a computer interface. Digital load cells often provide more straightforward integration with data logging systems.
Interpreting the data involves understanding the relationship between the output signal and the applied load. Use the calibration curve to convert the measured output into a weight reading. This step is crucial for ensuring that the readings are accurate and reliable.
Load cells are used in various applications across different industries:
Load cells are integral to industrial scales, ensuring accurate weight measurements for shipping and receiving goods. They are used in warehouses, distribution centers, and manufacturing plants to monitor inventory and ensure compliance with regulations.
Load cells are used in crash testing and vehicle dynamics testing to measure forces during impact. This data is vital for improving vehicle safety and performance.
Load cells are used in medical scales and devices to ensure accurate weight measurements for patients. They play a crucial role in monitoring health and diagnosing conditions.
Load cells are used in aircraft weighing systems to ensure compliance with safety regulations. Accurate weight measurements are critical for flight safety and performance.
If you encounter issues with load cell readings, consider the following troubleshooting steps:
- Check Connections: Ensure all connections are secure and free from corrosion. Loose or corroded connections can lead to inaccurate readings.
- Inspect for Damage: Look for physical damage to the load cell or strain gauges. Any visible damage may affect performance.
- Recalibrate: If readings are inconsistent, recalibrate the load cell. Regular calibration is essential for maintaining accuracy.
- Environmental Factors: Consider environmental factors such as temperature and humidity, which can affect readings. Load cells should be used within their specified environmental limits.
Signal conditioning is an essential aspect of load cell operation. It involves amplifying and filtering the output signal to improve accuracy and reduce noise. Signal conditioners can convert the analog signal from the load cell into a digital format for easier processing and analysis.
Integrating load cells with data acquisition systems allows for real-time monitoring and analysis of weight measurements. These systems can log data, generate reports, and provide insights into operational efficiency.
Wireless load cells are becoming increasingly popular due to their ease of installation and flexibility. They eliminate the need for cumbersome wiring, making them ideal for applications where mobility is essential.
Understanding how to read load cells is essential for accurate weight measurement in various applications. By following the steps outlined in this guide, you can effectively set up, calibrate, and interpret the data from load cells. Whether in industrial settings, automotive testing, or medical applications, load cells play a crucial role in ensuring precision and reliability.
Analog load cells provide a continuous voltage output proportional to the applied load, while digital load cells convert the signal into a digital format for easier processing and integration with data systems.
Load cells should be calibrated regularly, typically every six months to a year, or whenever they are moved or subjected to significant changes in load conditions.
Yes, but it is essential to choose load cells designed for outdoor use, which are typically weatherproof and resistant to environmental factors such as moisture and temperature fluctuations.
Factors such as temperature, humidity, mechanical stress, and improper installation can affect the accuracy of load cell readings. Regular maintenance and calibration can help mitigate these issues.
Choosing the right load cell depends on several factors, including the required load capacity, environmental conditions, and the type of measurement needed (static or dynamic). Consulting with a load cell manufacturer or supplier can help you make an informed decision.
