Load cells are essential components in various applications, particularly in weighing systems, industrial automation, and load measurement. They convert force or weight into an electrical signal, which can then be processed and displayed. In many scenarios, it is necessary to send the load cell signal to two different places, such as a display unit and a data logging system. This article will explore the methods and considerations for achieving this, providing a comprehensive guide for engineers and hobbyists alike.
A typical load cell system consists of several components:
1. Load Cell: The sensor that measures the weight or force.
2. Signal Conditioning Circuit: This amplifies and filters the signal from the load cell.
3. Microcontroller or Data Acquisition System: This processes the signal and can send it to various outputs.
4. Display Unit: This shows the weight or force measurement.
5. Data Logger: This records the measurements for later analysis.
To send the load cell signal to two different places, you can use several methods. The choice of method depends on the specific requirements of your application, such as the distance between components, the type of load cell, and the desired accuracy.
One of the simplest ways to send a load cell signal to two places is by using a signal splitter. A signal splitter takes the output from the load cell and divides it into two separate signals. This method is straightforward and effective for many applications.
1. Select a Suitable Signal Splitter: Choose a splitter that matches the output type of your load cell (e.g., analog or digital).

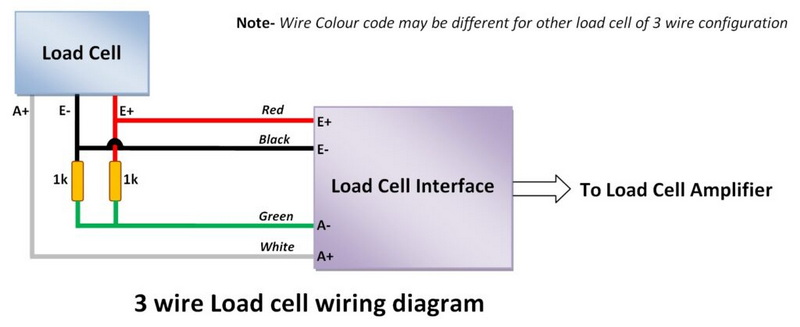

2. Connect the Load Cell: Wire the load cell to the input of the signal splitter.
3. Connect Outputs: Connect the two outputs of the splitter to the desired devices (e.g., display unit and data logger).
4. Power the Splitter: Ensure that the splitter is powered according to its specifications.
Another effective method is to use a microcontroller, such as an Arduino or Raspberry Pi, to read the load cell signal and then send it to multiple outputs. This method allows for more flexibility and control over the data.

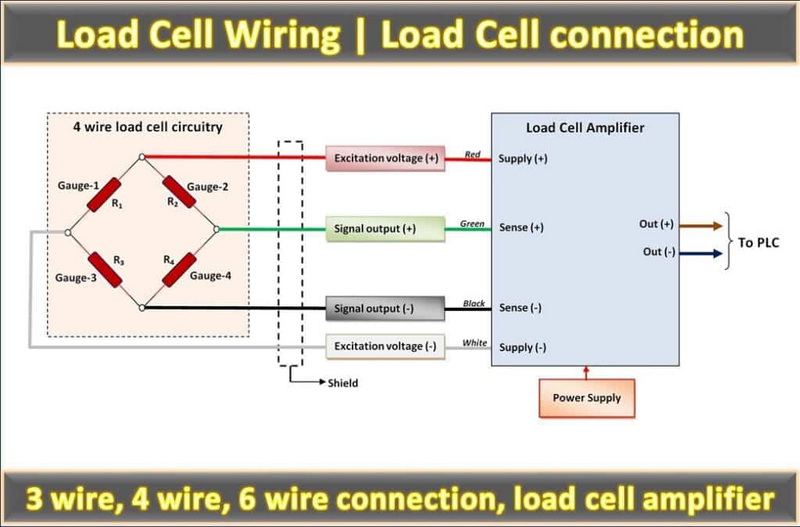

1. Connect the Load Cell to the Microcontroller: Use an appropriate load cell amplifier (like the HX711) to interface the load cell with the microcontroller.
2. Write the Code: Program the microcontroller to read the load cell signal and send it to multiple outputs. This can include sending data to a display and logging it to an SD card.
3. Connect the Outputs: Wire the display and data logger to the microcontroller.
4. Test the System: Ensure that the microcontroller correctly reads the load cell signal and sends it to both outputs.

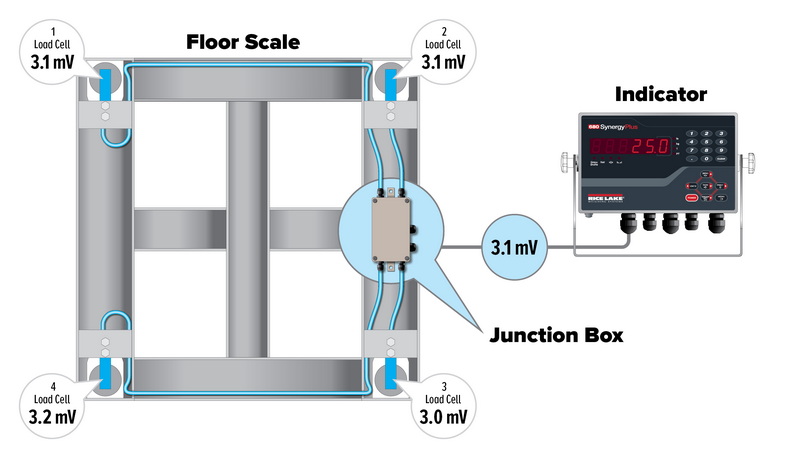

A junction box can also be used to send load cell signals to multiple locations. This method is particularly useful in industrial settings where multiple load cells are used.
1. Select a Junction Box: Choose a junction box that can accommodate the number of load cells and outputs you need.
2. Wire the Load Cells: Connect the load cells to the junction box according to the manufacturer's instructions.
3. Connect Outputs: Wire the outputs from the junction box to the desired devices.
4. Power the System: Ensure that all components are powered correctly.
When sending load cell signals to two places, several factors must be considered to ensure accurate and reliable measurements.

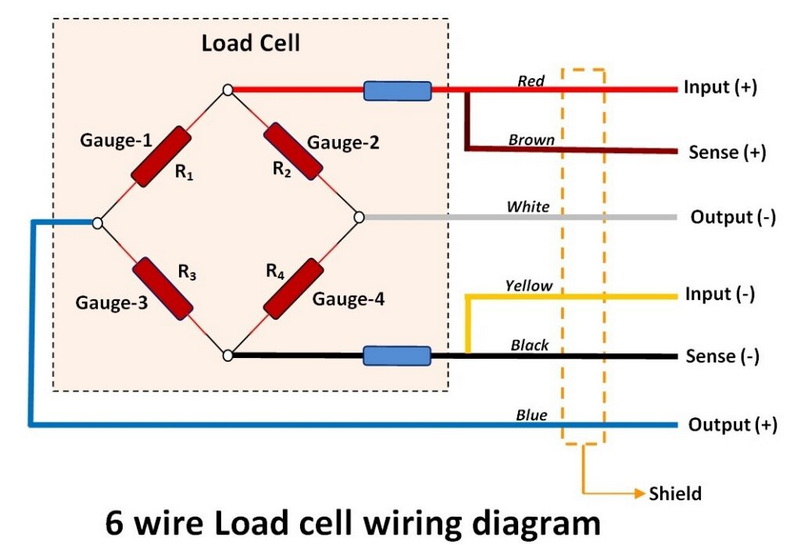

Maintaining signal integrity is crucial, especially over long distances. Use shielded cables to reduce noise and interference. Additionally, keep the wiring as short as possible to minimize signal degradation. The choice of cable can significantly impact the performance of the load cell system. For instance, twisted pair cables are often recommended for differential signals, as they help cancel out electromagnetic interference.
When using multiple outputs, it is essential to calibrate the system to ensure that all devices display the same measurements. This may involve adjusting the gain and offset in the signal conditioning circuit or microcontroller. Calibration should be performed regularly to account for any drift in the load cell's performance over time. A systematic approach to calibration can include using known weights to verify the accuracy of the readings across all outputs.
Ensure that all components are powered correctly. Inconsistent power supply can lead to inaccurate readings and system failures. It is advisable to use a regulated power supply to avoid fluctuations that could affect the load cell's performance. Additionally, consider the power requirements of each component in the system to ensure that the power supply can handle the total load.
Consider the environment in which the load cell will operate. Factors such as temperature, humidity, and vibration can affect the performance of the load cell and associated electronics. For example, extreme temperatures can cause changes in the resistance of the strain gauges, leading to inaccurate readings. Using load cells designed for specific environmental conditions can help mitigate these issues.
Sending load cell signals to two places has numerous applications across various industries:
- Industrial Weighing Systems: In manufacturing, it is common to send weight data to both a display for operators and a data logging system for quality control. This dual output allows for real-time monitoring and historical data analysis, which is crucial for maintaining product quality.
- Research and Development: In laboratories, researchers may need to monitor load cell data in real-time while also logging it for later analysis. This capability is essential for experiments where precise measurements are critical, such as in material testing or structural analysis.
- Automated Systems: In automated processes, load cells can provide feedback to control systems while also sending data to monitoring systems. This feedback loop is vital for ensuring that automated systems operate within specified parameters, enhancing safety and efficiency.
- Agricultural Applications: Load cells are used in agricultural equipment to measure the weight of produce during harvesting. Sending this data to both a display for immediate feedback and a data logger for later analysis can help optimize harvesting processes.
- Transportation and Logistics: In the logistics industry, load cells are used to weigh cargo. Sending weight data to both a display for truck drivers and a central database for inventory management can streamline operations and improve accuracy in shipping.
When working with load cells and sending signals to multiple locations, you may encounter several common issues. Here are some troubleshooting tips:
1. Inconsistent Readings: If the readings from the load cell are inconsistent, check the wiring connections and ensure that all components are properly grounded. Additionally, verify that the load cell is calibrated correctly.
2. Signal Noise: If you experience noise in the signal, consider using shielded cables and ensuring that the wiring is not running parallel to power lines, which can introduce interference.
3. Power Supply Issues: If the system is not powering up or is experiencing fluctuations, check the power supply connections and ensure that the voltage and current ratings are appropriate for all components.
4. Temperature Effects: If the load cell readings vary significantly with temperature changes, consider using a load cell with temperature compensation or implementing a temperature correction algorithm in your microcontroller code.
5. Software Bugs: If using a microcontroller, ensure that the code is free of bugs. Debugging tools and serial output can help identify issues in the code logic.
Sending load cell signals to two places is a common requirement in many applications. By using methods such as signal splitters, microcontrollers, or junction boxes, you can effectively achieve this goal. It is essential to consider factors such as signal integrity, calibration, power supply, and environmental conditions to ensure accurate and reliable measurements.
With the right setup, you can enhance your load cell system's functionality and improve data collection and monitoring capabilities. Whether you are working in an industrial setting or a research laboratory, understanding how to send load cell signals to multiple locations will significantly benefit your projects.
A load cell is a transducer that converts mechanical force or weight into an electrical signal. It typically uses strain gauges that deform under load, changing their electrical resistance, which is then measured and converted into a weight reading.
To ensure accurate readings, regularly calibrate your load cell using known weights, maintain proper wiring connections, and use shielded cables to minimize interference. Additionally, consider environmental factors that may affect performance.
Yes, multiple load cells can be used in a single system. They can be connected to a junction box or a microcontroller that can read and process signals from each load cell, allowing for more complex measurements and data collection.
The most common types of load cells include strain gauge load cells, hydraulic load cells, and pneumatic load cells. Each type has its advantages and is suited for different applications.
To troubleshoot inconsistent readings, check the wiring connections, ensure proper grounding, verify calibration, and inspect for any environmental factors that may be affecting the load cell's performance.
