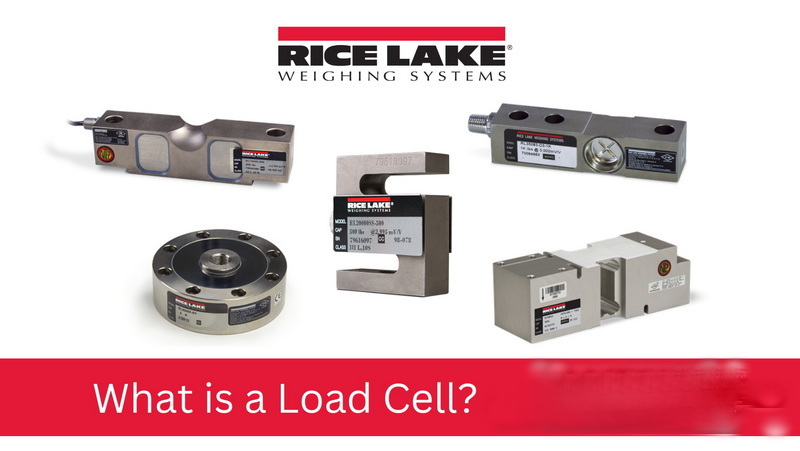

Rice Lake Weighing Systems is a renowned manufacturer of high-quality weighing equipment, including load cells, which are crucial components in various industrial and commercial weighing applications. Load cells are transducers that convert force into an electrical signal, enabling accurate weight measurement. Proper testing and maintenance of these load cells are essential to ensure the reliability and accuracy of weighing systems.
Before delving into the testing procedures, it's important to understand the fundamental principles of load cells. A load cell typically consists of a metal body with strain gauges attached. When a force is applied, the metal body deforms slightly, causing a change in the electrical resistance of the strain gauges. This change is proportional to the applied force, allowing for precise weight measurement.
To effectively test a Rice Lake load cell, you'll need the following equipment:
1. Digital multimeter
2. Calibration weights
3. Load cell simulator (optional)
4. Rice Lake indicator or signal conditioning transmitter
5. Load cell cable tester (optional)
Using the right equipment is crucial for accurate testing. A high-quality digital multimeter ensures precise voltage readings, while certified calibration weights provide a reliable reference for weight measurements. Rice Lake offers specialized tools like the Load Cell EZ Test, which can simplify the testing process.
Before conducting any electrical tests, perform a thorough visual inspection of the load cell and its connections. Look for signs of physical damage, corrosion, or loose wiring. Ensure that the load cell is properly mounted and aligned according to the manufacturer's specifications.
One of the most critical tests is checking the load cell signal. This process verifies that the load cell is producing the correct electrical output in response to applied weight. Here's how to do it:
1. Connect the load cell to a Rice Lake indicator or signal conditioning transmitter.
2. Set up your digital multimeter to measure millivolts (mV).
3. Apply power to the system and allow it to warm up for a few minutes.
4. With no weight on the scale, measure the output signal (zero balance).
5. Apply a known weight (preferably at least 50% of the load cell capacity).
6. Measure the output signal again and calculate the change in mV/V.
For a visual guide on checking load cell signals, watch this informative video from Rice Lake:
This test checks for moisture ingress or internal damage that could affect the load cell's performance:
1. Disconnect the load cell from any electronics.
2. Use a megohmmeter to measure resistance between the load cell body and each wire.
3. The resistance should be greater than 5000 megohms for most applications.
The bridge resistance test ensures that the internal strain gauge circuit is intact:
1. Set your multimeter to measure resistance in ohms.
2. Measure the resistance between the excitation leads (usually red and black).
3. Compare the measured value to the manufacturer's specifications.
When basic tests don't reveal the issue, more advanced troubleshooting may be necessary. Rice Lake provides comprehensive resources for advanced load cell troubleshooting, including:
These tests involve measuring the load cell output at zero load and full capacity to ensure linearity and accuracy across the entire range.
The creep test involves applying a constant load over an extended period and monitoring the output for any drift, which could indicate internal issues with the load cell.
Some applications require testing the load cell's performance across different temperatures to account for thermal expansion and contraction.
Proper calibration is essential for maintaining accuracy in weighing systems. Rice Lake offers various calibration methods, including:
1. Known weight calibration
2. Electronic calibration using a load cell simulator
3. Span calibration for multi-point linearization
For a detailed guide on calibrating Rice Lake scales, refer to this video:
Regular maintenance is key to ensuring long-term accuracy and reliability of Rice Lake load cells and weighing systems. Some best practices include:
1. Implementing a regular cleaning schedule
2. Protecting load cells from environmental factors (moisture, dust, etc.)
3. Conducting periodic performance checks
4. Keeping detailed records of all tests and calibrations

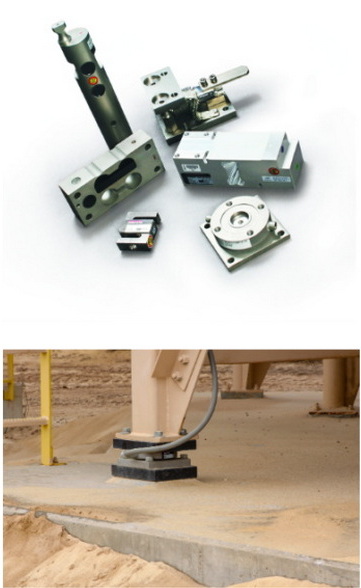

Rice Lake load cells are used in a wide range of industrial applications, including:
1. Manufacturing and process control
2. Pharmaceutical production
3. Food and beverage industry
4. Logistics and material handling
5. Agricultural weighing
Each application may have specific testing and maintenance requirements to ensure optimal performance and compliance with industry standards.
Compliance with weight measurement standards is crucial for many industries. Rice Lake load cells are designed to meet various national and international standards, including:
1. NTEP (National Type Evaluation Program) in the United States
2. OIML (International Organization of Legal Metrology) for international trade
3. FDA requirements for pharmaceutical and food industries
When testing and calibrating load cells, it's important to consider the specific standards applicable to your industry and region.
Understanding how to interpret load cell signal output is crucial for effective testing and troubleshooting. The typical output of a Rice Lake load cell is measured in millivolts per volt (mV/V). This value represents the ratio of the output signal to the excitation voltage.For example, a load cell with a 2 mV/V rated output will produce a 10 mV signal when excited with 5V and loaded to its full capacity. Deviations from expected values can indicate issues such as:
1. Overloading or shock loading damage
2. Moisture ingress
3. Faulty wiring or connections
4. Strain gauge failure
Proper programming of the scale indicator is essential for translating the load cell signal into accurate weight readings. Rice Lake offers a range of indicators with user-friendly interfaces for setup and calibration. Key programming considerations include:
1. Setting the correct capacity and increment size
2. Configuring multi-point linearization for non-linear load cells
3. Implementing motion detection and auto-zero tracking
4. Setting up filters for stable readings in dynamic environments
Testing Rice Lake load cells is a critical process that ensures the accuracy and reliability of weighing systems across various industries. By following the steps outlined in this guide and utilizing the proper equipment and techniques, you can maintain the performance of your load cells and address potential issues before they impact your operations.
Remember that regular testing, combined with proper maintenance and calibration, is key to maximizing the lifespan and accuracy of your Rice Lake load cells. Always refer to the manufacturer's guidelines and industry standards when implementing your testing and maintenance procedures.
A1: The frequency of testing depends on various factors, including usage, environmental conditions, and industry requirements. As a general rule, perform basic checks monthly and more comprehensive tests quarterly or bi-annually. For critical applications, more frequent testing may be necessary.
A2: Sudden load cell failure can be caused by several factors, including:
- Overloading beyond the rated capacity
- Electrical surges or lightning strikes
- Severe physical impact or shock loading
- Extreme temperature fluctuations
- Chemical exposure or corrosion
A3: Yes, many tests can be performed with the load cell in place, such as checking the signal output and performing calibration checks. However, for more thorough diagnostics or if a problem is suspected, it may be necessary to remove the load cell for isolated testing.

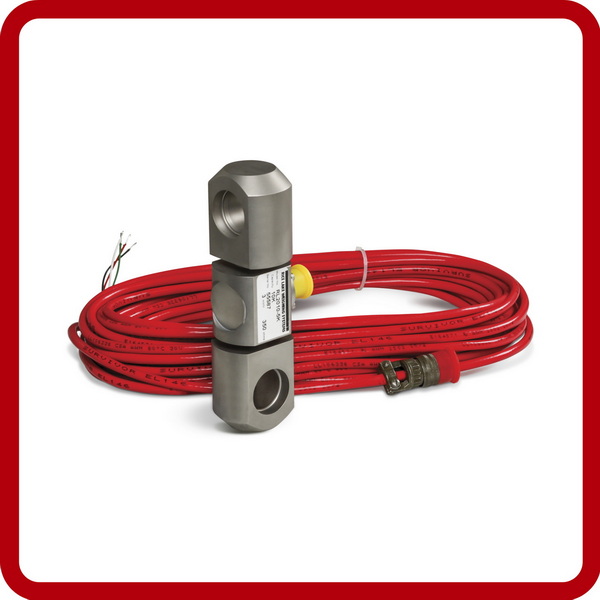

A4: Compression load cells are designed to measure forces pushing down on them, while tension load cells measure pulling forces. The main difference lies in their physical design and how they're installed in a weighing system. Testing procedures are similar, but the direction of applied force during testing will differ.
A5: Environmental factors can significantly impact load cell performance. Temperature fluctuations can cause thermal expansion or contraction, affecting accuracy. Humidity can lead to moisture ingress, potentially causing corrosion or electrical leakage. Vibrations and wind can introduce noise in the signal. When testing load cells, it's important to consider these environmental factors and how they might influence your results.
