How To Troubleshoot Common Issues With Lebow Tension Load Cells?

Views: 222     Author: Leah     Publish Time: 2025-01-18      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Understanding Lebow Tension Load Cells

>> Key Features of Lebow Tension Load Cells

Common Issues with Lebow Tension Load Cells

>> 1. Zero Balance Drift

>> 2. Unstable Readings

>> 3. Inaccurate Measurements

>> 4. Physical Damage

>> 5. Wiring Issues

Step-by-Step Troubleshooting Process

Preventative Maintenance Tips

Conclusion

FAQ

>> 1. What should I do if my Lebow tension load cell shows zero balance drift?

>> 2. How can I reduce electrical noise interference in my system?

>> 3. What causes unstable readings in a tension load cell?

>> 4. How often should I calibrate my Lebow tension load cell?

>> 5. Can environmental factors affect the performance of my load cell?

Citations:

Lebow tension load cells are essential devices in various industrial applications, measuring the tension in cables, ropes, and other structures. However, like any precision instrument, they can encounter issues that affect their performance. This article provides a comprehensive guide on troubleshooting common problems associated with Lebow tension load cells, ensuring accurate and reliable measurements.

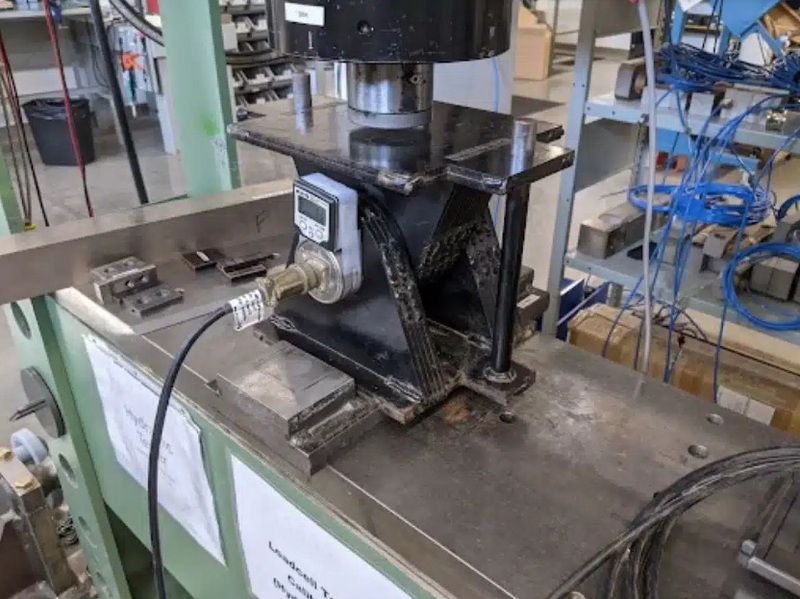

Lebow Force Sensors

Understanding Lebow Tension Load Cells

Lebow tension load cells operate on the principle of converting mechanical force into an electrical signal. They are typically used in applications requiring precise measurements of tension forces. These load cells are designed to handle both tension and compression, making them versatile for various applications.

Key Features of Lebow Tension Load Cells

- High Accuracy: Lebow load cells provide precise measurements with minimal error.

- Durability: Constructed from robust materials, they can withstand harsh environments.

- Versatility: Suitable for both tension and compression measurements.

Common Issues with Lebow Tension Load Cells

Despite their reliability, Lebow tension load cells may experience several issues that can compromise their functionality. Below are some common problems and their potential solutions:

1. Zero Balance Drift

Symptoms: The load cell does not return to zero when unloaded.

Causes:

- Mechanical stress or overload.

- Environmental factors such as temperature changes.

- Internal damage to the strain gauges.

Solutions:

- Recalibrate the load cell by following the manufacturer's guidelines.

- Inspect for physical damage and replace if necessary.

2. Unstable Readings

Symptoms: Fluctuating values when a constant load is applied.

Causes:

- Electrical noise interference.

- Poor grounding or shielding.

- Vibration from nearby machinery.

Solutions:

- Ensure proper grounding of the load cell and its connections.

- Use shielded cables to minimize electrical noise.

- Isolate the load cell from vibration sources.

3. Inaccurate Measurements

Symptoms: Readings do not match expected values.

Causes:

- Incorrect calibration.

- Environmental factors affecting performance (e.g., temperature, humidity).

Solutions:

- Recalibrate the load cell using known weights.

- Monitor environmental conditions and adjust installation accordingly.

4. Physical Damage

Symptoms: Visible cracks or deformations on the load cell body.

Causes:

- Overloading beyond rated capacity.

- Improper handling during installation or use.

Solutions:

- Replace damaged load cells immediately to prevent further inaccuracies.

- Implement training for staff on proper handling techniques.

5. Wiring Issues

Symptoms: No output signal or erratic readings.

Causes:

- Loose or damaged connections.

- Faulty wiring harnesses.

Solutions:

- Inspect all wiring connections for integrity and secure them properly.

- Replace damaged cables or connectors as needed.

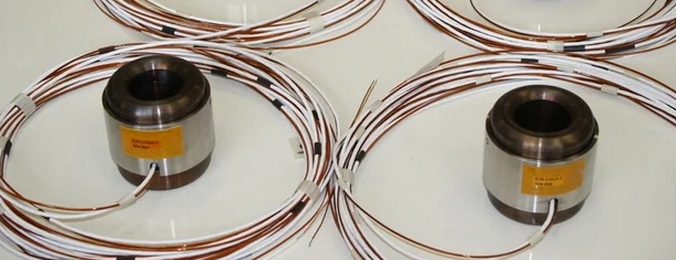

lebow tension load cell

Step-by-Step Troubleshooting Process

To effectively troubleshoot issues with Lebow tension load cells, follow these systematic steps:

1. Visual Inspection

- Check for any visible signs of damage on the load cell and its wiring.

- Ensure that all connections are secure and free from corrosion.

2. Electrical Testing

- Measure the output voltage using a multimeter while applying known weights.

- Compare results with the specifications in the datasheet to identify discrepancies.

3. Calibration Check

- Perform a zero balance test by ensuring the output reads zero when no weight is applied.

- If necessary, recalibrate according to manufacturer instructions.

4. Environmental Assessment

- Monitor environmental conditions such as temperature and humidity that may affect performance.

- Implement protective measures if extreme conditions are present.

5. Professional Assistance

- If issues persist after performing these checks, consult with a professional technician familiar with Lebow load cells for further evaluation and repair.

Preventative Maintenance Tips

To minimize issues with Lebow tension load cells, consider implementing these preventative maintenance practices:

- Regularly calibrate load cells according to a set schedule.

- Conduct routine inspections for physical damage or wear.

- Maintain proper environmental controls to protect against temperature fluctuations and moisture ingress.

Conclusion

Troubleshooting Lebow tension load cells requires a systematic approach to identify and resolve common issues effectively. By understanding potential problems and implementing preventative measures, users can ensure accurate measurements and extend the lifespan of their load cells. Regular maintenance and calibration are key components in maintaining optimal performance in demanding industrial environments.

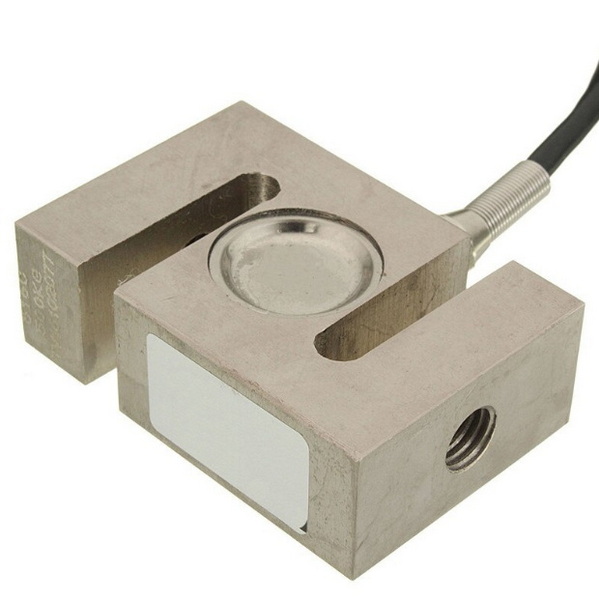

s lebow tension load cell

FAQ

1. What should I do if my Lebow tension load cell shows zero balance drift?

To address zero balance drift, recalibrate your load cell according to the manufacturer's guidelines and inspect for any physical damage that may require repair or replacement.

2. How can I reduce electrical noise interference in my system?

Ensure proper grounding of your system and use shielded cables to minimize electrical noise interference affecting your load cell readings.

3. What causes unstable readings in a tension load cell?

Unstable readings can be caused by electrical noise, poor grounding, or vibrations from nearby machinery. Address these issues by isolating the load cell from vibrations and ensuring proper grounding.

4. How often should I calibrate my Lebow tension load cell?

Calibration frequency depends on usage but is generally recommended at least once a year or before critical measurements to ensure accuracy.

5. Can environmental factors affect the performance of my load cell?

Yes, environmental factors such as temperature changes and humidity can impact the performance of your load cell. It is essential to monitor these conditions and make necessary adjustments during installation.
