In high-precision industries such as solar energy, screen printing, lithium battery production, flexible electronics, and industrial roller manufacturing, even slight surface unevenness can directly affect product quality, production yield, and equipment lifespan.
Traditional flatness inspection methods are often:
Time-consuming
Dependent on operator experience
Difficult to quantify
Unable to visualize pressure distribution in real time
The S4 Surface Flatness Detection System (SFD) changes this by combining ultra-thin film pressure sensing technology with wireless data acquisition and intelligent software analysis.
The result is a portable, fast, and highly visual flatness inspection solution designed for modern industrial environments.
The S4 Surface Flatness Detection System (SFD) is a portable pressure distribution measurement system used to evaluate:
Scraper flatness
Roller contact pressure
Surface pressure uniformity
Mechanical alignment consistency
Dynamic pressure distribution during operation
The system wirelessly connects to a tablet or computer and displays real-time pressure mapping data through dedicated software.
It allows operators to quickly determine:
NG/OK status
Pressure concentration areas
Uneven contact points
Surface deformation issues
Installation or alignment problems
The SFD system provides intuitive pressure mapping through graphical software visualization. Operators can immediately observe pressure distribution changes during operation.
This significantly improves inspection efficiency compared with conventional feeler gauges or manual checking methods.
The collector adopts a 2.4GHz wireless communication design, allowing easy on-site inspection without complicated cable setups.
Advantages include:
Faster deployment
Greater mobility
Convenient field testing
Reduced wiring interference
The SF2825 thin-film sensor features:
· 1024 sensing points
· 32 × 32 sensing matrix
· High-resolution pressure mapping
· Precise flatness evaluation
This enables accurate detection of localized pressure variations that are often invisible to traditional inspection tools.

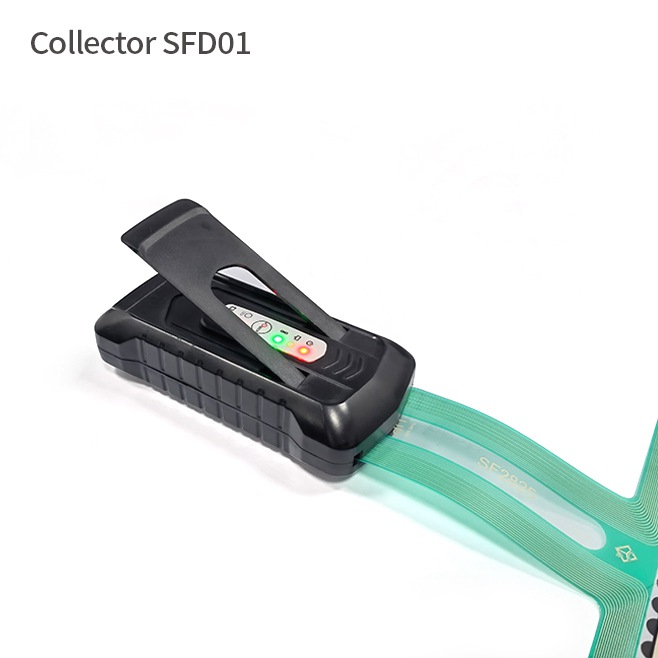

The SFD01 collector is responsible for:
· Data acquisition
· Wireless transmission
· Sensor communication
· Real-time scanning
| Parameter | Specification |
| Dimension | 140 × 66 × 35 mm |
| Communication | 2.4GHz Wireless |
| Scan Frequency | 100Hz |
| Sensing Channels | 1024 |
The ultra-thin pressure sensor captures dynamic pressure distribution across the target surface.
| Parameter | Specification |
| Sensing Area | 281mm × 250mm |
| Sensing Points | 1024 |
| Matrix Layout | 32 × 32 |
| Point Density | 1.4 sensing points/cm2 |
| Pressure Range | 10 PSI |
The software platform supports:
· Real-time pressure graphs
· Data storage
· One-click export
· Historical comparison
· Pressure trend analysis
· Visual NG/OK evaluation
The interface is intuitive and suitable for both engineers and production technicians.
The system operates by placing the thin-film pressure sensor between contacting surfaces.
When pressure is applied:
1. The sensor captures force distribution data
2. The collector acquires and transmits data wirelessly
3. The software converts the data into visual pressure maps
4. Operators analyze flatness and pressure consistency instantly
This process allows fast and repeatable industrial inspection.
One of the most common applications is in solar cell screen printing systems.
If the scraper is uneven:
· Printing pressure becomes inconsistent
· Silver paste distribution changes
· Solar cell appearance quality decreases
· Photoelectric conversion efficiency may decline
Traditional inspection methods often fail to detect small pressure inconsistencies.
Using the SF2825 thin-film sensor:
· The pressure distribution of the scraper is measured during printing
· Uneven pressure zones are clearly visualized
· Operators can immediately adjust scraper alignment
This helps optimize:
· Printing quality
· Process stability
Production efficiency
The SFD system can inspect:
· Rubber rollers
· Coating rollers
· Laminating rollers
· Conveyor rollers
It helps identify:
· Uneven wear
· Deformation
· Pressure imbalance
· Installation errors
The system can evaluate:
· Fixture pressure consistency
· Clamping uniformity
· Surface contact quality
This is especially useful in precision electronics manufacturing.
Suitable for:
· Industrial automation systems
· Robotic pressure calibration
· Precision assembly equipment
· Contact force analysis
Traditional methods often require repeated manual adjustments.
The SFD system delivers:
· Real-time feedback
· Rapid setup
· Faster troubleshooting
Unlike subjective manual inspection, the SFD system provides:
· Numerical pressure data
· Visual distribution graphs
· Exportable reports
This improves process traceability and quality control.
The compact collector design makes the system suitable for:
· Production lines
· Maintenance environments
· On-site engineering inspection
· Field service applications
Thin film pressure sensors are increasingly used in advanced industrial inspection because they offer:
· Ultra-thin structure
· Flexible installation
· High spatial resolution
· Dynamic response capability
· Accurate surface pressure analysis
Compared with conventional load measurement systems, thin-film sensors provide much more detailed surface contact information.
A: A surface flatness detection system is an inspection solution used to analyze pressure distribution and evaluate surface contact uniformity between mechanical components.
A: Common industries include solar manufacturing, screen printing, electronics, automation, semiconductor processing, and roller production..
A: A thin film pressure sensor converts applied pressure into electrical signals, allowing software to display real-time pressure distribution maps.
A: Wireless systems offer easier installation, better portability, faster setup, and improved on-site inspection efficiency.
A: Yes. The software supports data saving and one-click export for quality analysis and reporting.
