S4 SURFACE FLATNESS DETECTION SYSTEM (SFD) |
The SFD (Surface Flatness Detection System) fatness detection equipment is mainly used for rapid on-sitedebugging of scrapers, rollers, and machines. By connecting wirelessly to the tablet (which needs to be pur-chased by oneself), operators can quickly check the flatness through the software. The product has a smallsize and strong portability, making it the first choice for on-site inspection personnel.
The software matched with the system is installed on the tablet (purchased by oneself), and the displayedfatness can be saved and exported with one click. Operators can set product standards and achieve one clickNG/OK judgment.

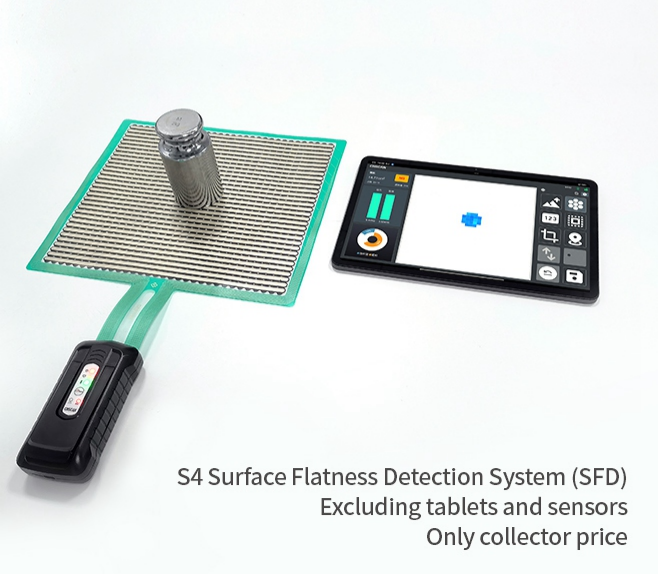

The SFD system includes |
| SFD01 collection device 1 set |

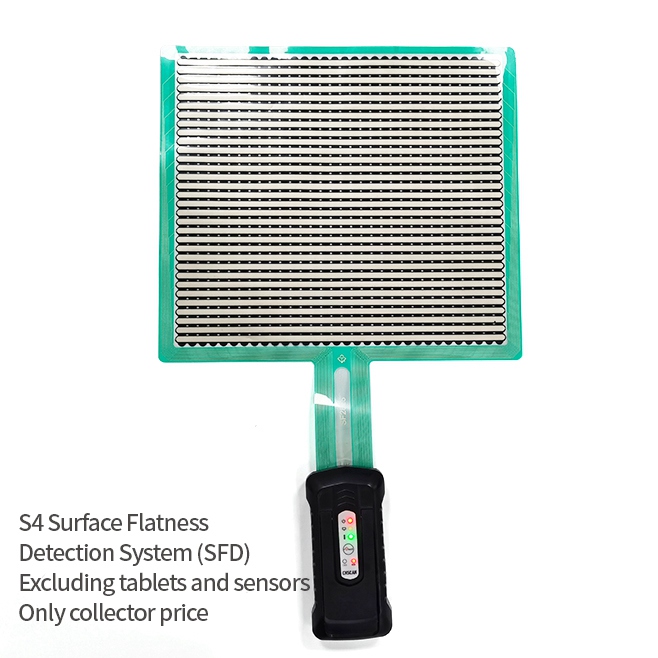

| SF series thin film sensor 2 sheets |
| System software installation package 1 copy |
Advantages of SFD system |
| express setup APP for immediate use |
| Quick start One click connection with computer |
| visual analysis Intuitively display NG/OK |
 |
|
|

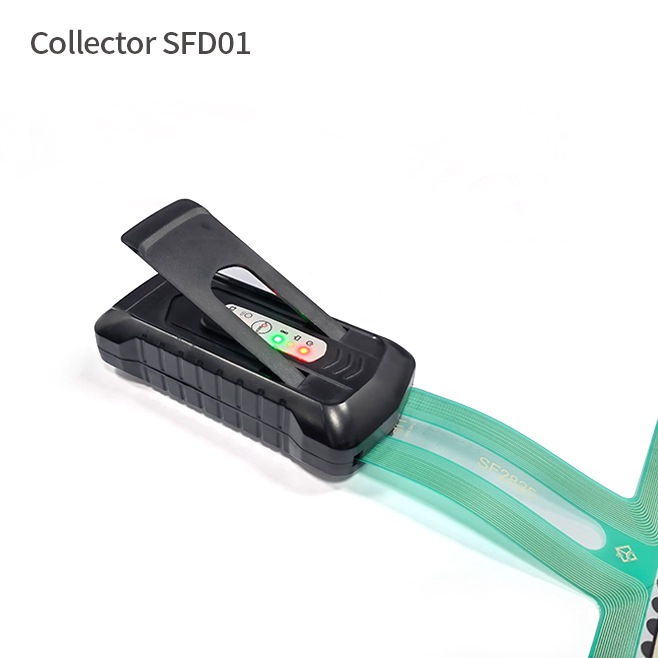

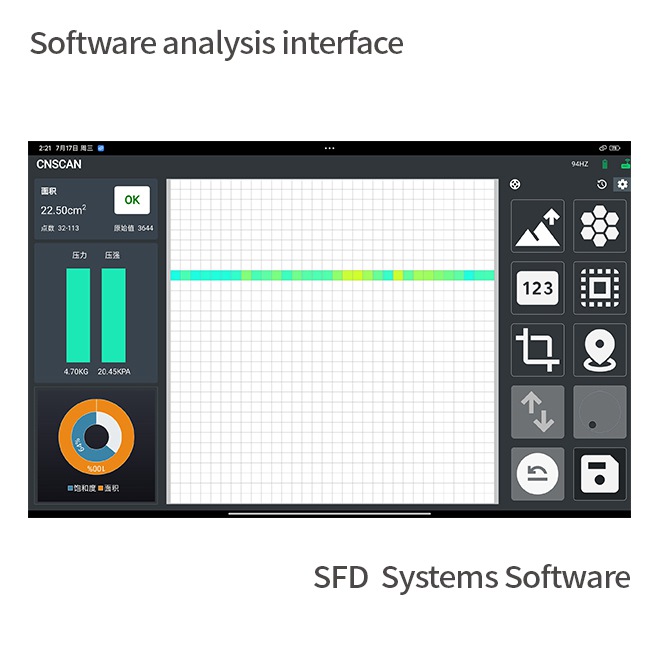

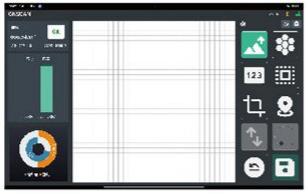

SFD Systems Software | Collector SFD01 | SF2825 |

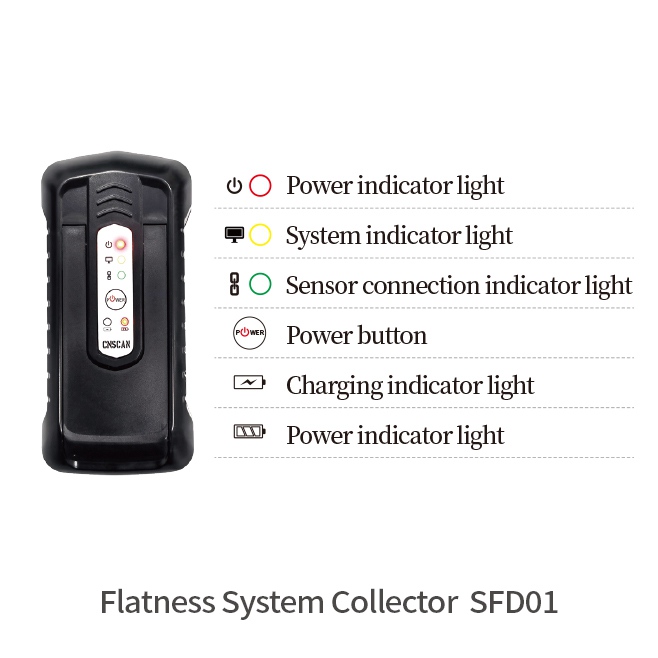

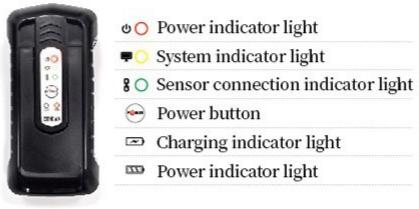

| SFD01 parameter collector | |||
| Dimension | Communication method | Scan frequency | Number of sensing points |
| 140*66*35mm | 2.4GHz wireless network | 100Hz | 1024 |

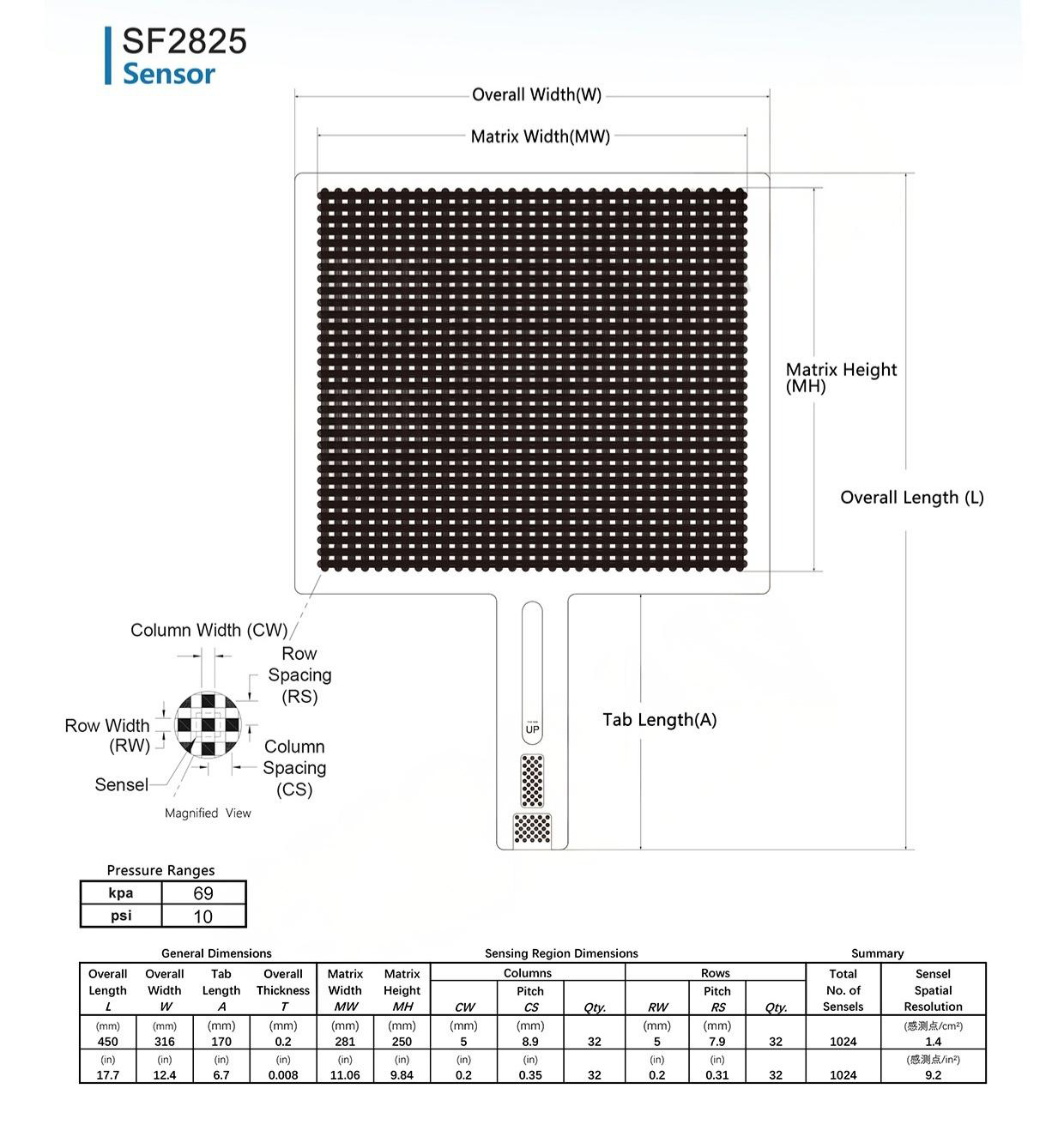

| SF2825 parameter |
| Sensing area 281mm *250mm |
| Number of sensing points 1024, 32 rows *32 columns |
| Measurement point density 1.4 Sensing points/cm2 |
| Range 10PSI |

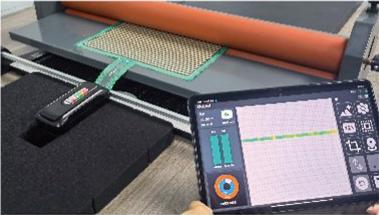

Application Example of S4 Surface Flatness Detection System (SFD)Measurement of pressure distribution of screen printing scraper |
If the screen printing scraper for solar cells is not flat, it can affect the appearance quality of the solarcells and may also have a negative impact on their photoelectric conversion efficiency. Use a thin film pressuresensor to accurately measure the pressure distribution exerted by the scraper on the screen template duringthe printing process. Assist in evaluating the flatness of the scraper and its performance during the printingprocess

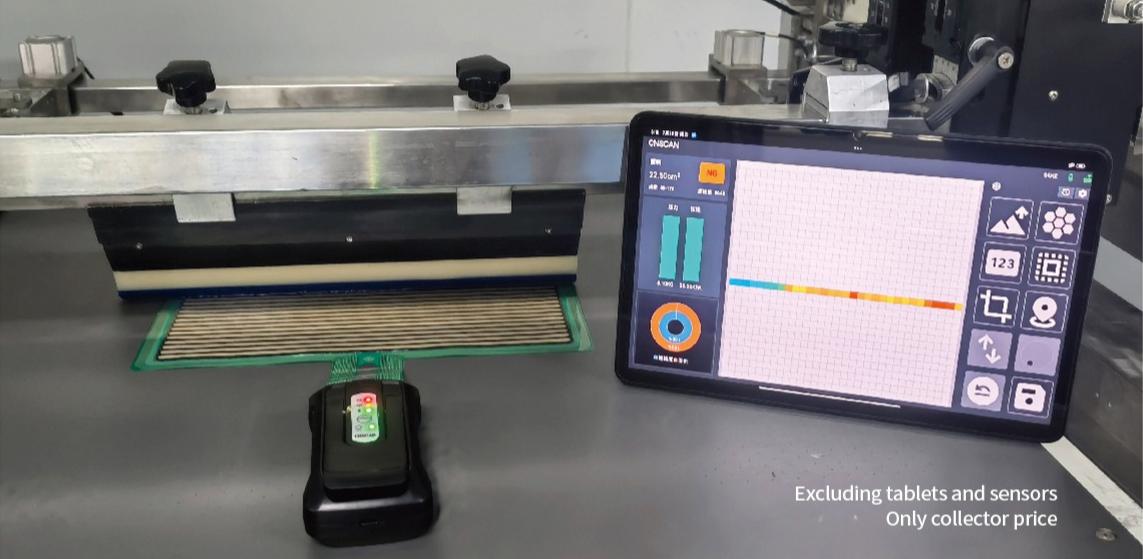

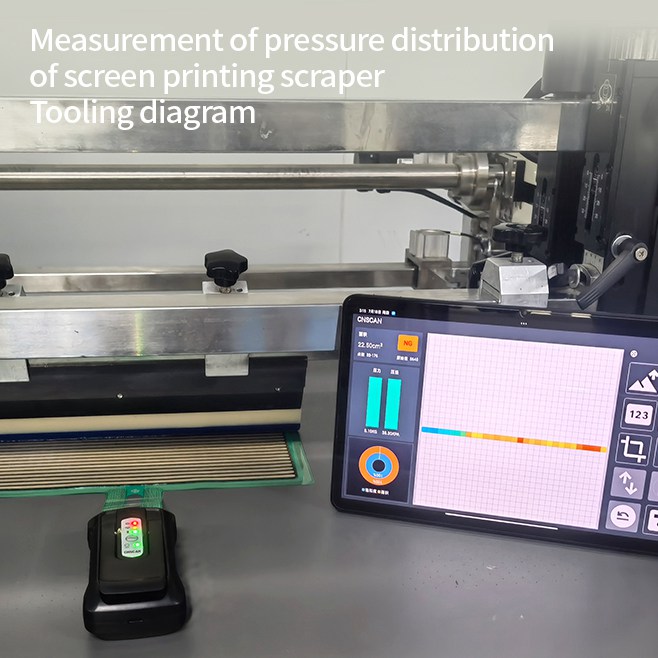

Place the SF2825 sensor on the screen of the screen printing, set the downward pressure of the scraper,and then observe the pressure distribution of the scraper during the stroke.
After testing, it has been fully demonstrated that the thin film sensor is efficient and accurate in detectingthe flatness of the scraper, and can promptly detect and prompt us to take corresponding measures for adjust-ment or repair.
Application Example of S4 Surface Flatness Detection System (SFD) |

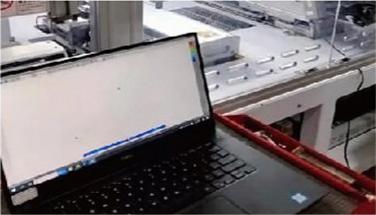

| Measurement of pressure distributionof screen printing scraper | Flatness measurement of screenframe fixture | Roller flatness measurement |
 |  |  |
SFD（Surface Flatness Detection System）FAQ |
A: A surface flatness detection system is an inspection solution used to analyze pressure distribution and evaluate surface contact uniformity between mechanical components.
A: Common industries include solar manufacturing, screen printing, electronics, automation, semiconductor processing, and roller production..
A: A thin film pressure sensor converts applied pressure into electrical signals, allowing software to display real-time pressure distribution maps.
A: Wireless systems offer easier installation, better portability, faster setup, and improved on-site inspection efficiency.
A: Yes. The software supports data saving and one-click export for quality analysis and reporting.
