Load cells are crucial components in various weighing systems, from industrial scales to precision laboratory equipment. These devices convert force into electrical signals, allowing for accurate weight measurements. However, like any mechanical or electronic component, load cells can fail or become inaccurate over time. Understanding how to identify a bad load cell is essential for maintaining the reliability and accuracy of your weighing systems.
Before delving into the signs of a bad load cell, it's important to understand what a load cell is and how it functions.

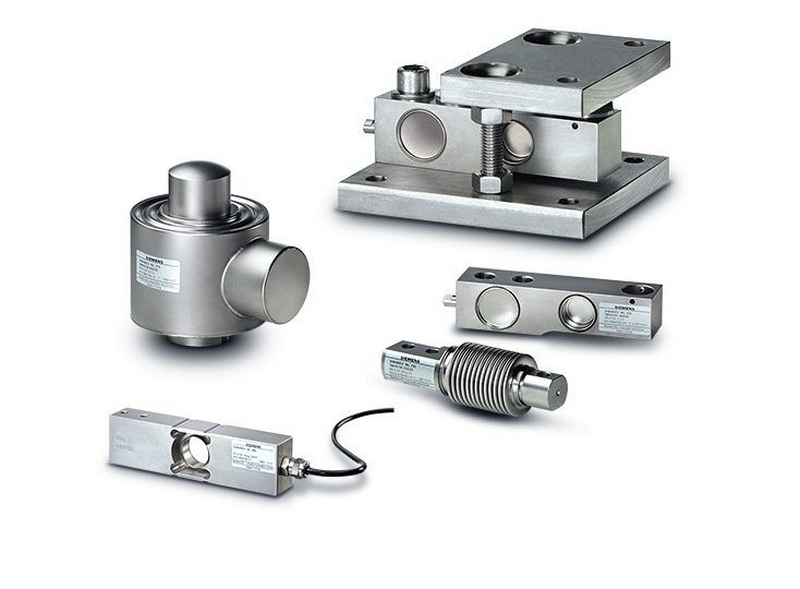

A load cell is a transducer that converts force into an electrical signal. It typically consists of a metal body with strain gauges attached. When a force is applied, the metal body deforms slightly, causing the strain gauges to change their electrical resistance. This change in resistance is then converted into a voltage output, which is proportional to the applied force.
Identifying a bad load cell early can save time, money, and prevent inaccurate measurements. Here are some key indicators that your load cell might be failing:
One of the most common signs of a failing load cell is inconsistency in readings, also known as load cell drift. If you notice that the same item being weighed produces different results each time, it's a clear indication that your load cell has a performance problem.
A properly functioning load cell should provide consistent and repeatable results. If you're getting different readings for the same weight, even after recalibration, it might be a sign that your load cell is deteriorating.
After removing a load, the scale should return to zero. If it doesn't, or if it takes an unusually long time to return to zero, this could indicate a problem with the load cell.
If your scale displays erratic or fluctuating readings when a stable load is applied, it could be a sign of a bad load cell or issues with the signal processing.
While all load cells are somewhat affected by temperature, a bad load cell might show excessive sensitivity to temperature fluctuations, leading to inaccurate readings as ambient temperatures change.
When you suspect a load cell might be bad, there are several troubleshooting techniques you can employ to diagnose the problem:
Start with a visual inspection of the load cell and its surrounding components:
- Check for any visible damage, such as cracks, dents, or corrosion on the load cell body.
- Inspect the cables and connections for any signs of wear, fraying, or loose connections.
- Look for any debris or foreign objects that might be interfering with the load cell's operation.
One of the most effective ways to test a load cell is by using a digital multimeter. This method can help you check the load cell's resistance and output.
Here's how to perform a basic load cell test with a multimeter:
1. Disconnect the load cell from any power source or instrumentation.
2. Set your multimeter to measure resistance (ohms).
3. Measure the resistance between the excitation leads (usually red and black).
4. Measure the resistance between the signal leads (usually green and white).
5. Check for any shorts between the shield (if present) and any of the other wires.
To check the load cell's output:
1. Connect the load cell to a stable power supply (usually 5-15 VDC).
2. Set your multimeter to measure millivolts (mV).
3. Connect the multimeter to the signal output wires.
4. Apply a known weight to the load cell (preferably near its rated capacity).
5. The output should be proportional to the applied weight and within the specified range in the datasheet.

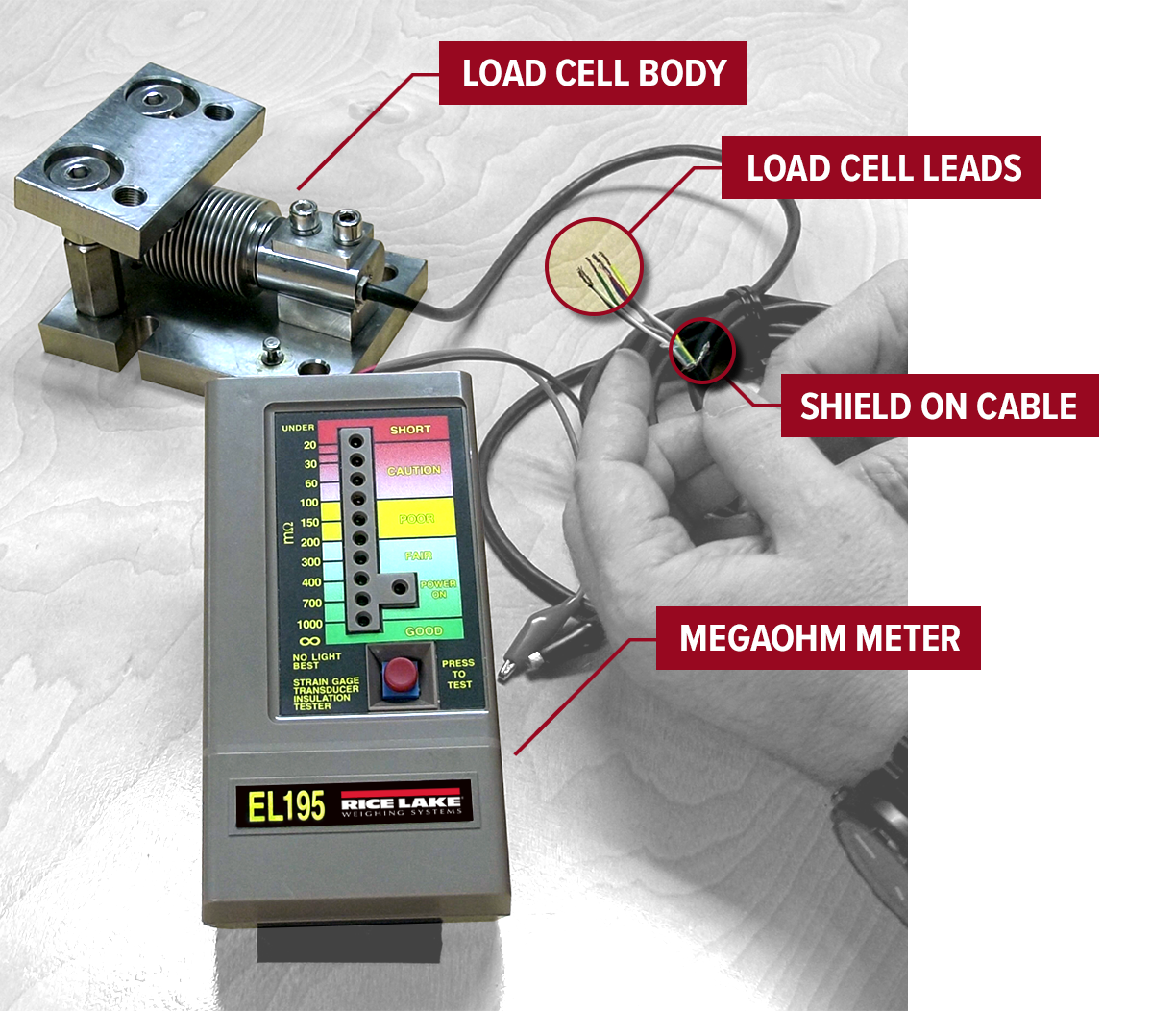

An insulation resistance test can help detect moisture ingress or internal shorts:
1. Use a megohmmeter (insulation tester).
2. Connect one lead to the load cell's body and the other to all the wires shorted together.
3. Apply the test voltage (typically 50-100V for strain gauge load cells).
4. The insulation resistance should be greater than 5000 megohms for a good load cell.
Understanding the common causes of load cell failure can help in prevention and troubleshooting:
Repeatedly exceeding a load cell's rated capacity can cause permanent damage. Always ensure that the total weight, including any dead load, doesn't exceed the load cell's maximum capacity.
Sudden impacts or drops can damage load cells. Implement shock-absorbing mechanisms and proper handling procedures to minimize this risk.
Exposure to extreme temperatures, moisture, or corrosive substances can degrade load cell performance. Use appropriate environmental protection and choose load cells rated for your operating conditions.
Power surges, improper grounding, or electromagnetic interference can affect load cell accuracy. Ensure proper electrical installation and consider using surge protectors and shielded cables.
Improper installation or misalignment can cause off-axis loading, leading to inaccurate readings and premature failure. Follow manufacturer guidelines for proper mounting and alignment.
Preventive measures can significantly extend the life of your load cells and maintain their accuracy:
1. Regular Calibration: Schedule regular calibration checks to ensure continued accuracy.
2. Proper Installation: Follow manufacturer guidelines for mounting and wiring.
3. Environmental Protection: Use appropriate enclosures or protective coatings for harsh environments.
4. Training: Ensure operators are trained in proper use and handling of weighing equipment.
5. Maintenance: Implement a regular maintenance schedule, including cleaning and inspection.
While troubleshooting can often resolve issues, there are times when replacement is necessary:
- Visible physical damage
- Consistently failed tests despite troubleshooting
- Erratic behavior that can't be corrected through calibration
- Age-related degradation affecting performance
- When repair costs approach replacement costs
Modern weighing systems often incorporate advanced diagnostics and digital load cells, which can simplify the troubleshooting process:
Digital load cells offer several advantages:
- Built-in diagnostics for easier troubleshooting
- Better signal-to-noise ratio, reducing interference issues
- Temperature compensation for improved accuracy
- Easier integration with control systems
Some advanced systems can perform continuous self-monitoring, alerting operators to potential issues before they become critical.
Identifying a bad load cell requires a combination of observation, testing, and understanding of load cell behavior. By familiarizing yourself with the signs of load cell failure, proper testing techniques, and preventive measures, you can ensure the continued accuracy and reliability of your weighing systems. Remember that while many issues can be resolved through troubleshooting, some situations may require professional assistance or load cell replacement. Regular maintenance, proper usage, and timely intervention when issues arise will help maximize the lifespan and performance of your load cells.
A1: The frequency of load cell calibration depends on various factors, including usage, environmental conditions, and regulatory requirements. Generally, it's recommended to calibrate load cells at least annually. However, some applications may require more frequent calibration, such as quarterly or even monthly. Always consult your equipment manual and industry standards for specific guidance.
A2: In some cases, load cells can be repaired, especially if the issue is related to wiring or minor damage. However, for severe damage, internal faults, or when the cost of repair approaches the cost of replacement, it's often more economical and reliable to replace the load cell. Always consult with the manufacturer or a qualified technician to determine the best course of action.
A3: Temperature can significantly affect load cell accuracy. Most load cells have a specified operating temperature range and include temperature compensation. However, extreme temperatures or rapid temperature changes can still cause temporary inaccuracies. Digital load cells often have better temperature compensation than analog ones. If operating in environments with significant temperature fluctuations, consider using load cells specifically designed for those conditions.
A4: Tension load cells are designed to measure forces pulling apart, while compression load cells measure forces pushing together. The main difference lies in their construction and how they're installed. Tension load cells often have threaded ends or eyebolts for attachment, while compression load cells typically have flat surfaces. It's crucial to use the correct type for your application, as using a compression load cell for tension measurements (or vice versa) can lead to inaccurate readings and potential damage.
A5: Yes, moisture can significantly affect load cell performance. Moisture ingress can cause corrosion, short circuits, and drift in readings. It can also affect the bonding of strain gauges to the load cell body. To protect against moisture, many load cells come with IP (Ingress Protection) ratings. For applications in humid or wet environments, choose load cells with appropriate IP ratings and consider additional protective measures like sealed enclosures or protective coatings.
