In the world of force measurement and sensing technology, two prominent solutions stand out: strain load cells and piezoelectric sensors. This comprehensive guide explores their characteristics, applications, and helps you make an informed decision for your specific needs.

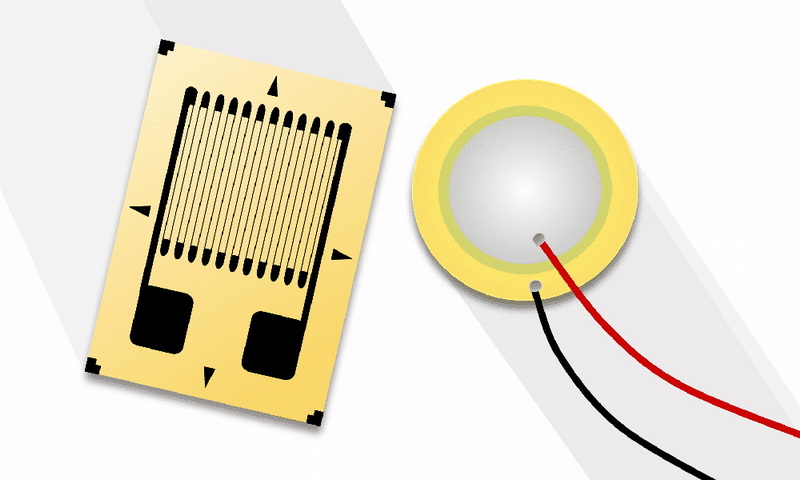

Strain load cells operate on the principle of mechanical deformation. When force is applied, the sensing element experiences strain, which causes a change in electrical resistance. This change is measured and converted into a force measurement.

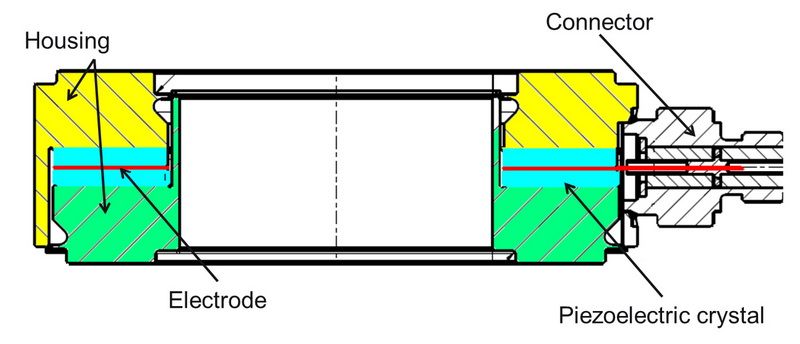

Piezoelectric sensors utilize the piezoelectric effect, where certain materials generate an electrical charge when subjected to mechanical stress. This principle allows for highly dynamic force measurements.
- Excellent static force measurement
- High accuracy and stability
- Linear output response
- Suitable for continuous measurements
- Temperature compensation capability
- Requires external power supply
- Lower frequency response
- Superior dynamic force measurement
- High natural frequency
- Compact size
- Self-generating (no power supply needed)
- Excellent high-frequency response
- Limited static measurement capability
- High impedance output
- Industrial weighing systems
- Inventory management
- Process control
- Material testing
- Structural monitoring
- Vehicle weighing
- Silo and tank weighing
- Impact testing
- Vibration measurement
- Dynamic force analysis
- Aerospace testing
- Engine testing
- Ballistics
- High-speed compression testing
- Long-term static measurements required
- Continuous monitoring needed
- High accuracy is crucial
- Budget constraints exist
- Environmental conditions are stable
- Regular calibration is possible
- Dynamic measurements are primary
- High-frequency response needed
- Space is limited
- Self-powered operation desired
- Short-term measurements suffice
- High overload protection required
- Proper mounting is crucial
- Regular calibration needed
- Temperature compensation required
- Cable shielding important
- Environmental protection necessary
- Minimal mounting space needed
- Less frequent calibration required
- Charge amplifier integration necessary
- Cable quality crucial
- Protection from humidity important
- Generally more affordable
- Lower installation costs
- Higher maintenance costs
- Regular calibration expenses
- Power supply requirements
- Higher initial investment
- Additional signal conditioning costs
- Lower maintenance costs
- Longer lifespan
- No power supply costs
- Integration with IoT systems
- Smart sensor capabilities
- Wireless connectivity
- Enhanced durability
- Improved temperature compensation
- Digital output options
- Miniaturization
A1: Strain load cells typically offer better accuracy for static measurements due to their stable output and ability to maintain continuous readings over extended periods.
A2: While piezoelectric sensors can detect static forces, they are not ideal for long-term static measurements due to charge leakage, which causes signal drift over time.
A3: Strain load cells typically last 3-5 years with proper maintenance, while piezoelectric sensors can last 8-10 years or more due to their simpler mechanical structure.
A4: Piezoelectric sensors are superior for high-speed measurements due to their high natural frequency and excellent dynamic response characteristics.
A5: Strain load cells are more sensitive to temperature variations and require compensation, while piezoelectric sensors are more resistant to temperature changes but can be affected by humidity.
This comprehensive guide should help you make an informed decision between strain load cells and piezoelectric sensors based on your specific application requirements and constraints.
