Brosa tension load cells are renowned for their precision and reliability in measuring tensile forces across various industrial applications. With a commitment to quality and innovation, Brosa has developed advanced features that set their tension load cells apart from competitors. This article will explore these features in detail, providing insights into their applications, benefits, and technical specifications.

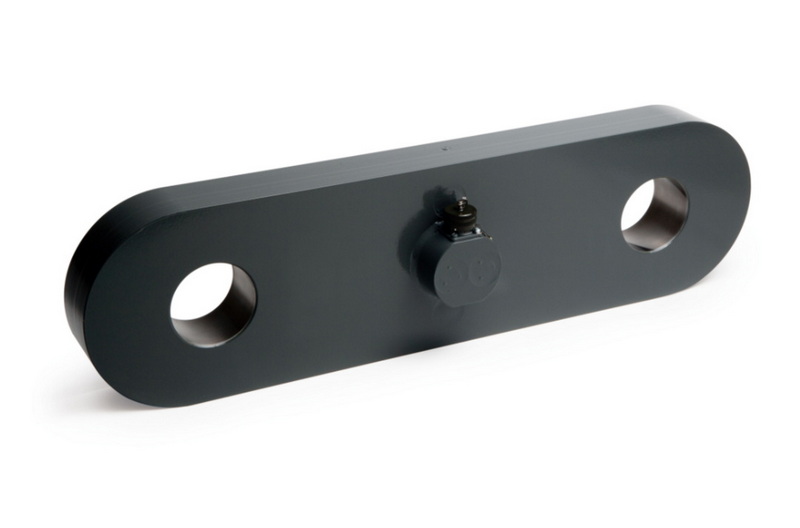

Brosa tension load cells are designed to offer accurate measurements in challenging environments. Made from high-quality fine-grained steel, these load cells ensure durability and stability even under extreme conditions. They are particularly useful in applications such as:
- Lattice boom cranes
- Drilling devices
- Mobile cranes
- Rubber-tired gantry cranes (RTGs)
- Ship-to-shore (STS) cranes
- Mobile harbor cranes
Brosa tension load cells come with a range of advanced features that enhance their performance and usability:
The built-in amplifier provides an output signal of 4-20 mA or CANopen, ensuring seamless integration into existing systems. This feature simplifies installation and reduces the need for external components.
Brosa tension load cells are designed to handle overloads of up to 150% of their nominal load, with options for breaking loads of up to 300%. This ensures safety and reliability during operation.
These load cells are temperature compensated from -40 °C to +80 °C, maintaining accuracy across a wide temperature range. This is crucial for applications in fluctuating environmental conditions.
With electromagnetic compatibility (EMC) resistance up to 200 V/m, Brosa tension load cells can operate effectively in environments with high electromagnetic interference, ensuring consistent performance.
Brosa's design eliminates zero drift, meaning that the load cells do not require recalibration over time, which simplifies maintenance and enhances reliability.
The accuracy of Brosa tension load cells is maintained across the entire temperature range, with a linearity error of ≤ 0.3% FS and hysteresis ≤ 0.3% FS. This level of precision is essential for critical applications.
Brosa tension load cells are rated IP66/IP67 according to DIN EN 60529 standards, making them resistant to dust and water ingress. This feature is vital for outdoor or harsh industrial environments.
Brosa tension load cells find applications in various industries due to their robust design and advanced features:
- Construction: Used in cranes and lifting equipment for precise weight measurement.
- Marine: Employed on ships for monitoring loads during cargo operations.
- Manufacturing: Utilized in assembly lines where tensile force measurement is critical.
- Research: Applied in laboratories for experiments requiring accurate force measurements.
Here are some key technical specifications of Brosa tension load cells:
| Feature | Specification |
|---|---|
| Measurement Range | 10 kN to 8000 kN |
| Maximum Load | ≥ 150% nominal |
| Breaking Load | ≥ 300% nominal |
| Accuracy | ≤ 0.3% FS |
| Temperature Range | -40 °C to +80 °C |
| Protection Class | IP66 / IP67 |
| Output Signal | 4-20 mA, CANopen |
Brosa tension load cells represent a pinnacle of engineering excellence in the field of force measurement technology. With their advanced features such as integrated amplifiers, high overload capacities, temperature compensation, and robust EMC resistance, they are ideally suited for a variety of demanding applications across multiple industries. Their durability and accuracy make them a reliable choice for professionals seeking precision in force measurement.
The maximum capacity of Brosa tension load cells ranges from 10 kN to 8000 kN, allowing them to handle various industrial loads effectively.
Yes, Brosa tension load cells have an IP66/IP67 rating, making them resistant to dust and water ingress, suitable for outdoor applications.
Due to the no zero drift feature, Brosa tension load cells do not require recalibration over time under normal operating conditions.
Yes, they come with integrated amplifiers providing outputs like 4-20 mA or CANopen for easy integration into existing systems.
Common industries include construction, marine operations, manufacturing, and research laboratories where precise force measurements are required.
