Column load cells have become an indispensable component in modern industrial applications, revolutionizing the way we measure and monitor forces in various manufacturing and processing operations. These sophisticated measuring devices represent a perfect blend of durability, precision, and versatility, making them essential tools across numerous industrial sectors.

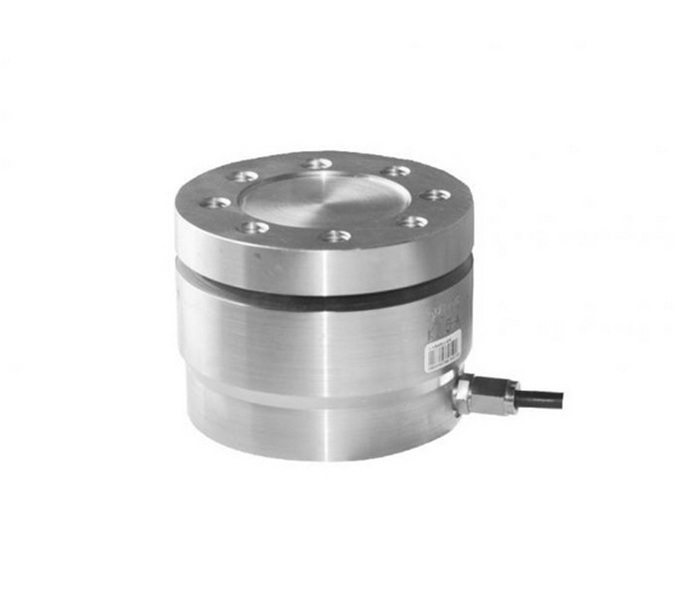

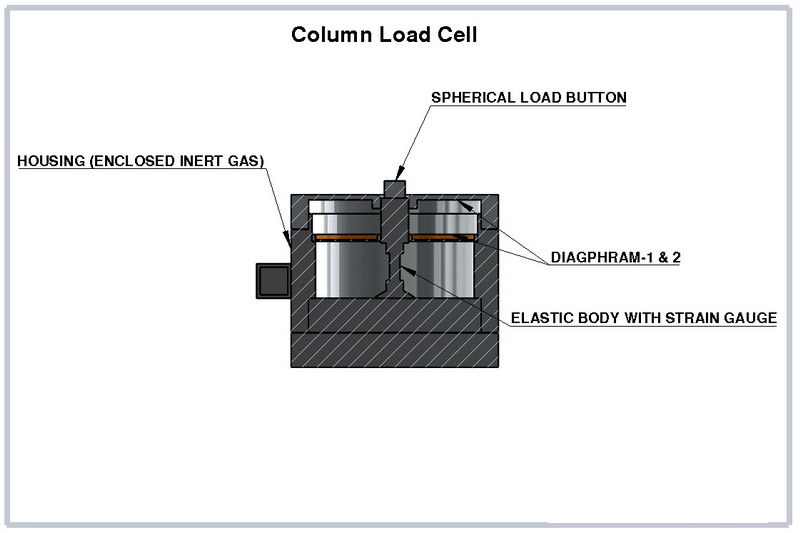

Column load cells are precision force measurement devices designed specifically for compression or tension force measurements. Their cylindrical design incorporates strain gauges arranged in a specific pattern to ensure accurate force measurements under various conditions. The basic working principle involves the conversion of mechanical force into electrical signals through the deformation of strain gauges.
The operation of column load cells is based on the strain gauge technology, where applied force causes minute deformations in the cell's body. These deformations are detected by strain gauges, which convert the mechanical stress into electrical signals. The signals are then processed and converted into readable measurements.
<iframe width="560" height="315" src="https://www.youtube.com/embed/kRDQ4oYWUjM" frameborder="0" allowfullscreen></iframe>
Column load cells excel in handling substantial loads, making them ideal for heavy industrial applications. Their robust design allows them to manage forces ranging from a few thousand to several hundred thousand pounds while maintaining accuracy and reliability.
The structural integrity of column load cells is one of their most significant advantages. Manufactured from high-grade materials, typically stainless steel, these devices are built to withstand:
- Extreme temperatures
- High humidity conditions
- Corrosive environments
- Mechanical shock and vibration
Column load cells demonstrate remarkable versatility across various industrial applications:
- Tank and hopper weighing
- Industrial scale systems
- Material testing equipment
- Process control systems
- Force measurement in manufacturing
Column load cells are extensively used in industrial weighing applications, including:
- Truck scales and weighbridges
- Tank and silo weighing systems
- Process weighing equipment
- Material handling systems
These devices excel in applications requiring precise force measurement:
- Material testing
- Quality control processes
- Research and development
- Production line monitoring
<iframe width="560" height="315" src="https://www.youtube.com/embed/cQtKeXBC25Y" frameborder="0" allowfullscreen></iframe>
Proper installation is crucial for optimal performance:
1. Surface preparation and leveling
2. Proper mounting and alignment
3. Protection from environmental factors
4. Correct wiring and connection
5. Regular maintenance checks
Regular calibration ensures accuracy and reliability:
- Initial calibration
- Periodic recalibration
- Environmental compensation
- Documentation and certification
Column load cells represent a crucial advancement in industrial force measurement technology. Their combination of high load capacity, robust design, and versatility makes them invaluable in modern industrial applications. As technology continues to evolve, these devices will likely become even more sophisticated, offering enhanced features and capabilities for industrial users.
Column load cells typically offer accuracy ranges from 0.03% to 0.25% of full scale, depending on the specific model and application requirements. High-precision models can achieve even better accuracy under controlled conditions.
The calibration frequency depends on usage and environmental conditions, but generally:
- Heavy industrial use: Every 6-12 months
- Moderate use: Annually
- Light use: Every 12-18 months
- Or as specified by local regulations and industry standards
Key factors include:
- Temperature variations
- Environmental conditions
- Installation quality
- Maintenance practices
- Loading conditions
- Electronic interference
Yes, specially designed column load cells are available for hazardous environments, featuring:
- Explosion-proof certifications
- Hermetic sealing
- Corrosion-resistant materials
- Special protective coatings
The lifespan of a column load cell typically ranges from 5 to 15 years, depending on:
- Usage intensity
- Environmental conditions
- Maintenance quality
- Installation correctness
- Quality of the load cell
