A 6 axis load cell is an advanced sensor designed to measure forces and torques in three-dimensional space. These sensors are crucial in various applications, including robotics, aerospace, automotive testing, and biomechanics. In this article, we will explore the key features that define a high-quality 6 axis load cell, its applications, advantages over traditional load cells, and considerations for selecting the right model for specific needs.

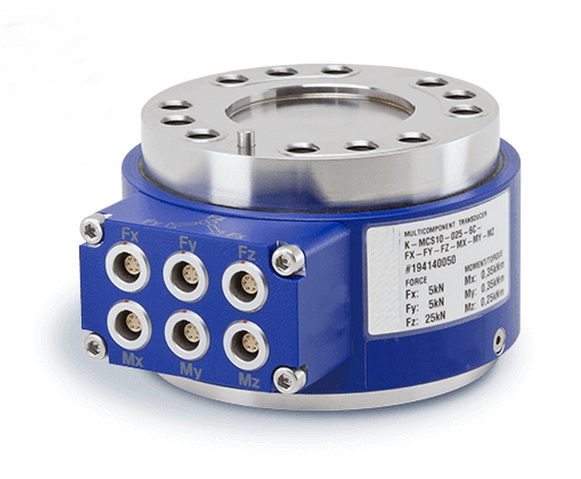

A 6 axis load cell measures forces along the X, Y, and Z axes and moments about these axes (Mx, My, Mz). This capability allows for comprehensive data collection in dynamic environments where multiple forces act simultaneously.
- Strain Gauges: The core technology behind load cells, these devices convert mechanical deformation into electrical signals. Strain gauges are typically arranged in Wheatstone bridge configurations to enhance sensitivity and accuracy.
- Signal Conditioning: This includes amplifiers and filters that enhance the signal for accurate readings. Effective signal conditioning is critical for ensuring that the output is clear and reliable.
- Calibration Matrix: A critical feature for ensuring accuracy by compensating for crosstalk between axes. Calibration involves applying known forces to the load cell and adjusting the output to reflect these inputs accurately.

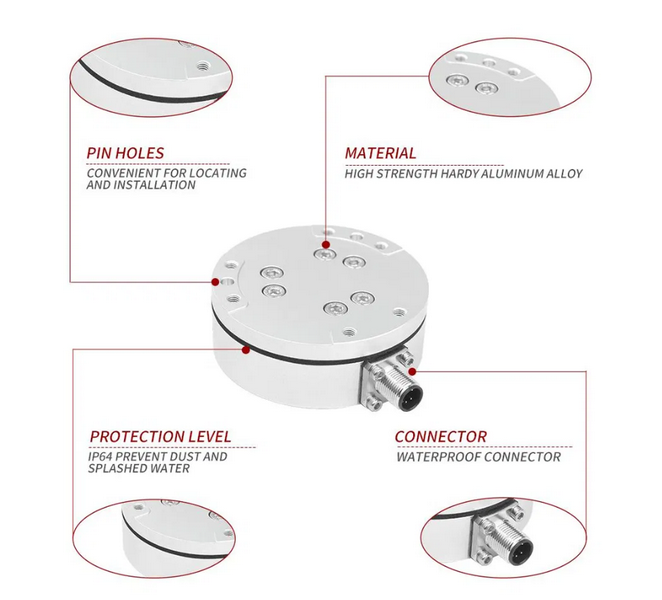

- Housing: The external casing protects the internal components from environmental factors such as moisture, dust, and mechanical impacts. High-quality materials are essential for durability.
1. Precision Measurement
- High-quality 6 axis load cells provide precise measurements with accuracy levels often reaching 0.1% or better. This precision is essential for applications where even minor discrepancies can lead to significant errors.
2. Low Crosstalk
- Crosstalk refers to interference between measurement channels. Quality load cells minimize this effect, ensuring that the output from one axis does not affect another. This is particularly important in applications requiring simultaneous measurement of multiple forces.
3. Temperature Compensation
- Changes in temperature can affect sensor performance. High-quality load cells incorporate temperature compensation mechanisms to maintain accuracy across varying environmental conditions. This feature is vital in environments where temperature fluctuations are common.
4. Robust Construction
- These sensors are built to withstand harsh environments. Materials such as stainless steel or titanium alloys are commonly used to enhance durability and resistance to corrosion. The construction also ensures that the load cell can endure mechanical shocks without losing calibration.
5. Wide Measurement Range
- A good 6 axis load cell should have a broad measurement range, allowing it to handle various loads without compromising accuracy. This flexibility makes them suitable for diverse applications.
6. Compact Design
- Many high-quality load cells feature a compact design that simplifies integration into existing systems without requiring extensive modifications. This is particularly beneficial in space-constrained environments.
7. Ease of Integration
- Compatibility with various data acquisition systems is crucial. High-quality load cells often come with standardized outputs and interfaces that facilitate easy integration into different setups.
8. Advanced Signal Processing
- Modern 6 axis load cells utilize sophisticated algorithms for signal processing, enhancing their ability to filter noise and improve measurement fidelity. These algorithms can also help in identifying outliers or erroneous data points during measurements.
9. Real-Time Data Output
- The ability to provide real-time data is essential in many applications, especially in robotics and automated systems where immediate feedback is required. Real-time monitoring allows for adjustments on-the-fly, enhancing operational efficiency.
10. Customizability
- Many manufacturers offer customizable options for specific applications, allowing users to tailor the sensor's characteristics to meet unique requirements. Custom features may include specialized mounting options or specific calibration settings.
The versatility of 6 axis load cells makes them suitable for a wide range of applications:
- Robotics: Used in robotic arms for precise force feedback during assembly tasks, enabling robots to perform delicate operations without damaging components.
- Aerospace Testing: Essential for testing components under various loads to ensure safety and reliability in flight conditions.
- Automotive Testing: Employed in crash tests and performance evaluations to gather critical data on vehicle dynamics and occupant safety.
- Biomechanics: Utilized in medical research and rehabilitation to measure forces acting on prosthetics or during physical therapy sessions.
- Wind Tunnel Testing: Helps measure aerodynamic forces on models during testing phases, providing valuable data for design optimization.
- Industrial Automation: In manufacturing processes where precise force measurement is required for quality control during assembly lines.
- Material Testing: Used in laboratories to assess the strength and durability of materials under various loading conditions.
Compared to traditional single-axis load cells, 6 axis load cells offer several advantages:
| Feature | Traditional Load Cells | 6 Axis Load Cells |
|---|---|---|
| Measurement Capability | Single-axis | Multi-axis (3 forces + 3 moments) |
| Complexity of Setup | Higher | Lower (integrated solution) |
| Data Collection | Limited | Comprehensive (all axes simultaneously) |
| Application Flexibility | Narrow | Broad (various industries) |
Choosing the right 6 axis load cell involves several considerations:
- Application Requirements: Understand the specific needs of your application—such as force ranges, environmental conditions, and required precision levels.
- Calibration Needs: Consider whether you need a pre-calibrated unit or if you require custom calibration based on your specific use case.
- Budget Constraints: High-quality sensors can vary significantly in price based on features and capabilities; ensure you balance cost with necessary specifications.
- Manufacturer Support: Look for manufacturers that offer strong customer support and warranty options; this can be crucial if issues arise post-purchase.
As technology advances, several trends are emerging in the field of 6 axis load cells:
- Integration with IoT: The increasing adoption of Internet of Things (IoT) technologies allows for enhanced data collection and analysis capabilities through cloud-based solutions.
- Miniaturization: There is a growing trend towards smaller sensors without compromising performance, making them easier to integrate into compact systems.
- Enhanced Data Analytics: Advanced analytics tools are being developed to process data collected from 6 axis load cells more effectively, providing deeper insights into performance metrics.
- Wireless Technology: Wireless communication technologies are being incorporated into load cells to eliminate cabling issues and improve installation flexibility.
In summary, high-quality 6 axis load cells are essential tools in modern engineering and technology fields. Their ability to measure multiple forces and moments simultaneously provides invaluable data for various applications, from robotics to aerospace testing. When selecting a 6 axis load cell, it is crucial to consider factors such as precision, crosstalk reduction, temperature compensation, robustness, integration ease, and future-proofing features like IoT compatibility.
The advancements in technology continue to enhance the capabilities of these sensors, making them indispensable across numerous industries. Investing in a high-quality 6 axis load cell ensures accurate measurements that drive innovation and efficiency in engineering solutions.
A 6 axis load cell is a sensor that measures forces along three orthogonal axes (X, Y, Z) and moments around these axes (Mx, My, Mz), allowing for comprehensive force analysis in three-dimensional space.
Temperature variations can impact the accuracy of measurements by causing expansion or contraction of materials within the sensor. High-quality 6 axis load cells incorporate temperature compensation features to mitigate these effects.
Industries such as robotics, aerospace, automotive testing, biomechanics, manufacturing, and material testing frequently utilize 6 axis load cells due to their ability to capture complex force interactions accurately.
Yes, most high-quality 6 axis load cells are designed for easy integration with various data acquisition systems and come with standardized outputs that facilitate compatibility with existing setups.
Common applications include robotic assembly tasks, crash testing in automotive engineering, wind tunnel testing in aerospace research, biomechanical studies involving prosthetics or joint simulations, industrial automation processes requiring precise force measurement, and material strength assessments under various loading conditions.
