Tension compression type load cells are essential instruments in various industries, providing accurate measurements of both pulling (tension) and pushing (compression) forces. These devices are crucial for applications ranging from industrial weighing to material testing. This article delves into the key features of tension compression type load cells, their working principles, applications, advantages, and considerations for selection and installation.

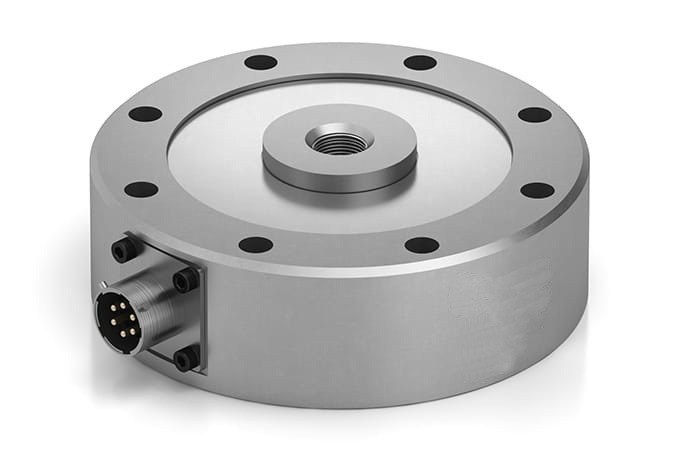

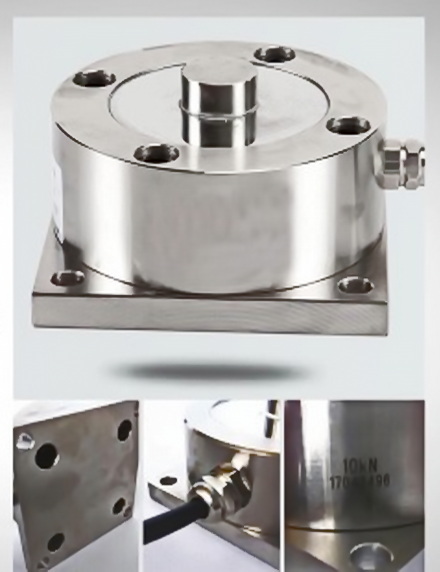

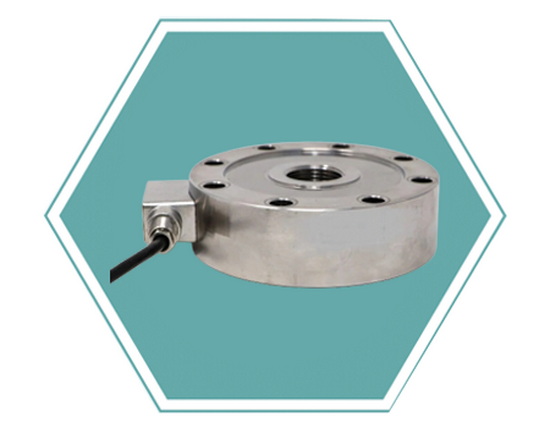

Tension compression load cells are specialized sensors that convert mechanical force into an electrical signal. They are designed to measure forces in both tension and compression, making them versatile tools in many applications.
- Tension Load Cells: These load cells measure the force applied when pulling an object. They are often used in applications where the load is suspended or where tensile strength needs to be assessed.
- Compression Load Cells: In contrast, compression load cells measure the force applied when pushing or compressing an object. They are typically installed beneath the object being weighed or tested.
The fundamental working principle of tension compression type load cells involves strain gauges. Strain gauges are bonded to the load cell's surface and detect deformations caused by applied forces. When a load is applied:
1. Tension: The load cell elongates, causing the strain gauges to stretch. This change in length alters the electrical resistance of the strain gauge, which is proportional to the force applied.
2. Compression: Conversely, when a compressive force is applied, the load cell compresses, causing a similar change in resistance in the strain gauges.
This change in resistance is converted into an electrical signal that can be measured and displayed digitally.
- Dual Functionality: One of the most significant advantages of tension compression type load cells is their ability to measure both types of forces. This versatility reduces the need for multiple sensors in applications where loads may shift between tension and compression.
- High Accuracy: Many tension compression load cells offer high precision with minimal error margins, often achieving accuracies within ±0.02% or better. This level of accuracy is crucial for critical testing processes in various industries.
- Durability: Constructed from robust materials like stainless steel or aluminum alloys, these load cells are designed to withstand harsh environments. Their durability ensures long-term reliability and reduced maintenance costs.
- Compact Design: Many models feature low-profile designs that make them ideal for installations in space-restricted environments without compromising performance or accuracy.
- Easy Installation: The design often includes features that facilitate straightforward installation and integration into existing systems. Threaded ends or mounting brackets simplify setup processes.
- Temperature Compensation: Built-in temperature compensation ensures that measurements remain accurate even when environmental conditions fluctuate.
- Overload Protection: Tension compression load cells are typically designed to handle safe overloads up to 150% of their rated capacity, enhancing their durability and longevity.
Tension compression type load cells find applications across various industries due to their versatility:
- Industrial Weighing Systems: Used in scales for weighing heavy materials and products.
- Material Testing: Employed in laboratories to test tensile strength and compressive forces.
- Load Monitoring in Construction: Essential for ensuring safety standards by monitoring structural loads on beams and supports.
- Medical Devices: Utilized in devices requiring precise weight measurements, such as patient scales.
- Automotive Testing: Used to assess the strength and durability of automotive components under various loads.
- Aerospace Engineering: In aerospace applications, these load cells are used to test materials under extreme conditions, ensuring that components can withstand significant stress during operation.
- Robotics: In robotic applications, tension compression load cells help monitor forces exerted by robotic arms during assembly tasks or material handling processes.
Tension compression load cells offer several advantages over traditional single-function load cells:
- Cost-Effectiveness: By combining the functions of both tension and compression measurement into one device, these load cells reduce overall equipment costs.
- Simplified Calibration: Universal load cells can be easily calibrated for both types of measurements, streamlining maintenance processes.
- Enhanced Data Collection: The ability to measure both forces allows for more comprehensive data collection during testing phases.
- Improved Safety Monitoring: In critical applications like construction or aerospace, having a single sensor capable of monitoring both types of loads enhances safety by providing real-time data on structural integrity.
When selecting a tension compression type load cell, consider the following factors:
1. Capacity Requirements: Ensure that the selected load cell can handle the maximum expected loads without exceeding its rated capacity. Overloading can lead to permanent damage or inaccurate readings.
2. Accuracy Needs: Evaluate the required accuracy levels based on your application's sensitivity and precision requirements. Higher accuracy models may be necessary for laboratory settings compared to general industrial use.
3. Environmental Conditions: Consider factors such as temperature extremes, humidity levels, and exposure to corrosive substances when selecting materials and protection ratings (e.g., IP67).
4. Installation Space: Assess available installation space to choose a model with appropriate dimensions that will fit without compromising performance.
5. Calibration Needs: Ensure that calibration services are available for maintaining measurement accuracy over time. Regular calibration is essential for ensuring consistent performance.
6. Signal Output Type: Determine whether you need analog or digital output based on your system requirements. Digital outputs often provide more precise readings with less noise interference.
7. Integration with Existing Systems: Consider how easily the new load cell can integrate with your current data acquisition systems or controllers to streamline operations and data analysis processes.
Proper installation is crucial for ensuring optimal performance from tension compression type load cells:
- Alignment: Ensure that the load cell is aligned correctly with respect to the applied loads. Misalignment can lead to erroneous readings and potential damage to the sensor.
- Mounting Surface Preparation: The surface where the load cell will be mounted should be clean and free from debris or contaminants that could affect its performance.
- Use of Appropriate Hardware: Utilize recommended mounting hardware (such as bolts or brackets) that match the specifications provided by the manufacturer to ensure secure attachment without damaging the unit.
- Cable Management: Organize cables neatly during installation to prevent wear from movement or interference with other equipment.
To ensure longevity and consistent performance from tension compression type load cells:
- Regular Inspections: Periodically check for signs of wear or damage, particularly at connection points where stress concentrations may occur.
- Calibration Checks: Implement a routine calibration schedule based on usage frequency and application sensitivity requirements to maintain measurement accuracy over time.
- Environmental Protection Measures: If operating in harsh conditions, consider additional protective measures such as enclosures or covers that shield against dust, moisture, or extreme temperatures while allowing necessary heat dissipation.
Tension compression type load cells play a vital role in various industrial applications by providing accurate measurements of both pulling and pushing forces. Their dual functionality, high accuracy, durability, compact design, and ease of installation make them indispensable tools across multiple sectors including manufacturing, healthcare, construction, automotive testing, aerospace engineering, and robotics. As industries continue to evolve with increasing demands for precision measurement solutions, tension compression load cells will remain critical components in ensuring operational efficiency and product quality while enhancing safety standards across applications.
A tension compression type load cell is a sensor designed to measure both tensile (pulling) and compressive (pushing) forces by converting mechanical stress into an electrical signal through strain gauges.
It works by using strain gauges that detect deformations caused by applied forces; these deformations change the electrical resistance of the gauges proportionally to the force applied, which is then converted into a measurable electrical signal.
They are commonly used in industrial weighing systems, material testing laboratories, construction monitoring systems, medical devices for weight measurement, automotive component testing, aerospace engineering applications, and robotics tasks requiring force monitoring.
Consider capacity requirements, accuracy needs, environmental conditions (like temperature and humidity), available installation space, calibration requirements, signal output type (analog vs digital), and integration capabilities with existing systems when selecting a suitable model.
They offer cost-effectiveness by combining two functions into one device; simplified calibration processes for dual measurements; enhanced data collection capabilities during testing phases; improved safety monitoring features; and versatility across various applications.
