Load cells are fundamental components in modern industrial and commercial applications, serving as the backbone of precise force measurement systems. These sophisticated devices transform mechanical force into measurable electrical signals, enabling accurate weight and force measurements across countless applications.

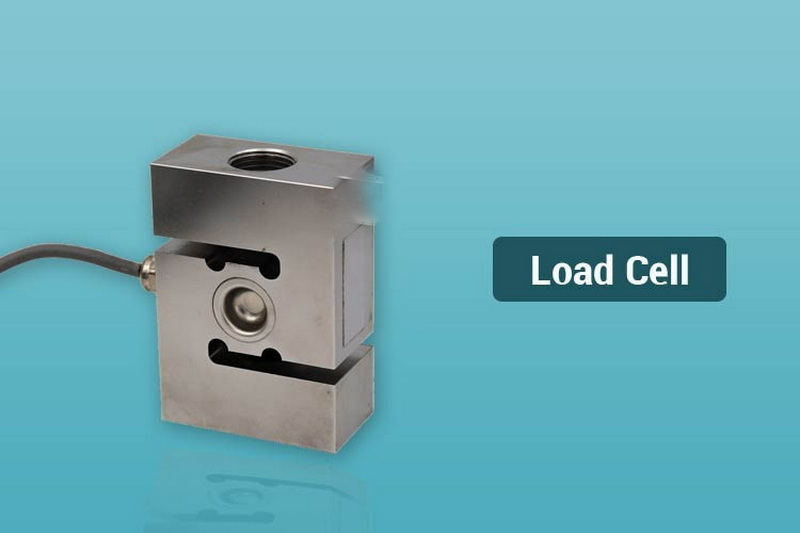

A load cell is a transducer that converts force into a measurable electrical output. Whether measuring tension, compression, or torque, these devices are essential in various industries, from manufacturing to aerospace. The technology relies on precise mechanical design and electrical components to deliver accurate measurements.
The working principle of load cells is based on the physical property of electrical resistance change under mechanical stress. When force is applied to a load cell:
1. The metal element deforms slightly
2. Strain gauges detect this deformation
3. Electrical resistance changes proportionally
4. The change is converted to a measurable electrical signal
1. Strain Gauge Load Cells
- Most common type
- High accuracy
- Cost-effective
- Versatile applications
2. Hydraulic Load Cells
- Suitable for harsh environments
- Self-contained systems
- No electrical components
- Excellent for remote reading
3. Pneumatic Load Cells
- Ideal for clean environments
- Explosion-proof
- Highly accurate
- Temperature-independent
Industrial Applications:
- Manufacturing process control
- Quality assurance testing
- Material handling systems
- Industrial scales and weighing
Commercial Applications:
- Retail scales
- Shipping and logistics
- Food processing
- Laboratory equipment
Research and Development:
- Force analysis
- Product testing
- Scientific research
- Structural testing
1. High Accuracy
- Precise measurements
- Repeatable results
- Minimal deviation
2. Durability
- Long service life
- Resistant to environmental factors
- Minimal maintenance required
3. Versatility
- Multiple configuration options
- Wide measurement ranges
- Various mounting options
Proper installation is crucial for optimal load cell performance:
- Correct mounting alignment
- Proper wiring and connections
- Environmental protection
- Regular calibration
- Periodic inspection
The future of load cell technology is evolving with:
- Digital integration capabilities
- Wireless communication
- Smart diagnostics
- Enhanced durability
- Improved accuracy
- IoT connectivity
A: Modern load cells typically offer accuracy ratings between 0.03% to 1% of full scale, depending on the type and quality of the cell. High-precision load cells can achieve even better accuracy ratings under controlled conditions.
A: With proper installation and maintenance, quality load cells can last 10-15 years or more. However, this depends on usage conditions, environmental factors, and maintenance practices.
A: Yes, specially designed load cells can operate in temperatures ranging from -50°C to +150°C. However, standard load cells typically have a more limited operating range of -20°C to +70°C.
A: Load cells should typically be calibrated annually, though this may vary based on usage, regulatory requirements, and application criticality. Some applications may require more frequent calibration.
A: Common causes of load cell failure include:
- Overloading
- Physical damage
- Water ingress
- Lightning strikes
- Improper installation
- Chemical exposure
This comprehensive guide covers the essential aspects of load cell technology, from basic principles to advanced applications. As technology continues to evolve, load cells remain fundamental to accurate force measurement across industries.
