A load cell signal conditioner is a crucial component in modern weight measurement and force monitoring systems. This sophisticated device serves as the bridge between raw sensor data and usable measurement information, playing a vital role in various industrial, scientific, and commercial applications. In this comprehensive guide, we'll explore the intricacies of load cell signal conditioners, their functionality, applications, and importance in precise measurement systems.
Signal conditioners are specialized electronic devices designed to optimize and process the raw output signals from load cells. These devices perform several critical functions that transform weak sensor signals into robust, accurate, and reliable measurement data. The primary purpose is to capture the analog strain gauge sensor signal and convert it into a higher-level electrical signal that can be effectively utilized by measurement and control systems.

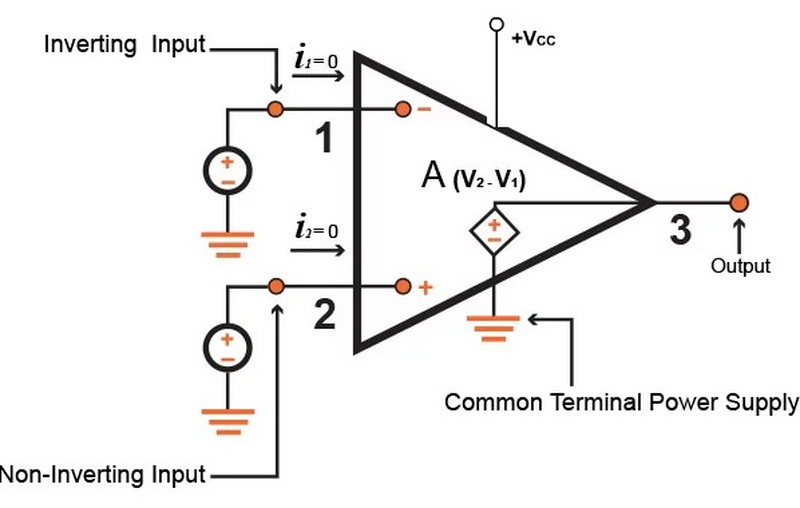

The fundamental operations performed by signal conditioners include signal amplification, filtering, and conversion. They work by taking the minimal voltage output from load cells (typically in the range of a few millivolts) and amplifying it to a standardized output level that can be easily interpreted by connected devices. Additionally, they provide essential functions such as excitation voltage supply to the load cell, noise filtering, and signal linearization to ensure measurement accuracy.
Load cell signal conditioners come in various forms, each designed to meet specific application requirements:
1. Analog Signal Conditioners: These traditional devices process and output analog signals, ideal for simple applications requiring direct voltage or current outputs.
2. Digital Signal Conditioners: Modern units that convert analog signals to digital format, offering advanced features like data logging and network connectivity.

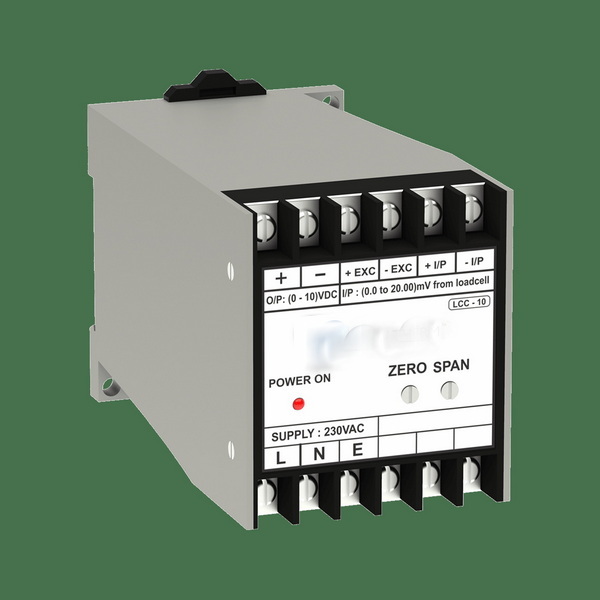

3. DIN Rail-Mounted Conditioners: Industrial-grade units designed for easy installation in control panels and electrical cabinets.
4. Portable Signal Conditioners: Compact units suitable for field applications and mobile measurement systems.
5. Integrated Amplifier-Conditioners: Combined units that provide both amplification and conditioning functions in a single package.
Proper installation of a load cell signal conditioner is crucial for optimal performance. The process typically involves:
1. Physical Mounting: Secure installation in an appropriate enclosure or panel
2. Power Connection: Proper wiring of power supply with correct voltage ratings
3. Load Cell Connection: Accurate wiring of load cell inputs following manufacturer specifications
4. Output Configuration: Setting up the desired output format and range
5. Calibration: Fine-tuning the system for accurate measurements
Watch this installation guide:
Load cell signal conditioners find applications across numerous industries:
- Manufacturing: Quality control and process monitoring
- Food Processing: Ingredient weighing and packaging
- Pharmaceutical: Precise measurement for drug formulation
- Aerospace: Force measurement in testing and validation
- Research Laboratories: Scientific experimentation and data collection
- Construction: Structural load monitoring
- Transportation: Vehicle weighing systems
Regular maintenance and proper troubleshooting procedures ensure optimal performance:
1. Regular Calibration Checks
2. Signal Quality Monitoring
3. Connection Inspection
4. Environmental Protection
5. Software Updates (for digital units)
6. Documentation of Performance History
Load cell signal conditioners are essential components in modern measurement systems, providing the crucial link between sensors and measurement displays or control systems. Their proper selection, installation, and maintenance are vital for accurate and reliable force measurement applications.
Answer: A load cell signal conditioner's primary function is to amplify, filter, and convert the weak electrical signals from load cells into standardized outputs that can be used by measurement and control systems.
Answer: Calibration frequency depends on usage and application requirements, but typically ranges from every 6 months to annually for most industrial applications.
Answer: Yes, many modern signal conditioners can handle multiple load cell inputs, but they must be properly matched and configured for the specific application.
Answer: Common output types include voltage (0-10V), current (4-20mA), and digital formats (RS-232, RS-485, USB).
Answer: Environmental factors such as temperature, humidity, electromagnetic interference, and vibration can impact performance, which is why proper installation and protection are crucial.
