Before delving into the specifics of torque sensors, it's essential to grasp the concept of torque itself. Torque is a rotational force that causes an object to rotate around an axis. It's a fundamental measure in mechanics, crucial for understanding the performance of rotating machinery, engines, and various mechanical systems.
Torque is typically measured in units such as Newton-meters (Nm) or foot-pounds (ft-lbs). The ability to accurately measure torque is vital for ensuring optimal performance, efficiency, and safety in many applications.
Torque sensors serve several critical functions across various industries and applications. Let's explore the main tasks these devices perform:
The primary function of a torque sensor is to measure the torque applied to an object or system. This measurement can be static (torque at rest) or dynamic (torque during motion). Torque sensors can accurately quantify the magnitude of torque, providing crucial data for various industrial applications.
Torque sensors act as transducers, converting the physical changes in torque into precise electrical signals. This conversion allows for easy integration with electronic systems for data analysis, control, and monitoring.
In many applications, torque sensors are used not just for measurement but also for control. For instance, in automotive engines, torque sensors monitor the engine's torque output, allowing the electronic control system to adjust engine parameters for optimal performance and safety.
Torque sensors can be used to detect and monitor load in various systems. For example, in cranes or lifting equipment, torque sensors help ensure safe operation by continuously monitoring the load.
Many advanced torque sensors can also measure rotational speed along with torque. This dual measurement capability allows for the calculation of power, which is the product of torque and angular velocity.
By providing accurate torque measurements, these sensors help optimize production processes, prevent equipment damage due to over-torquing, and ensure consistent product quality.
There are several types of torque sensors, each with its own principles of operation and specific applications:

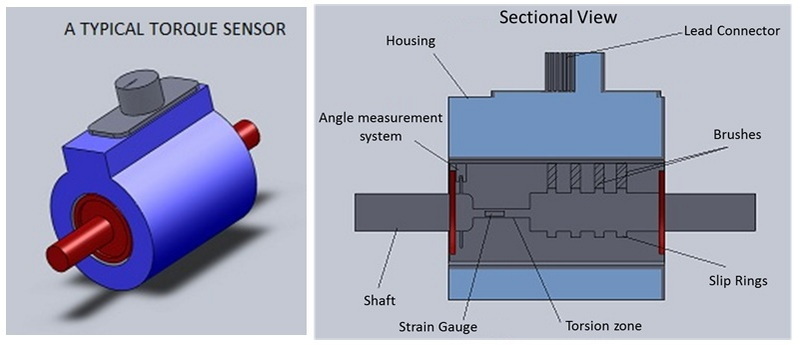

Strain gauge torque sensors are among the most common types. They work by measuring the deformation or strain in a material when torque is applied. The strain causes a change in electrical resistance, which is then converted into a torque measurement.
These sensors utilize the magnetoelastic effect, where the magnetic properties of certain materials change under mechanical stress. When torque is applied, the sensor detects changes in the magnetic field, correlating them to torque measurements.
SAW torque sensors use high-frequency sound waves on the surface of a piezoelectric material. When torque is applied, it affects the propagation of these waves, allowing for torque measurement.
These sensors use light to measure torque. They typically involve a light source, a detector, and an encoder disk. As torque is applied, it causes a change in the light pattern, which is then interpreted as a torque measurement.
Torque sensors find applications across a wide range of industries and scenarios:
In the automotive sector, torque sensors are used extensively for:
- Engine testing and development
- Transmission system optimization

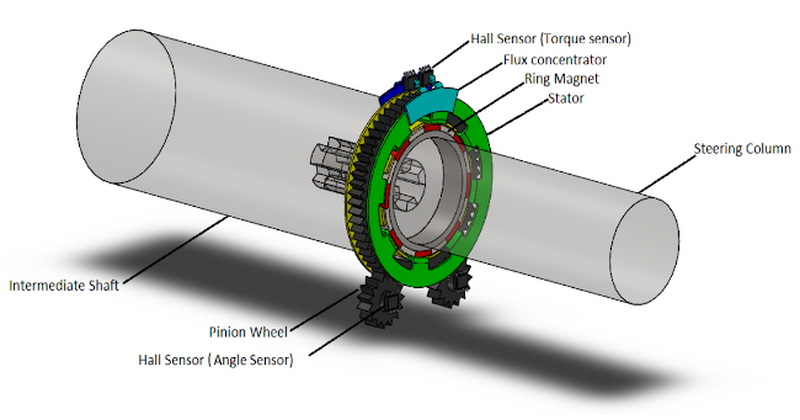

- Steering system control in electric power steering
- Brake system testing
The aerospace industry utilizes torque sensors for:
- Aircraft engine testing
- Propeller performance measurement
- Control surface actuation systems
In manufacturing, torque sensors are crucial for:
- Quality control in assembly processes
- Monitoring and control of industrial machinery
- Robotic arm force control
Torque sensors play a vital role in:
- Wind turbine performance optimization
- Power generation equipment monitoring
- Oil and gas drilling operations
In R&D settings, torque sensors are used for:
- Material testing and characterization
- Prototype testing and validation
- Biomechanical studies
To understand how torque sensors function, let's break down the process:
1. Torque Application: When torque is applied to the sensor, it causes a slight deformation or strain in the sensor's material.
2. Sensing Element: The sensing element (e.g., strain gauges, magnetoelastic materials) detects this deformation.
3. Signal Generation: The deformation is converted into an electrical signal. For strain gauges, this involves a change in electrical resistance.
4. Signal Processing: The electrical signal is processed and amplified.
5. Output: The processed signal is converted into a readable torque measurement, often displayed digitally or used as input for control systems.
While torque sensors are incredibly useful, there are several challenges and considerations to keep in mind:
Many torque sensors are sensitive to temperature changes, which can affect their accuracy. Advanced sensors often include temperature compensation mechanisms.
Torque sensors must be protected from overload conditions that could damage the sensor or affect its calibration.
In dynamic applications, signal noise can be a significant issue. Proper shielding and signal processing techniques are essential for accurate measurements.
Regular calibration is crucial to ensure the continued accuracy of torque sensors. Proper maintenance procedures must be followed to maintain sensor performance over time.
The field of torque sensing is continually evolving, with several exciting trends on the horizon:
Advancements in wireless technology are leading to the development of wireless torque sensors, eliminating the need for slip rings in rotating applications.
There's a growing trend towards smaller, more compact torque sensors, especially for applications in robotics and medical devices.
The integration of torque sensors with Internet of Things (IoT) platforms and artificial intelligence is opening up new possibilities for predictive maintenance and real-time optimization.
Research is ongoing to develop torque sensors with improved durability and resistance to harsh environmental conditions.
Torque sensors are indispensable tools in modern engineering and technology. They provide crucial data for measuring, monitoring, and controlling rotational force across a wide range of applications. From ensuring the safety and efficiency of automotive engines to optimizing industrial processes, torque sensors play a vital role in numerous industries.
As technology continues to advance, we can expect to see even more innovative applications and improvements in torque sensing technology. The future holds exciting possibilities for more accurate, durable, and versatile torque sensors, further enhancing our ability to understand and control mechanical systems.
Static torque measurement involves measuring torque when there is no rotation, such as when tightening a bolt. Dynamic torque measurement, on the other hand, involves measuring torque during rotation, like in a running engine. Dynamic measurements are often more complex due to the need to account for factors like inertia and vibration.
The calibration frequency depends on the specific application and usage conditions. Generally, it's recommended to calibrate torque sensors at least annually. However, in critical applications or harsh environments, more frequent calibration may be necessary. Always follow the manufacturer's recommendations and industry standards for your specific use case.
Most modern torque sensors are designed to measure torque in both clockwise and counterclockwise directions. These bidirectional sensors typically provide a positive reading for one direction and a negative reading for the other. However, it's important to verify this capability when selecting a sensor for your application.
Non-contact torque sensors, such as magnetoelastic or SAW sensors, offer several advantages:
- They don't require physical contact with the rotating shaft, reducing wear and maintenance needs.
- They can operate at higher speeds than contact-based sensors.
- They're less susceptible to mechanical interference.
- They often have a longer lifespan due to reduced mechanical stress.
Environmental factors can significantly impact torque sensor performance. Temperature fluctuations can affect sensor calibration and accuracy. Humidity can lead to corrosion or electrical interference. Vibration and shock can cause mechanical stress or misalignment. Electromagnetic interference can disrupt signal transmission. High-quality torque sensors are designed with features to mitigate these effects, such as temperature compensation and robust shielding.
