A Class 2 load cell represents a specific accuracy classification in force measurement technology, offering high precision capabilities for various industrial and commercial applications. This comprehensive guide explores the technical aspects, applications, and benefits of Class 2 load cells, providing valuable insights for professionals in the weighing and measurement industry.
Class 2 load cells operate on the principle of strain gauge technology, converting mechanical force into electrical signals. The system utilizes precision strain gauges arranged in a Wheatstone bridge configuration, which responds to applied force by producing a proportional electrical output. The Class 2 designation indicates a specific level of accuracy and performance capabilities according to international standards.
Class 2 load cells are characterized by their exceptional accuracy and reliability. Key specifications include:

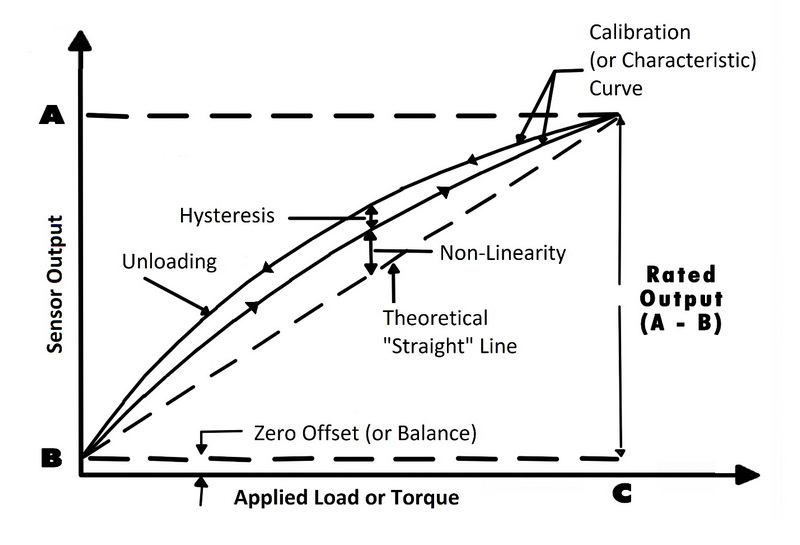

- Non-linearity: Typically ±0.02% of rated output
- Hysteresis: ±0.02% of rated output
- Temperature compensation range: -10°C to +40°C
- Temperature effect on zero: ±0.002% of rated output/°C
- Temperature effect on span: ±0.002% of rated output/°C
Class 2 load cells find extensive applications across various industries:
- Precision laboratory equipment
- High-accuracy industrial scales
- Material testing systems
- Quality control processes
- Research and development facilities
- Pharmaceutical manufacturing
- Aerospace testing
- Medical equipment
Proper installation is crucial for optimal performance:
1. Foundation preparation
2. Mounting considerations
3. Environmental protection
4. Electrical connections
5. Calibration procedures
6. Regular maintenance requirements
Class 2 load cells offer numerous advantages:
- Superior accuracy and precision
- Long-term stability
- Excellent repeatability
- Temperature compensation
- Robust construction
- Versatile applications
- Industry compliance
- Reliable performance
Regular maintenance ensures optimal performance:
- Periodic calibration checks
- Environmental protection
- Connection inspection
- Performance verification
- Documentation requirements
- Troubleshooting procedures
Class 2 load cells represent a crucial component in precise force measurement applications, offering superior accuracy and reliability for demanding industrial and scientific applications. Their versatility, combined with high precision capabilities, makes them an essential tool in modern measurement systems.
Answer: Class 2 load cells offer higher precision and accuracy compared to lower classes, typically providing accuracy ratings of 0.02% or better of rated output, making them suitable for precision measurement applications.
Answer: Class 2 load cells should typically be calibrated annually, though specific applications may require more frequent calibration based on usage and environmental conditions.
Answer: Class 2 load cells are primarily used in precision laboratory equipment, high-accuracy industrial scales, material testing systems, and quality control processes requiring superior accuracy.
Answer: Temperature variations, humidity, vibration, electromagnetic interference, and mechanical stress can all impact the performance of Class 2 load cells.
Answer: Optimal performance requires proper installation, regular calibration, protection from environmental factors, proper maintenance, and following manufacturer guidelines for usage and care.
