A strain gauge load cell is a precision instrument that converts mechanical force into measurable electrical signals. These sophisticated devices are fundamental to modern weight measurement and force detection systems, playing a crucial role across various industries from manufacturing to aerospace.

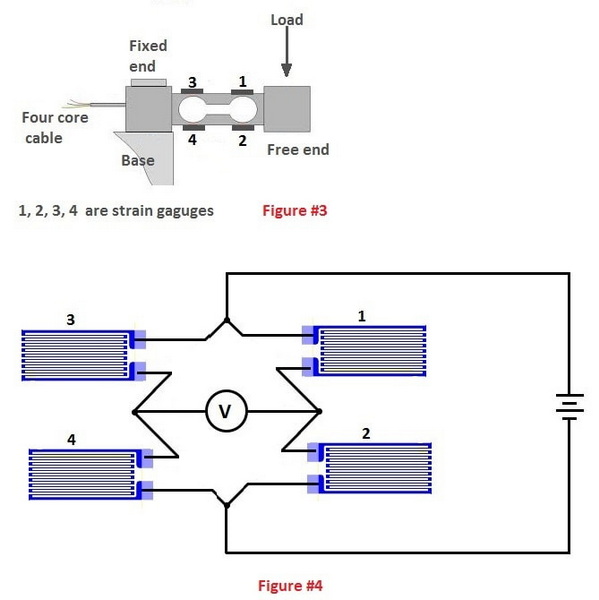

The fundamental principle behind strain gauge load cells lies in their ability to measure deformation. When force is applied to the load cell, it causes minute physical changes in the material. The strain gauges, typically arranged in a Wheatstone bridge configuration, detect these changes and convert them into electrical signals.
The main components of a strain gauge load cell include:
- Spring element (usually metal)
- Strain gauges (typically four)
- Wheatstone bridge circuit
- Housing and protection
- Cable assembly
- Mounting hardware
Several types exist to suit different applications:
- S-Type load cells
- Single point load cells

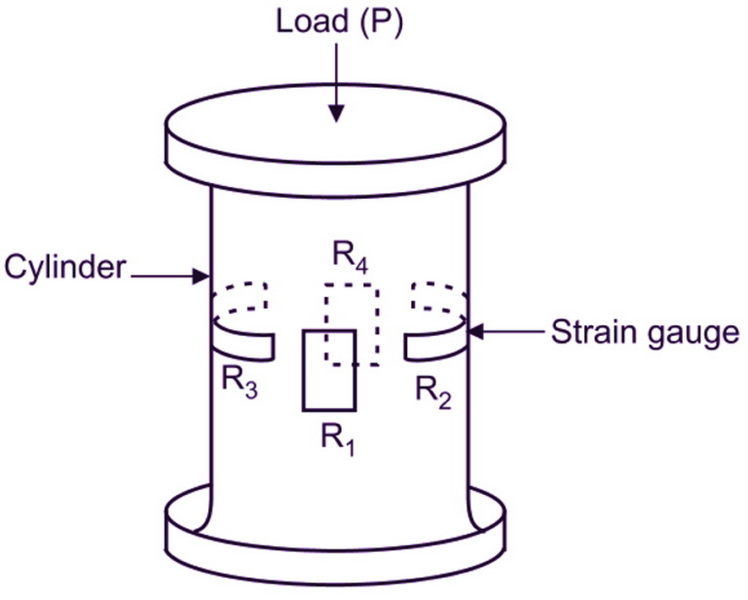

- Compression load cells
- Tension load cells
- Shear beam load cells

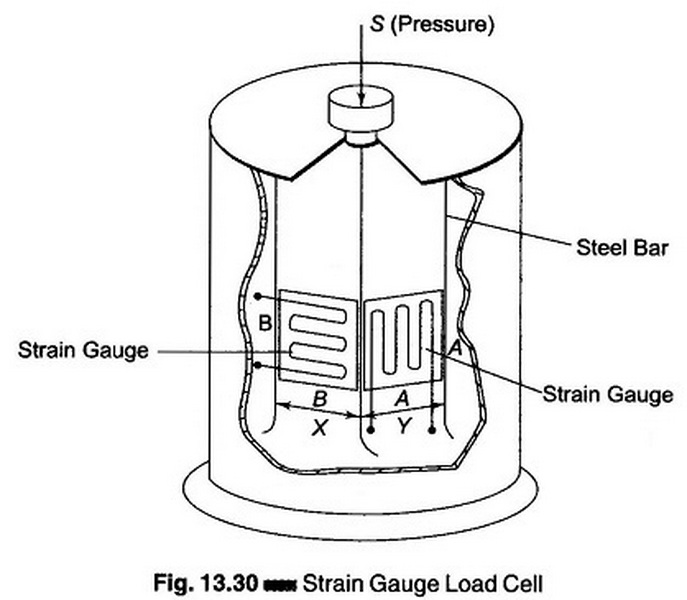

- Canister load cells
Strain gauge load cells find extensive use across numerous industries:Industrial Applications:
- Process control and automation
- Material testing
- Quality control
- Production line monitoring
- Inventory management
Commercial Applications:
- Retail scales
- Platform scales
- Truck weighing systems
- Crane scales
- Medical equipment
Research and Development:
- Laboratory testing
- Product development
- Material strength analysis
- Structural testing
Proper installation is crucial for accurate measurements:
- Ensure proper mounting surface preparation
- Maintain correct alignment
- Consider environmental protection
- Regular calibration
- Proper wiring and connection
- Protection from overload
- Temperature compensation
Modern strain gauge load cells offer numerous advantages:
- High accuracy and precision
- Long-term stability
- Temperature compensation
- Various capacity ranges
- Digital output capability
- Minimal maintenance requirements
- Cost-effective solution
- Robust construction
- Easy integration
Regular calibration ensures continued accuracy:
- Initial calibration
- Periodic recalibration
- Environmental considerations
- Documentation and traceability
- Error analysis
- Performance verification
The technology continues to evolve with:
- Wireless connectivity
- IoT integration
- Enhanced accuracy
- Smart diagnostics
- Miniaturization
- Energy efficiency
- Advanced materials
- Digital signal processing
Understanding common problems helps maintain optimal performance:
- Zero drift
- Temperature effects
- Mechanical damage
- Electrical interference
- Moisture ingress
- Overload protection
- Signal stability
Choosing the right load cell involves considering:
- Capacity requirements
- Environmental conditions
- Accuracy needs
- Budget constraints
- Installation space
- Interface requirements
- Certification needs
A1: Modern strain gauge load cells typically offer accuracy ratings between 0.03% to 0.25% of full scale, depending on the quality and application requirements. High-precision models can achieve even better accuracy levels under controlled conditions.
A2: Load cells should typically be calibrated annually under normal usage conditions. However, in harsh environments or critical applications, more frequent calibration may be necessary, possibly every 3-6 months.
A3: Zero drift can be caused by temperature changes, mechanical stress, aging of components, environmental factors like humidity, and electrical interference. Regular calibration and proper environmental controls help minimize this issue.
A4: While minor issues like cable damage can be repaired, internal damage to the strain gauges or sensing element typically requires replacement of the entire load cell to maintain accuracy and reliability.
A5: Compression load cells are designed to measure forces pushing down or together, while tension load cells measure pulling or stretching forces. The main difference lies in their mechanical design and how the force is applied to the sensing element.
