A twisting moment load cell is a specialized type of force transducer designed to measure torque or twisting forces applied to an object. Unlike conventional load cells that primarily measure linear forces (tension or compression), twisting moment load cells are capable of capturing the rotational forces that can occur in various applications. This article will explore the principles, applications, and advantages of twisting moment load cells, along with their design considerations and operational mechanisms.
Load cells are devices that convert a force into an electrical signal. They are widely used in various industries for weighing and force measurement applications. The most common types of load cells include:
- Strain Gauge Load Cells: Utilize strain gauges to measure deformation.
- Hydraulic Load Cells: Use hydraulic pressure to measure force.
- Pneumatic Load Cells: Measure weight using air pressure.
- Capacitive Load Cells: Measure changes in capacitance.

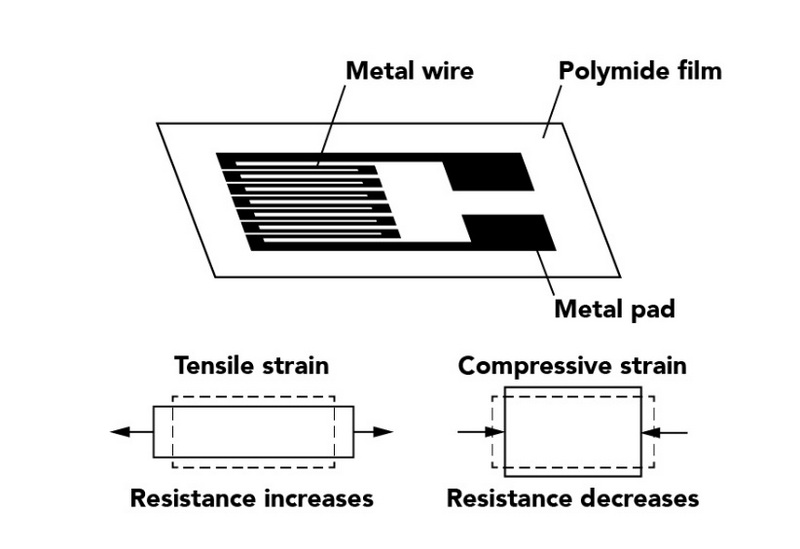

Load cells operate on the principle of converting mechanical deformation into an electrical signal. When a force is applied to the load cell, it deforms, causing a change in resistance in the strain gauges attached to it. This change is then converted into a measurable electrical signal.
Load cells are critical in various applications, including:
- Weighing Systems: Used in scales for accurate weight measurement.
- Industrial Automation: Monitoring forces in manufacturing processes.
- Research and Development: Testing materials under various loads.
The accuracy and reliability of load cells make them essential tools in both commercial and industrial settings.
Twisting moment load cells typically consist of:
- Measuring Element: A mechanical structure that deforms under torque.
- Strain Gauges: Attached to the measuring element to detect deformation.
- Electrical Circuit: Converts the mechanical changes into an electrical signal.
There are several designs of twisting moment load cells, including:
- Ring Torsion Load Cells: These have a ring-shaped design that allows for accurate measurement of torque.
- Bending Beam Load Cells: These can also be configured to measure twisting moments by adjusting the placement of strain gauges.
The materials used in the construction of twisting moment load cells significantly affect their performance and durability. Common materials include:
- Aluminum: Lightweight and cost-effective but may have lower strength.
- Stainless Steel: Offers high strength and corrosion resistance, making it suitable for harsh environments.
- Alloy Steels: Often used for high-capacity applications due to their strength and durability.
Torque is defined as the rotational force applied around an axis. The twisting moment load cell measures this force by detecting the deformation caused by the applied torque.
The strain gauges are arranged in such a way that they can accurately capture the changes in resistance due to twisting moments. This configuration is crucial for ensuring high accuracy and sensitivity in measurements.
Once the strain gauges detect deformation, the resulting electrical signal is processed through an analog-to-digital converter (ADC) which translates this signal into a readable format for display or further analysis. This processing is essential for ensuring that the output is both accurate and reliable.
Twisting moment load cells are used in various applications, including:
- Automotive Testing: Measuring torque on vehicle components such as axles and drive shafts.
- Industrial Machinery: Monitoring torque in manufacturing processes and equipment.
- Aerospace Engineering: Testing components for structural integrity under twisting forces.
- Robotics: Measuring forces applied by robotic arms during operation.
In automotive testing, twisting moment load cells are employed to assess the performance of engines and drivetrains under various operating conditions. For instance, they can measure how much torque is transmitted through a drive shaft during acceleration tests, providing critical data for engineers looking to optimize performance.
In aerospace engineering, these load cells help ensure that components such as wing structures can withstand operational stresses without failure. By applying known torques during testing, engineers can simulate real-world conditions and validate design integrity before production.
In robotics, twisting moment load cells enable precise control over robotic movements by providing feedback on the forces being exerted during tasks like assembly or manipulation of objects. This feedback loop enhances accuracy and efficiency in robotic operations.
Twisting moment load cells provide precise measurements due to their specialized design and strain gauge configuration.
These load cells can be used in a wide range of applications, from automotive to aerospace, making them highly versatile.
Many twisting moment load cells are designed to be compact, allowing them to fit into tight spaces while still providing accurate measurements.
With advancements in technology, many modern twisting moment load cells incorporate digital interfaces that allow for real-time monitoring and data logging, enhancing their usability across various applications.
Like all load cells, twisting moment load cells require regular calibration to ensure accuracy over time. Calibration should be performed using known reference standards to maintain measurement integrity.
These load cells can be sensitive to external forces such as shock loads or vibrations, which may affect measurement accuracy. Proper mounting techniques and isolation from external disturbances are crucial for maintaining performance.
Environmental conditions such as temperature fluctuations can impact the performance of twisting moment load cells. It's essential to select materials that can withstand specific environmental conditions if they are used outdoors or in extreme environments.
As technology advances, several trends are emerging in the field of twisting moment load cells:
The integration of Internet of Things (IoT) technologies allows for enhanced data collection and analysis capabilities, enabling remote monitoring and predictive maintenance based on real-time data from twisting moment load cells.
Ongoing research into new materials may lead to even more robust designs that can withstand harsher environments while maintaining high levels of accuracy and reliability.
As industries demand smaller devices with higher capabilities, future designs may focus on miniaturization without sacrificing performance, making these sensors even more versatile for compact applications.
Twisting moment load cells play a critical role in measuring torque and rotational forces across various industries. Their unique design and operational principles allow them to provide accurate and reliable measurements essential for quality control and testing processes. As technology advances, we can expect further improvements in their sensitivity, accuracy, and application range, making them indispensable tools across multiple sectors.
Twisting moment load cells specifically measure torque or rotational forces, while standard load cells typically measure linear forces such as tension or compression.
Calibration involves applying known torques to the load cell and adjusting its output signal until it matches the expected values based on those known inputs.
Industries such as automotive, aerospace, manufacturing, and robotics frequently utilize twisting moment load cells for various testing and measurement applications.
While primarily designed for torque measurement, some configurations may allow for simultaneous measurement of tension; however, this requires careful setup and calibration.
Factors such as temperature variations, external vibrations, improper installation, and lack of regular calibration can all impact the accuracy of twisting moment load cells.
