A load cell is a transducer that converts mechanical force into measurable electrical signals. These sophisticated sensors are fundamental to modern weight measurement and force detection systems, playing a crucial role across various industries from manufacturing to aerospace.

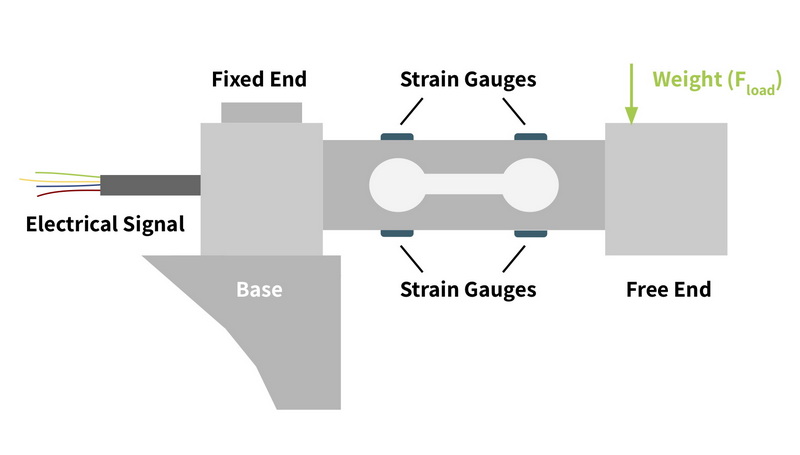

Load cells operate on the principle of converting mechanical force into electrical signals. The most common type uses strain gauges, which are sensitive electrical conductors that change resistance when subjected to mechanical stress.
1. Strain Gauge Load Cells
- Most commonly used type
- Utilizes electrical resistance changes
- High accuracy and reliability
2. Compression Load Cells
- Designed for measuring compressive forces
- Widely used in industrial scales
- Robust construction
3. Tension Load Cells
- Measures pulling forces
- Common in crane scales
- Specialized design for tensile applications
4. S-Type Load Cells
- Versatile design for both tension and compression
- Used in hanging scales
- Excellent stability
1. Industrial Manufacturing
- Process control
- Quality assurance
- Automated assembly lines
2. Transportation and Logistics
- Vehicle weighing
- Cargo handling
- Container weight verification
3. Agriculture
- Silo weight monitoring
- Harvest weighing
- Feed management
4. Medical and Healthcare
- Patient monitoring
- Medical equipment
- Pharmaceutical processing
5. Aerospace and Defense
- Aircraft component testing
- Thrust measurement
- Structural testing
Modern load cells incorporate advanced features such as:
- Digital signal processing
- Temperature compensation
- Environmental protection
- Wireless connectivity
- Real-time monitoring capabilities
Proper maintenance ensures optimal performance:
- Regular calibration
- Environmental protection
- Proper installation
- Periodic inspection
- Documentation of readings
The future of load cell technology includes:
- IoT integration
- Smart calibration systems
- Enhanced accuracy
- Miniaturization
- Energy efficiency improvements
A1: Modern load cells typically offer accuracy ratings between 0.03% to 1% of full scale, depending on the type and quality of the cell. High-precision load cells can achieve even better accuracy, sometimes reaching 0.015% of full scale.
A2: With proper maintenance and usage, quality load cells can last 10-15 years or more. However, this depends on environmental conditions, usage patterns, and maintenance practices.
A3: Yes, specially designed load cells can operate in temperatures ranging from -50°C to +150°C. However, standard load cells typically work best between -20°C to +70°C.
A4: Common causes include overloading, shock loading, moisture ingress, lightning strikes, chemical exposure, and improper installation or maintenance.
A5: Calibration frequency depends on usage and requirements but is typically recommended annually. Some applications may require more frequent calibration, especially in regulated industries or high-precision applications.
This comprehensive guide provides a thorough understanding of load cells, their applications, and importance in modern industry. As technology continues to advance, load cells will remain crucial components in force measurement and weight detection systems across various sectors.
