Understanding Load Cells

A load cell is a type of transducer that measures weight or force and converts it into an electrical signal. The most common type of load cell utilizes strain gauges to detect changes in resistance caused by applied loads. Load cells are widely used in scales, industrial weighing systems, and various other applications where precise force measurement is essential.

Load cells are often categorized based on their design and the type of force they measure. Understanding these categories can help in selecting the right load cell for specific applications.

How Load Cells Work

The fundamental working principle of a load cell involves converting mechanical force into an electrical signal. Here's how it works:

- Strain Gauge Principle: Most load cells employ strain gauges, which are small devices that change their electrical resistance when deformed. When a load is applied to the load cell, the structure deforms slightly, causing the strain gauges to stretch or compress.

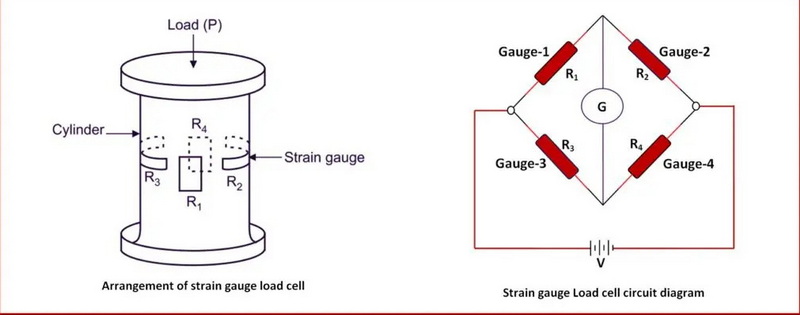

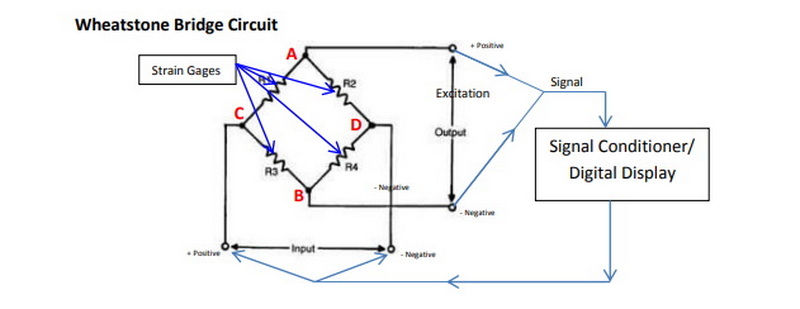

- Wheatstone Bridge Circuit: The strain gauges are typically arranged in a Wheatstone bridge configuration. This circuit allows for precise measurement of the changes in resistance caused by the deformation of the strain gauges. The output from this circuit is a voltage signal proportional to the applied force.

- Signal Processing: The voltage signal generated by the deformation of the strain gauges is then amplified and converted into a readable format, often displayed as weight on digital scales or monitoring systems.

Detailed Mechanism of Strain Gauges

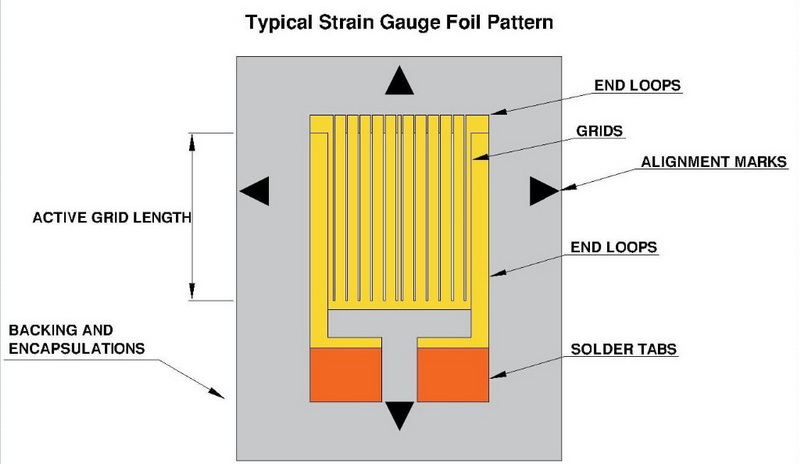

Strain gauges consist of a thin wire or metallic foil arranged in a zigzag pattern. When the load cell experiences stress due to an applied force, the strain gauge stretches or compresses, altering its length and cross-sectional area. This change results in a variation in electrical resistance, which can be quantified using Ohm's law.

Types of Load Cells

Load cells come in various types, each designed for specific applications and environments:

- Compression Load Cells: These measure compressive forces and are often used in applications where loads are applied vertically downward. They are commonly found in truck scales and hopper scales.

- Tension Load Cells: Designed to measure tensile forces, these load cells are used in applications where loads are pulled. They are frequently used in hanging scales and crane scales.

- Shear Beam Load Cells: These measure shear forces and are commonly used in platform scales. They provide high accuracy and stability under varying loads.

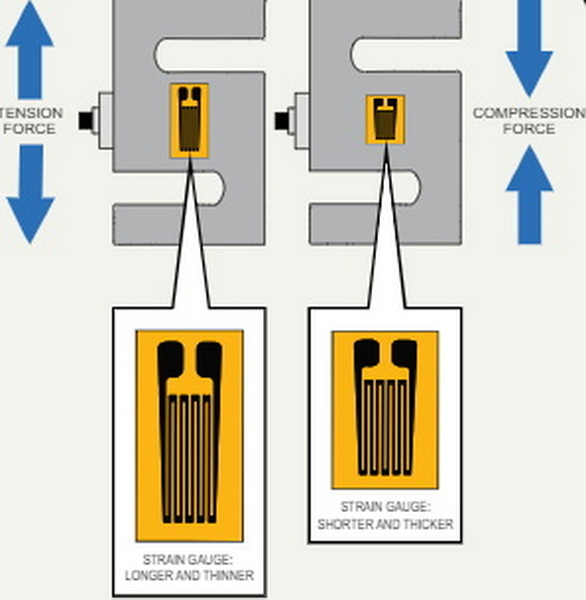

- S-Type Load Cells: Capable of measuring both tension and compression forces, they are versatile and often used in hanging scales. Their design allows for easy installation and integration into existing systems.

- Bending Beam Load Cells: Typically used for lower capacity applications, these load cells bend under load to measure weight. They are commonly found in small platform scales.

Applications of Load Cells

Load cells have a wide range of applications across various industries:

- Industrial Weighing: Used in manufacturing processes to ensure accurate material handling and product quality control. For example, they play a critical role in batching processes where precise ingredient measurements are necessary.

- Medical Equipment: Employed in medical scales for precise patient weight measurement. Accurate weight readings are essential for dosing medications based on body weight.

- Aerospace Testing: Used to measure forces during testing of aircraft components. This ensures that parts can withstand operational stresses without failure.

- Food Industry: Essential for weighing ingredients accurately during food processing. Load cells help maintain consistency and quality in food production.

- Construction and Civil Engineering: Used to monitor structural integrity by measuring forces on beams and supports during construction projects.

Emerging Applications

As technology advances, new applications for load cells continue to emerge:

- Robotics: In robotic systems, load cells can provide feedback on grip strength or payload weight, enhancing performance and safety.

- Automated Weighing Systems: In logistics and warehousing, automated systems utilize load cells for real-time inventory management by weighing packages as they move through sorting systems.

- Smart Agriculture: Load cells are being integrated into agricultural equipment to monitor soil pressure or crop weights, aiding precision farming techniques.

Advantages of Using Load Cells

The use of load cells offers several benefits:

- High Accuracy: Load cells provide precise measurements, which is crucial for quality control in manufacturing processes. Their ability to detect minute changes ensures reliable data collection.

- Versatility: Different types of load cells can be employed for various applications, making them adaptable to different needs across industries.

- Durability: Many load cells are designed to withstand harsh environments, ensuring long-term reliability even under extreme conditions such as temperature fluctuations or exposure to moisture.

- Ease of Integration: Load cells can be easily integrated into existing systems for enhanced measurement capabilities without significant modifications.

Factors Affecting Load Cell Performance

Several factors can influence the performance of load cells:

- Temperature Effects: Changes in temperature can affect the resistance of strain gauges; thus, temperature compensation techniques may be necessary for accurate measurements.

- Hysteresis: This refers to the difference in output when loading versus unloading a cell at the same weight. High-quality load cells minimize hysteresis effects through careful design.

- Linearity: A linear relationship between input (load) and output (signal) is essential for accurate readings across the entire range of operation.

Maintenance and Calibration

To ensure optimal performance, regular maintenance and calibration of load cells are essential:

- Calibration Procedures: Calibration involves applying known weights to the load cell and adjusting output readings accordingly to ensure accuracy over time.

- Routine Checks: Regular checks should include visual inspections for physical damage or wear, ensuring that connections remain secure and that there is no corrosion on exposed parts.

Conclusion

Load cells play an essential role in modern measurement technology by converting mechanical forces into electrical signals that can be accurately measured and recorded. Their versatility across different industries highlights their importance in ensuring precision and efficiency in various applications. Understanding their working principles helps industries leverage this technology effectively for improved operational performance.

Related Questions

1. What is the difference between tension and compression load cells?

Tension load cells measure pulling forces while compression load cells measure pushing forces.

2. How do you calibrate a load cell?

Calibration involves applying known weights to the load cell and adjusting the output readings to match these weights accurately.

3. What materials are commonly used in load cell construction?

Load cells are typically made from stainless steel or aluminum due to their strength and resistance to corrosion.

4. Can load cells be used outdoors?

Yes, many load cells are designed with protective coatings or enclosures that make them suitable for outdoor use.

5. What is the typical lifespan of a load cell?

With proper maintenance and calibration, a high-quality load cell can last many years, often exceeding ten years in service.
