What Is Load Cell Working Principle?

Content Menu

Introduction

>> What is a Load Cell?

>> Working Principle of Load Cells

>> Applications of Load Cells

>> Advantages of Load Cells

>> Installation and Calibration

Conclusion

Related Questions and Answers

>> 1.What is the main function of a load cell?

>> 2.How do strain gauge load cells work?

>> 3.What are the different types of load cells?

>> 4.Where are load cells commonly used?

>> 5.How important is calibration for load cells?

Introduction

Load cells are essential components in various industries, serving as the backbone for weight measurement and force sensing. They convert mechanical force into an electrical signal, allowing for precise measurements in applications ranging from industrial scales to medical devices. This article delves into the working principles of load cells, their types, applications, and the technology behind them.

What is a Load Cell?

A load cell is a transducer that converts a force such as tension, compression, pressure, or torque into an electrical signal. The most common type of load cell is the strain gauge load cell, which operates based on the principle of strain gauges. These devices are crucial in applications where accurate weight measurement is necessary.

Working Principle of Load Cells

The working principle of a load cell is based on the deformation of a material when a force is applied. When a load is applied to the load cell, it deforms slightly. This deformation is measured by strain gauges attached to the load cell. The strain gauges change their resistance in response to the deformation, which is then converted into an electrical signal.

1.Strain Gauge Principle: Strain gauges are resistive devices that change resistance when stretched or compressed. This change in resistance is proportional to the amount of force applied. The load cell uses a Wheatstone bridge circuit to convert this resistance change into a measurable voltage output.

2.Types of Load Cells:

Strain Gauge Load Cells: The most common type, used in various applications due to their accuracy and reliability.

Hydraulic Load Cells: Use fluid pressure to measure force and are often used in heavy-duty applications.

Pneumatic Load Cells: Utilize air pressure and are suitable for specific environments where electrical devices may not be ideal.

load cell work2

Applications of Load Cells

Load cells are used in a wide range of applications, including:

◆ Industrial Weighing: Used in scales for weighing products in manufacturing and shipping.

◆ Medical Devices: Employed in devices that require precise weight measurements, such as hospital beds and scales.

◆ Automotive Testing: Used in testing the weight and force of automotive components.

◆ Aerospace: Critical in measuring forces in aircraft components during testing.

Advantages of Load Cells

◆ High Accuracy: Load cells provide precise measurements, essential for quality control in manufacturing.

◆ Durability: Designed to withstand harsh environments, making them suitable for various applications.

◆ Versatility: Available in different types to suit specific measurement needs.

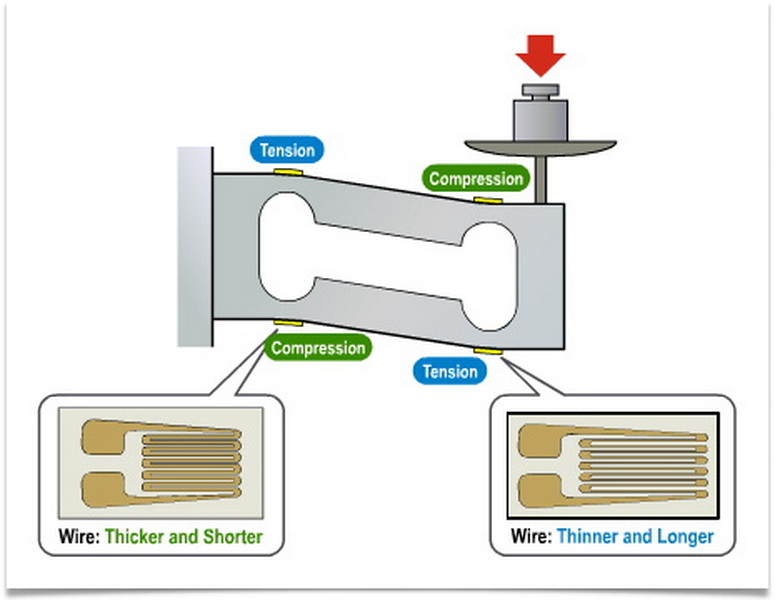

strain gauge load cell works_2

Installation and Calibration

Proper installation and calibration of load cells are crucial for accurate measurements. The following steps are typically involved:

1. Mounting: Load cells should be mounted securely to prevent movement during operation.

2. Wiring: Electrical connections must be made according to the manufacturer's specifications.

3. Calibration: Load cells should be calibrated using known weights to ensure accuracy.

Conclusion

Load cells play a vital role in modern measurement technology, providing accurate and reliable data across various industries. Understanding their working principles, types, and applications can help in selecting the right load cell for specific needs.

working principle_2

Related Questions and Answers

1.What is the main function of a load cell?

The main function of a load cell is to convert mechanical force into an electrical signal for measurement.

2.How do strain gauge load cells work?

Strain gauge load cells work by measuring the change in resistance of strain gauges attached to a deformable material when a load is applied.

3.What are the different types of load cells?

The different types of load cells include strain gauge load cells, hydraulic load cells, and pneumatic load cells.

4.Where are load cells commonly used?

Load cells are commonly used in industrial weighing, medical devices, automotive testing, and aerospace applications.

5.How important is calibration for load cells?

Calibration is crucial for load cells to ensure accurate measurements and reliable performance.

This article provides a comprehensive overview of load cells, their working principles, and their applications, ensuring a solid understanding of this essential technology.
