Load cells are fundamental components in modern force measurement systems, serving as the backbone of countless weighing and force monitoring applications. At the heart of load cell technology lies a crucial specification known as mV/V (millivolt per volt), which defines the sensitivity and output characteristics of these precision instruments.
The mV/V rating represents the fundamental relationship between the input excitation voltage supplied to a load cell and its output signal when subjected to its rated capacity. This measurement is expressed in millivolts of output per volt of excitation voltage. For instance, a load cell with a 2 mV/V rating will produce a 2-millivolt output signal for every volt of excitation voltage when loaded to its full capacity.

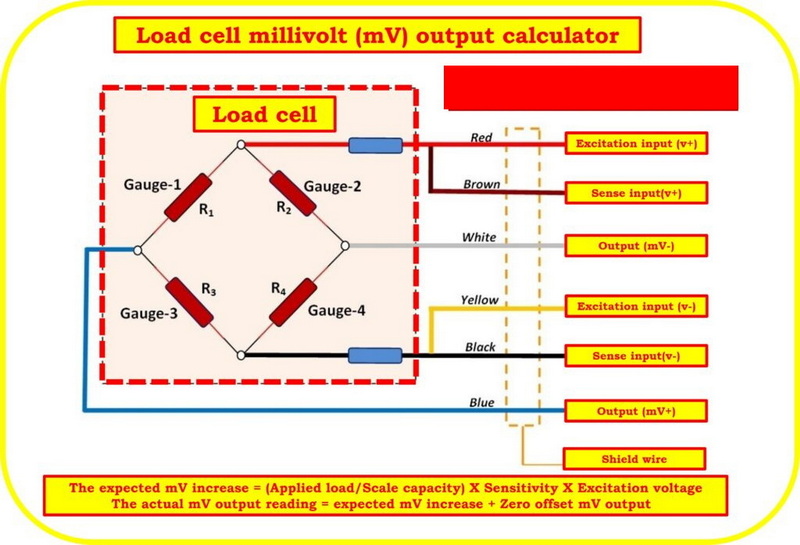

Load cells operate using strain gauge technology incorporated into a Wheatstone bridge configuration. When force is applied, the mechanical deformation causes resistance changes in the strain gauges, resulting in an electrical output signal. The sensitivity of this system is characterized by the mV/V rating.
The mV/V specification is crucial across numerous industries:
- Industrial weighing systems
- Material testing equipment
- Process control applications
- Quality control systems
- Research and development
- Aerospace and automotive testing
- Medical equipment
- Construction and civil engineering
Proper calibration is essential for accurate force measurements. The mV/V rating helps in:
- Determining appropriate signal conditioning requirements
- Selecting compatible instrumentation
- Establishing measurement ranges
- Ensuring system accuracy
- Compensating for environmental factors
Understanding mV/V characteristics is vital for:
- Diagnosing load cell issues
- Performing routine maintenance
- Ensuring long-term measurement stability
- Identifying calibration drift
- Implementing corrective measures
The field of load cell technology continues to evolve with:
- Digital load cells
- Wireless transmission capabilities
- Enhanced temperature compensation
- Improved signal processing
- Advanced calibration methods
A1: Most industrial load cells have a rated output of 2 mV/V or 3 mV/V, though some specialized applications may use different ratings depending on specific requirements and sensitivity needs.
A2: Temperature changes can affect the mV/V output through thermal expansion of the load cell material and changes in strain gauge resistance. Most modern load cells include temperature compensation to minimize these effects.
A3: Yes, mV/V ratings can be converted to other units such as voltage output or engineering units (force/weight) using appropriate conversion factors and excitation voltage values.
A4: Calibration frequency depends on usage, environment, and accuracy requirements. Typically, annual calibration is recommended, but critical applications may require more frequent calibration.
A5: Load cell sensitivity is affected by various factors including mechanical design, strain gauge configuration, material properties, temperature, and environmental conditions such as humidity and vibration.
This comprehensive guide provides a thorough understanding of mV/V in load cells, their applications, and technical considerations. For specific applications, always consult manufacturer specifications and technical documentation to ensure optimal performance and accuracy.
