Stress testing load cells is a critical process in various industries, ensuring that materials and structures can withstand the forces they will encounter during regular use. This article delves into the definition, methodology, applications, and significance of stress testing load cells, providing a comprehensive overview of this essential aspect of engineering and manufacturing.

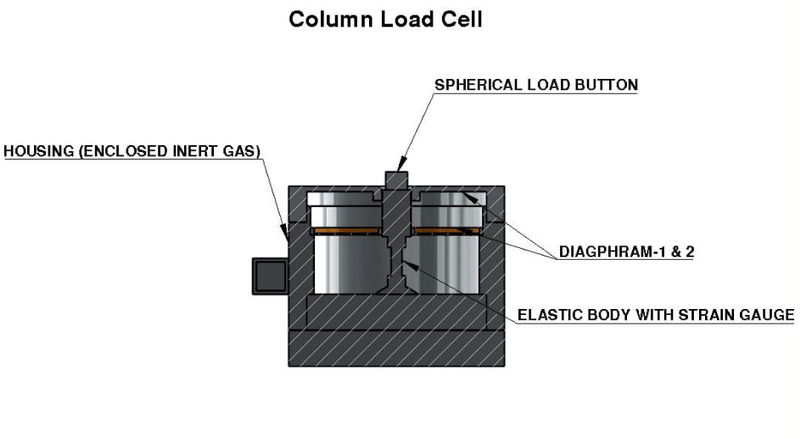

Load cells are transducers that convert a force or load into an electrical signal. They are integral to many applications, from industrial weighing systems to material testing and force monitoring. The basic principle behind a load cell involves the deformation of a sensing element, typically a strain gauge, when a force is applied. This deformation results in a change in electrical resistance, which can be measured and converted into an electrical signal proportional to the applied load.
- Strain Gauge Load Cells: The most common type, these utilize strain gauges arranged in a Wheatstone bridge configuration to measure deformation accurately.
- Hydraulic Load Cells: These rely on fluid pressure changes to measure force and are often used in high-capacity applications.
- Pneumatic Load Cells: Operating on air pressure principles, these are ideal for applications requiring cleanliness and safety.
- Bending Beam Load Cells: Suitable for various force applications, they are compact and can be integrated into restricted spaces.

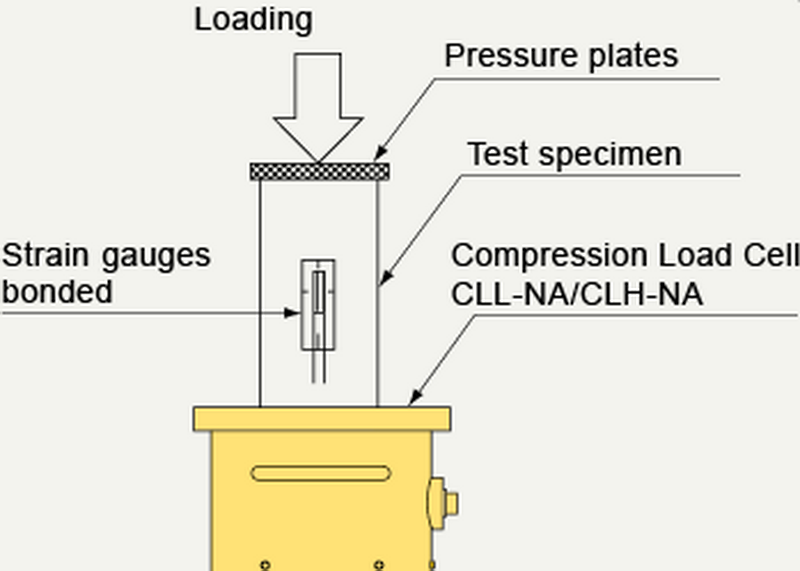

Stress testing refers to the process of applying a known load to a test specimen and measuring the resulting strain. This helps engineers determine how much stress the material can withstand before failing. There are two primary types of stress testing:
- Destructive Testing: This involves loading the specimen until it fails, providing data on the ultimate tensile strength (UTS) of the material.
- Non-Destructive Testing (NDT): Here, the specimen is loaded to a predetermined level and then unloaded. The stress-strain curve generated from this test helps calculate material properties like Young's modulus and yield strength without damaging the specimen.
Stress testing is vital for several reasons:
- Safety Assurance: Ensures that products can withstand operational stresses without failure, protecting users and operators.
- Quality Control: Helps manufacturers maintain high standards by verifying that materials meet specified performance criteria.
- Material Development: Assists in developing new materials by providing data on their mechanical properties under stress.
The process of stress testing load cells involves several key steps:
1. Preparation: Select an appropriate load cell based on the application requirements—considering factors like capacity, type of loading (tension/compression), and environmental conditions.
2. Calibration: Before testing, calibrate the load cell using known weights to ensure accuracy in measurements.
3. Application of Load: Gradually apply the load to the specimen using controlled mechanisms. For destructive tests, continue until failure occurs; for NDT, stop at predetermined levels.
4. Data Collection: Measure strain using precise electronic equipment connected to the load cell. Record data at various load levels to create a comprehensive stress-strain curve.
5. Analysis: Analyze the collected data to determine key material properties such as yield strength, UTS, and fatigue limits.
Stress testing with load cells finds applications across various fields:
- Construction: Ensuring structural integrity by testing materials like steel beams and concrete under expected loads.
- Aerospace: Verifying that components can withstand extreme conditions during flight.
- Automotive: Testing parts like suspension systems for durability under dynamic loads.
- Manufacturing: Quality control processes where products are tested for weight-bearing capacities before shipment.
Stress testing load cells is an essential practice across multiple industries, ensuring safety, quality control, and material development. By understanding how load cells work and implementing effective stress testing methodologies, engineers can guarantee that their products meet stringent performance standards.
A load cell is a transducer that converts mechanical force into an electrical signal proportional to that force. It is commonly used in weighing systems and material testing applications.
Destructive testing involves applying loads until failure occurs to determine ultimate tensile strength, while non-destructive testing applies loads up to a certain level without causing damage to assess material properties like yield strength.
Calibration ensures that the measurements taken by the load cell are accurate and reliable by comparing them against known reference weights.
Considerations include capacity requirements, type of loading (tension or compression), environmental conditions, size specifications, and fatigue ratings.
Industries such as construction, aerospace, automotive manufacturing, and quality control in production processes frequently utilize stress testing with load cells.
