In the realm of industrial and scientific measurement, few devices are as ubiquitous and essential as the load cell. These unassuming yet sophisticated instruments form the backbone of countless weighing systems, from bathroom scales to massive industrial weighbridges. But what exactly is a load cell, and how does it work its magic in translating physical force into measurable electrical signals?
A load cell is a transducer that converts a mechanical force or weight into an electrical signal. This conversion is the fundamental principle behind most modern weighing systems. Load cells are designed to sense force or weight under a wide range of conditions and can be found in various shapes and sizes to suit different applications.

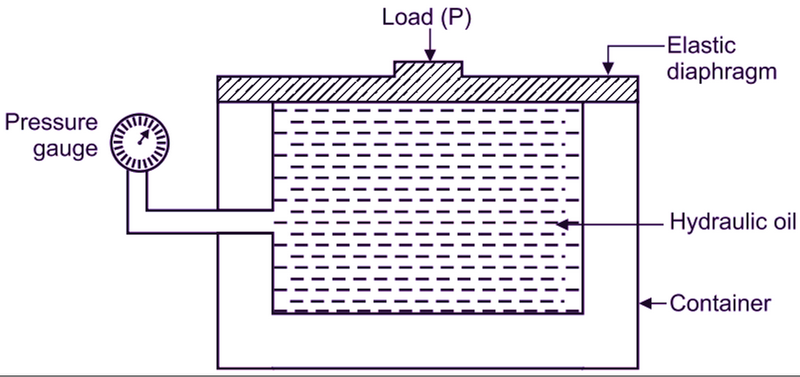

The image above illustrates a basic load cell mechanism, showcasing how force is applied and measured.
At the heart of most load cells lies a clever use of the strain gauge. When a force is applied to the load cell, it causes a minute deformation in the cell's body. This deformation is detected by strain gauges affixed to the load cell's surface.
Strain gauges are thin, metallic foil patterns adhered to a flexible backing. As the load cell deforms under weight, the strain gauge stretches or compresses, causing a change in its electrical resistance. This change in resistance is proportional to the applied force, allowing for precise measurement.
The change in resistance detected by the strain gauges is typically very small. To amplify and measure this change, load cells employ a Wheatstone bridge circuit. This arrangement of resistors can detect minute changes in resistance with high precision, converting them into a measurable voltage output.

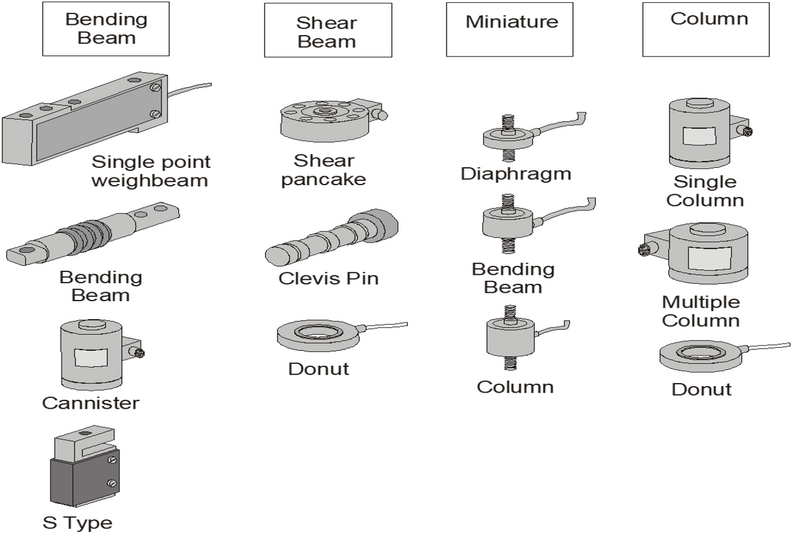

Load cells come in various types, each designed for specific applications and environments. Understanding these types is crucial for selecting the right load cell for a particular task.
Compression load cells are designed to measure force applied vertically downward onto the sensing element. They are commonly used in platform scales, truck scales, and industrial weighing applications.
As the name suggests, tension load cells measure forces pulling apart. They are often used in crane scales, material testing, and other applications where hanging weights need to be measured.
Shear beam load cells are versatile and widely used in industrial and commercial weighing. They can handle off-center loading and are suitable for platform scales and conveyor belt scales.
These load cells measure the bending moment caused by an applied force. They are commonly found in small to medium capacity scales and are cost-effective for many applications.

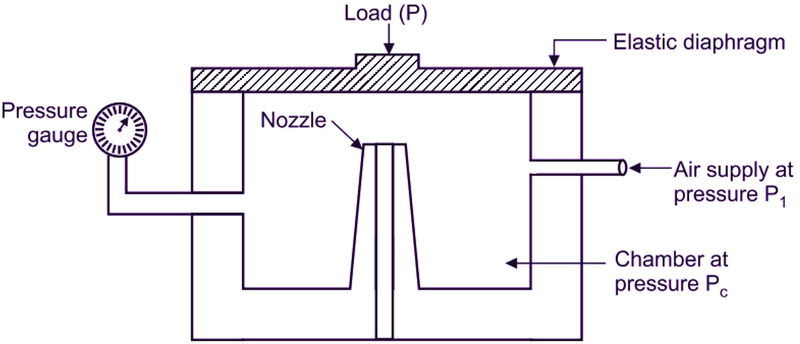

Pneumatic load cells use air pressure to measure force. They are ideal for environments where electrical sensors might be unsafe or unreliable, such as in explosive atmospheres.
The versatility of load cells makes them indispensable in a wide array of industries and applications. Here are some key areas where load cells play a crucial role:
From small bench scales to massive truck scales, load cells are the primary sensing elements in industrial weighing systems. They ensure accurate inventory management, process control, and compliance with trade regulations.
Load cells are essential in testing the structural integrity of aircraft components and automotive parts. They help measure forces during crash tests, material strength evaluations, and durability assessments.
In the medical field, load cells are used in patient lifts, hospital beds, and pharmaceutical manufacturing. They ensure precise dosing in drug production and help monitor patient weight in critical care settings.
Load cells provide crucial force feedback in robotic arms and automated assembly lines. This feedback allows for precise control and prevents damage to delicate components during manufacturing processes.
In agriculture, load cells are used in grain silos, livestock scales, and fertilizer dispensers. They help farmers manage resources efficiently and comply with regulatory requirements.
The accuracy of a load cell is paramount to its effectiveness. Regular calibration is essential to maintain precision and reliability in measurement.
Calibration involves comparing the load cell's output to known reference weights. This process ensures that the load cell provides accurate readings across its entire measurement range. Calibration should be performed:
1. Upon initial installation
2. After any repairs or adjustments
3. Periodically as part of regular maintenance
4. When environmental conditions change significantly
Several factors can impact load cell accuracy:
1. Temperature fluctuations
2. Humidity changes
3. Mechanical shock or vibration
4. Electrical interference
5. Improper installation or mounting
To maintain high accuracy, load cells must be properly shielded, installed, and maintained according to manufacturer specifications.
The load cell market is diverse, with numerous manufacturers offering a wide range of products. Some leading manufacturers include:
1. HBM (Hottinger Baldwin Messtechnik)
2. FUTEK Advanced Sensor Technology
3. Flintec
4. Vishay Precision Group
5. Mettler Toledo
Market trends in load cell technology include:
1. Increased focus on wireless and IoT-enabled load cells
2. Development of miniaturized load cells for compact applications
3. Integration of advanced materials for improved durability and accuracy
4. Enhanced digital signal processing for noise reduction and faster response times
While load cells and pressure sensors may seem similar, they serve distinct purposes:
- Measure force or weight
- Output is typically in units of force (e.g., Newtons, pounds-force)
- Used primarily for weighing applications
- Measure pressure (force per unit area)
- Output is in units of pressure (e.g., Pascal, psi)
- Used in applications like tire pressure monitoring, industrial process control
Understanding this distinction is crucial for selecting the appropriate sensor for a given application.
As technology advances, load cells continue to evolve. Some exciting developments include:
1. Smart load cells with built-in diagnostics and self-calibration capabilities
2. Integration with AI and machine learning for predictive maintenance
3. Development of ultra-high capacity load cells for specialized industrial applications
4. Improved energy efficiency and battery life for portable weighing systems
These advancements promise to make load cells even more versatile, accurate, and indispensable in the years to come.
Load cells are the unsung heroes of the modern measurement world. From ensuring fairness in trade to safeguarding lives in critical applications, these devices play a vital role in countless industries. As we've explored their types, applications, and working principles, it becomes clear that load cells are not just simple sensors but sophisticated instruments that bridge the physical and digital worlds. As technology continues to advance, load cells will undoubtedly evolve, becoming smarter, more accurate, and more integrated into our increasingly connected world. Whether you're an engineer designing the next generation of weighing systems or simply curious about the technology behind your bathroom scale, understanding load cells provides valuable insight into the intricate world of force measurement.
A1: The frequency of load cell calibration depends on various factors, including usage, environmental conditions, and regulatory requirements. As a general rule, load cells should be calibrated at least once a year. However, in critical applications or harsh environments, more frequent calibration may be necessary. Always follow manufacturer recommendations and industry standards for your specific application.
A2: While some specialized load cells can measure both tension and compression forces, most load cells are designed primarily for one type of force measurement. Compression load cells are optimized for measuring forces pushing down on them, while tension load cells are designed for measuring pulling forces. For applications requiring both types of measurement, it's often best to use separate load cells specifically designed for each force type.
A3: The terms "load cell" and "force transducer" are often used interchangeably, but there can be subtle differences. A load cell specifically refers to a device that measures weight or force by converting it into an electrical signal. A force transducer is a more general term that can include load cells but may also refer to other devices that convert force into various types of signals, not necessarily electrical. In practice, most people in the industry use these terms synonymously, especially when referring to electrical force measurement devices.
A4: Environmental factors can significantly impact load cell performance. Temperature fluctuations can cause thermal expansion or contraction of the load cell material, affecting its accuracy. Humidity can lead to moisture ingress in improperly sealed load cells, potentially causing corrosion or electrical issues. Vibration and shock can introduce noise in the signal or even damage the load cell. Electromagnetic interference can also affect the electrical output of the load cell. To mitigate these issues, load cells are often designed with temperature compensation, hermetic sealing, and electromagnetic shielding. Additionally, proper installation and environmental control can help maintain optimal performance.
A5: The lifespan of a load cell can vary greatly depending on its construction, usage, and environmental conditions. Under normal operating conditions and with proper maintenance, a high-quality load cell can last 10 years or more. However, factors such as overloading, shock loading, corrosive environments, or extreme temperature fluctuations can significantly reduce this lifespan. Regular inspection, calibration, and adherence to manufacturer guidelines can help maximize the operational life of a load cell. It's also important to note that even if a load cell is still functioning, its accuracy may degrade over time, necessitating replacement in applications requiring high precision.
