In our increasingly automated and precision-driven world, accurate measurement of force and weight is crucial across various industries. At the heart of this measurement technology lies a device known as the load cell. But what exactly is a load cell, and why is it so important? This article will delve deep into the world of load cells, exploring their meaning, functionality, types, and applications.

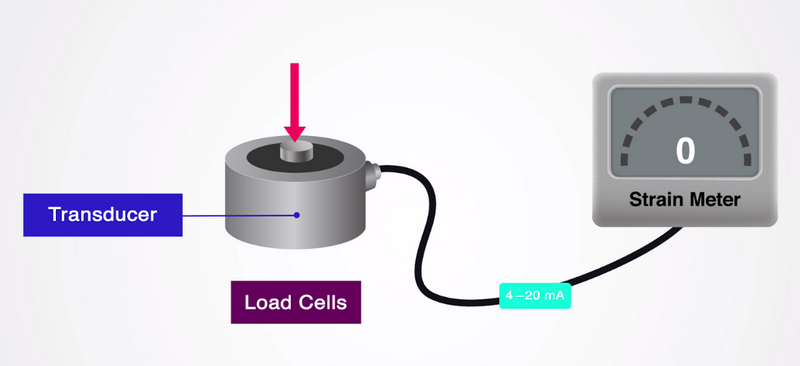

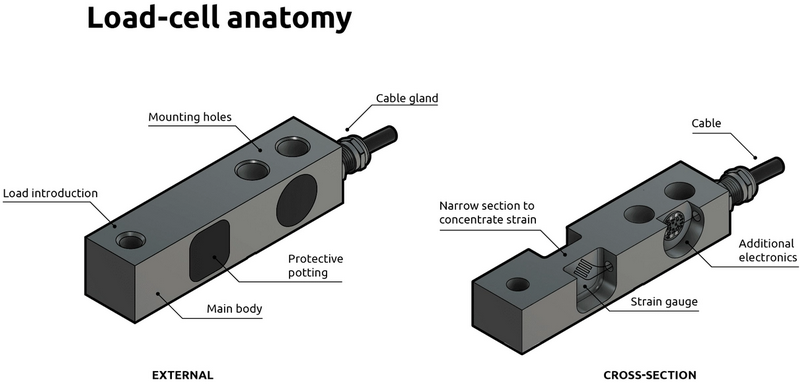

A load cell is a transducer that converts a mechanical force or load into a measurable electrical signal[1][2]. In simpler terms, it's a sensor that can detect and quantify weight or force. Load cells are the unsung heroes of modern weighing systems, found in everything from kitchen scales to industrial weighbridges.
The principle behind most load cells is deceptively simple yet incredibly effective. Here's a breakdown of the process:
1. Force Application: When a force is applied to the load cell, it causes a slight deformation in the cell's body.
2. Strain Gauge Reaction: This deformation is detected by strain gauges attached to the load cell.
3. Electrical Resistance Change: The strain causes a change in the electrical resistance of the strain gauges.
4. Signal Generation: This change in resistance is converted into an electrical signal.
5. Signal Processing: The electrical signal is then processed and converted into a readable measurement of force or weight.
Load cells come in various types, each designed for specific applications and environments. Let's explore some of the most common types:

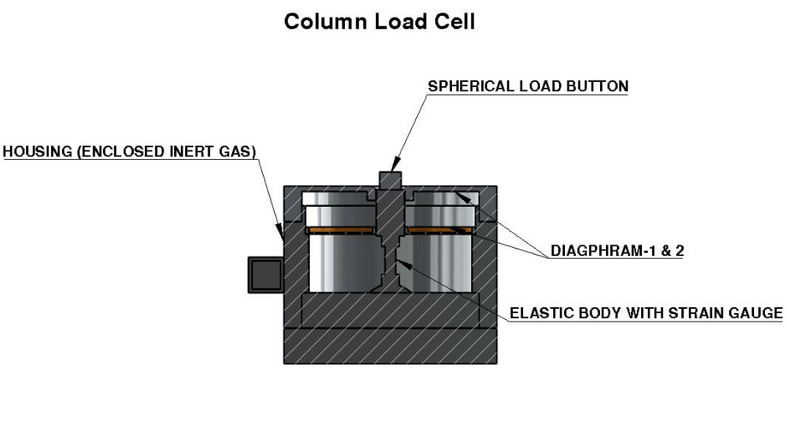

These are the most widely used type of load cells. They work on the principle of change in electrical resistance due to applied force.
These load cells use fluid pressure to measure force. They're particularly useful in hazardous environments as they don't contain any electrical components.
Similar to hydraulic load cells, these use air pressure instead of fluid. They're ideal for clean room and explosive environments.
These load cells measure force by detecting changes in electrical capacitance.
The versatility of load cells makes them indispensable in numerous industries and applications. Here are some key areas where load cells play a crucial role:
From platform scales to conveyor belt scales, load cells are the heart of industrial weighing systems.
Load cells are used in aircraft assembly, brake testing, and even measuring jet engine thrust.
In the automotive sector, load cells are essential for seat testing, crash testing, and suspension analysis.
Load cells are found in various medical devices, from patient lifts to high-precision pharmaceutical scales.
In agriculture, load cells are used in grain silos, livestock scales, and even in precision farming equipment.
Accuracy is paramount when it comes to load cells. Even a small error in measurement can lead to significant issues, especially in industries where precision is critical. Load cells are capable of measuring weight down to milligrams, with different classifications based on accuracy requirements.
Factors that can affect load cell accuracy include:
- Environmental temperature
- Humidity
- Side and eccentric loads
- Mounting angle
- Creep from repeated use
To maintain accuracy, regular calibration of load cells is essential. Calibration involves comparing the load cell's output to known reference weights or forces. This process establishes a linear relationship between the applied force and the electrical output, ensuring subsequent measurements are accurate.
As technology continues to advance, so too does load cell design and functionality. Some emerging trends in load cell technology include:
1. Wireless Load Cells: These eliminate the need for complex wiring systems, making installation and maintenance easier.
2. Smart Load Cells: Equipped with built-in diagnostics and data processing capabilities, these load cells offer enhanced performance and reliability.
3. Miniaturization: As devices get smaller, there's a growing demand for compact, high-precision load cells.
4. Integration with IoT: Load cells are increasingly being integrated into Internet of Things (IoT) systems, allowing for real-time monitoring and data analysis.
Load cells are the unsung heroes of our modern world, quietly ensuring accuracy and precision in countless applications. From the food we buy at the supermarket to the safety systems in our cars, load cells play a vital role in our daily lives. As technology continues to evolve, we can expect load cells to become even more sophisticated, accurate, and integrated into our increasingly connected world.
Understanding the meaning and functionality of load cells is crucial for anyone involved in industries that rely on precise force or weight measurement. Whether you're an engineer designing new weighing systems, a quality control manager in a manufacturing plant, or simply a curious individual, appreciating the importance of load cells can give you a new perspective on the technology that surrounds us.
A strain gauge is a component of a load cell. While a strain gauge measures the deformation of an object, a load cell is a complete sensor that uses strain gauges to convert force into an electrical signal.
With proper use and maintenance, load cells can last for many years. However, their lifespan can be affected by factors such as overloading, shock loading, and environmental conditions.
Some load cells are designed to measure both tension and compression forces, while others are specialized for one type of force. S-type load cells, for example, can often measure both.
OIML (International Organization of Legal Metrology) and NTEP (National Type Evaluation Program) are both certification standards for weighing equipment. OIML is an international standard, while NTEP is specific to the United States. Both ensure that load cells meet certain accuracy and reliability standards for legal-for-trade applications.
In the food industry, load cells are used in various applications, including ingredient batching, portion control, and packaging. They ensure accurate measurements for recipe consistency, regulatory compliance, and fair pricing in retail settings.
