Tension load cells are crucial components in various industries, providing precise measurements of tensile forces. These sensors convert mechanical force into an electrical signal, allowing for accurate monitoring and control of loads. This article delves into the theory behind tension load cells, their applications, and their significance in modern technology.
A tension load cell is a type of force sensor specifically designed to measure tensile forces. Unlike compression load cells, which measure forces pushing down on them, tension load cells measure forces pulling away from them. This fundamental difference dictates their design and application.

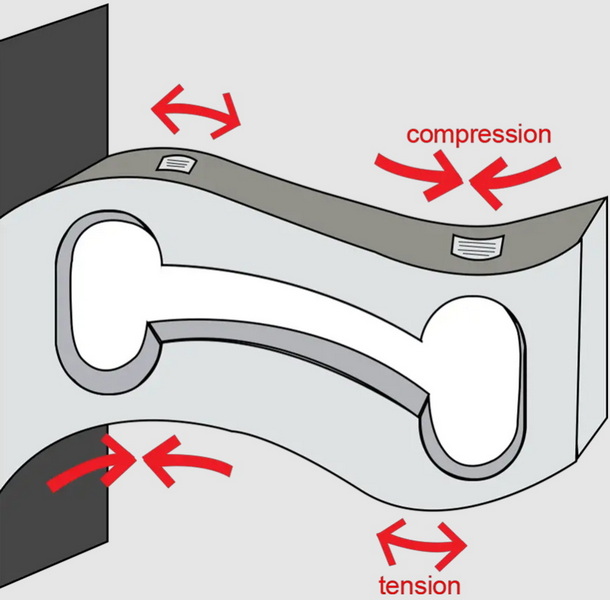

The operation of a tension load cell is based on the principle of strain gauges. When a tensile force is applied, the load cell deforms slightly. This deformation changes the electrical resistance of the strain gauges attached to the cell, which is then converted into an electrical signal proportional to the force applied.
- Strain Gauge Mechanism: The most common type of tension load cell utilizes a Wheatstone bridge configuration with four strain gauges. As the load cell stretches under tension, the strain gauges experience deformation, leading to changes in resistance that can be measured accurately.
- Electrical Signal Conversion: The change in resistance generates an electrical signal that can be calibrated to reflect the actual force applied. This allows for real-time monitoring and control in various applications.
To better understand how tension load cells function, it's important to look at their key components:
1. Strain Gauges: These are thin strips of material that change resistance when stretched or compressed.
2. Load Cell Body: The structure that houses the strain gauges and provides mechanical support.
3. Wheatstone Bridge Circuit: A configuration used to measure small changes in resistance accurately.
4. Output Signal Conditioning Circuit: This converts the raw signal from the strain gauges into a usable format for measurement devices.
Tension load cells are widely used across multiple sectors due to their versatility and precision. Here are some key applications:
- Material Testing: Used to determine the tensile strength and elasticity of materials in laboratories. For instance, engineers use tension load cells to test metals, plastics, and composites to ensure they meet safety standards.
- Manufacturing: Monitor tension in cables and wires during production processes. In industries such as automotive manufacturing, maintaining appropriate tension in wire harnesses is critical for product reliability.
- Construction: Measure tensile forces in structures like bridges and buildings to ensure safety and compliance with engineering standards. Engineers use these measurements to assess structural integrity over time.
- Aerospace: Used in testing components under stress to ensure reliability and safety. For example, tension load cells can be used during fatigue testing of aircraft components.
- Transportation: Measure loads in cranes and hoists during lifting operations. Accurate measurements help prevent overloads that could lead to accidents or equipment failure.
1. High Sensitivity: Tension load cells can detect minute changes in force, making them ideal for applications requiring precision.
2. Easy Installation: Many models come with built-in hooks or attachment points for straightforward integration into existing systems.
3. Durability: Designed to withstand harsh environments, these sensors are often made from robust materials that ensure longevity.
4. Wide Range of Measurement: They can measure various ranges of tensile forces, from very light loads (in laboratory settings) to heavy loads (in industrial applications).
5. Real-Time Monitoring: Many modern tension load cells provide real-time data output, enabling immediate responses to changing conditions or loads.
There are several types of tension load cells available, each suited for specific applications:
| Type | Description | Applications |
|---|---|---|

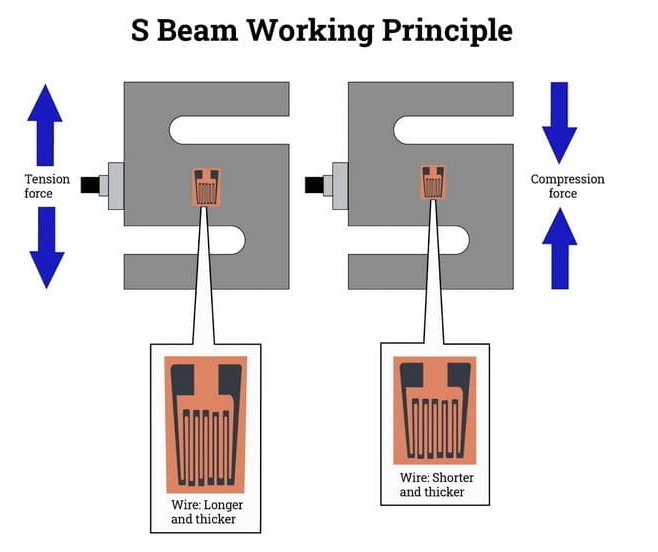

| S-Type | Compact design; measures both tension and compression | Hanging scales; general use |
| Beam Load Cells | Often used in industrial settings | Material testing; weighing scales |
| Load Shackles | Used in lifting applications | Cranes; hoists |
| Canister Load Cells | Designed for high-capacity applications | Heavy machinery; industrial scales |
When installing tension load cells, several factors must be considered:
- Alignment: Proper alignment is crucial to ensure accurate measurements. Misalignment can lead to erroneous readings and affect system performance.
- Environmental Conditions: Choose load cells that can withstand temperature fluctuations, humidity, and potential corrosive environments. For example, stainless steel or coated load cells may be necessary for outdoor or marine applications.
- Calibration: Regular calibration is necessary to maintain accuracy over time. The frequency of calibration depends on usage but typically should be done annually or biannually.
- Mounting Techniques: Selecting appropriate mounting techniques is essential for optimal performance. For instance, using appropriate hardware that minimizes friction can improve measurement accuracy.
To fully appreciate how tension load cells work, it's beneficial to understand the underlying theory behind strain gauges:
Strain is defined as the deformation per unit length experienced by a material when subjected to stress (force per unit area). The relationship between stress (σ) and strain (ε) is given by Hooke's Law:
σ=E⋅ϵ
Where:
- σ = stress
- E = Young's modulus (a material property)
- ε = strain
In practical terms, when a tensile force is applied to a material like a metal beam or wire, it stretches slightly. Strain gauges exploit this principle by measuring the change in resistance caused by this deformation.
The Wheatstone bridge is a fundamental circuit used for precise measurement of electrical resistance changes:
1. It consists of four resistors arranged in a diamond shape.
2. When one resistor changes due to strain (as in a strain gauge), it creates an imbalance.
3. This imbalance produces a voltage difference that can be measured accurately.
This configuration allows for high sensitivity and accuracy when measuring small changes in resistance due to applied loads.
While tension load cells are highly effective tools, they do come with challenges:
1. Temperature Sensitivity: Changes in temperature can affect readings; thus, compensation techniques may be necessary.
2. Creep Effects: Over time under constant load, materials may deform slightly (creep), leading to inaccuracies unless accounted for.
3. Installation Errors: Improper installation can lead to misalignment or excessive loading on certain parts of the cell, affecting performance.
4. Signal Noise: Electrical noise can interfere with output signals; using proper shielding techniques can mitigate this issue.
As technology advances, so does the field of tension load cells:
1. Wireless Technology: The integration of wireless communication allows for remote monitoring without cumbersome wiring.
2. Smart Sensors: Incorporating IoT technology enables real-time data analysis and predictive maintenance capabilities.
3. Miniaturization: Smaller sensors are being developed without sacrificing accuracy or sensitivity, making them suitable for tighter spaces.
4. Enhanced Materials: Research into new materials may lead to more durable sensors capable of withstanding extreme conditions.
Tension load cells play a vital role in modern industry by providing accurate measurements of tensile forces. Their ability to convert mechanical stress into electrical signals has revolutionized how we monitor and control loads across various applications. Understanding the theory behind these sensors is essential for engineers and technicians working with them.
With advancements in technology continuing to evolve this field, we can expect even greater precision and functionality from tension load cells in the future.
A tension load cell is a device used to measure tensile forces by converting mechanical stress into an electrical signal.
It works by using strain gauges that deform under tensile stress, changing their electrical resistance, which is then measured as an output signal.
Common applications include material testing, manufacturing processes, construction monitoring, aerospace testing, and transportation equipment.
They offer high sensitivity, easy installation, durability against environmental conditions, precise measurements, and real-time monitoring capabilities.
Regular calibration is recommended to maintain accuracy; this can vary based on usage but typically should be done annually or biannually.
