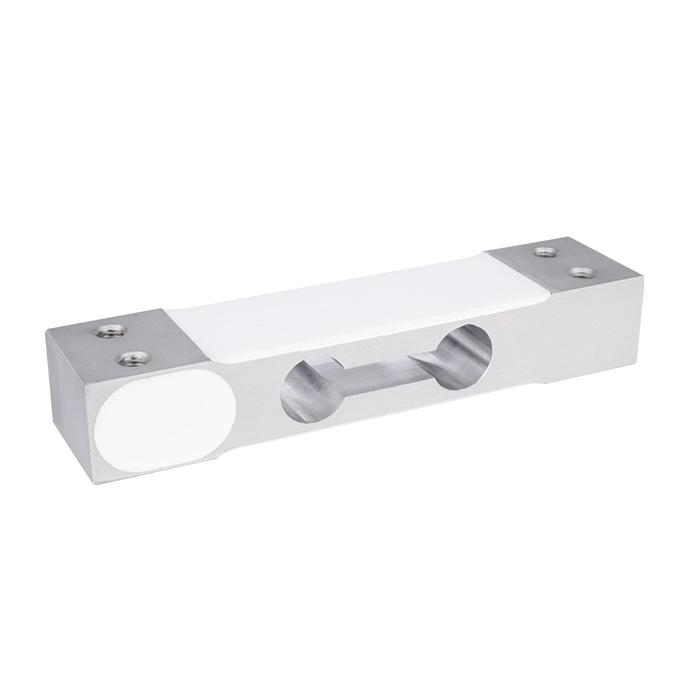

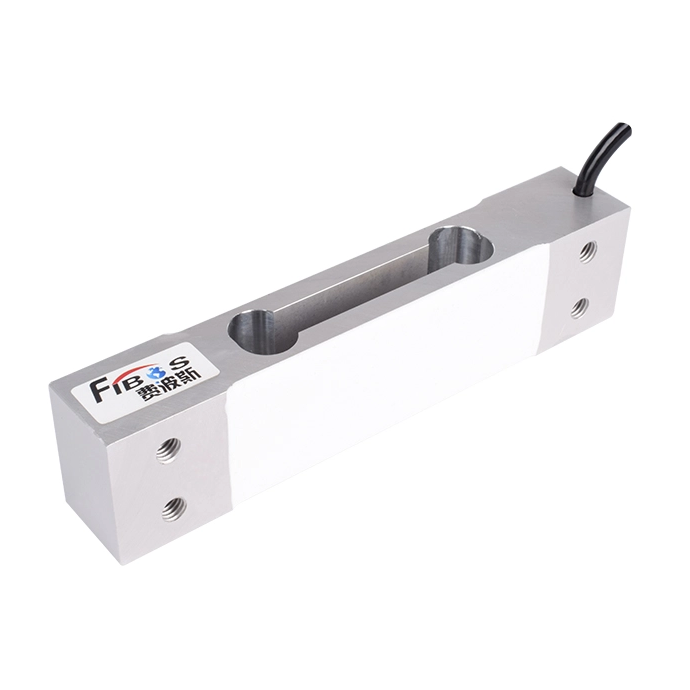

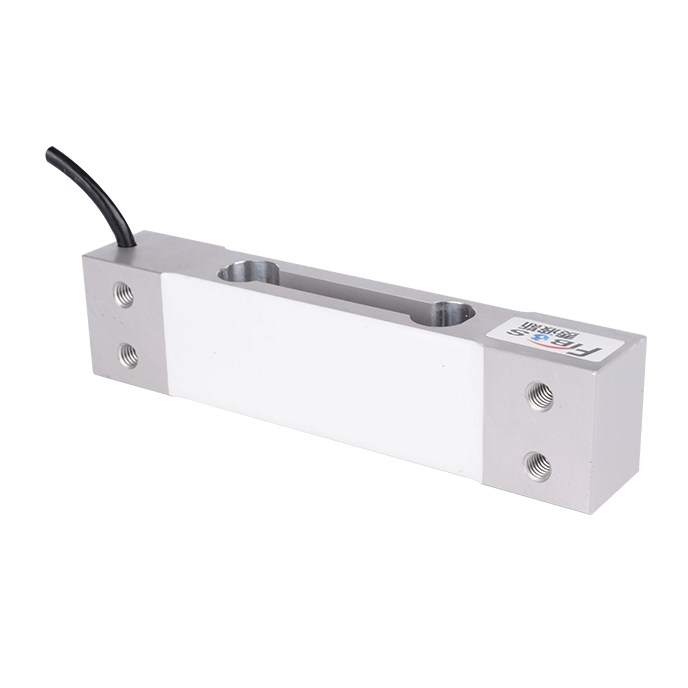

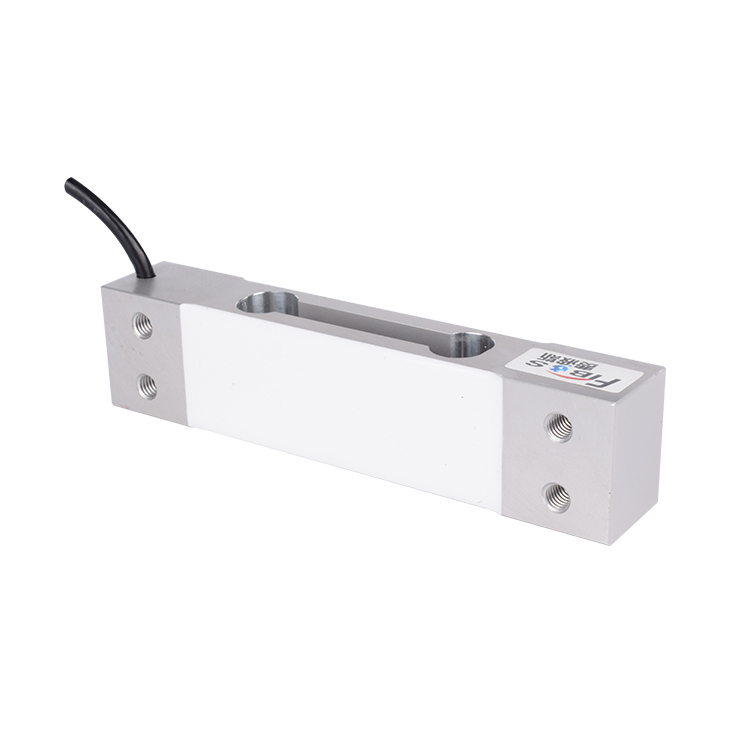

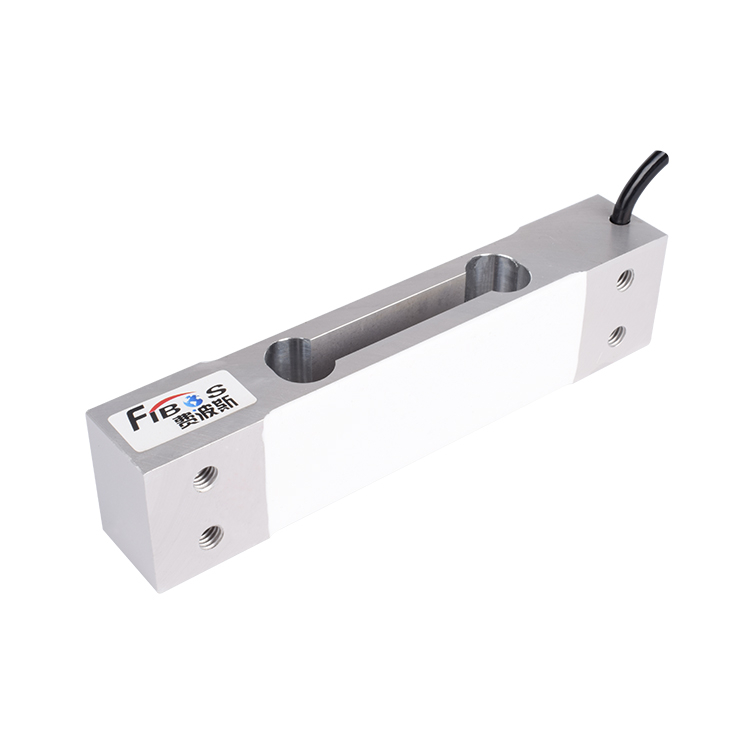

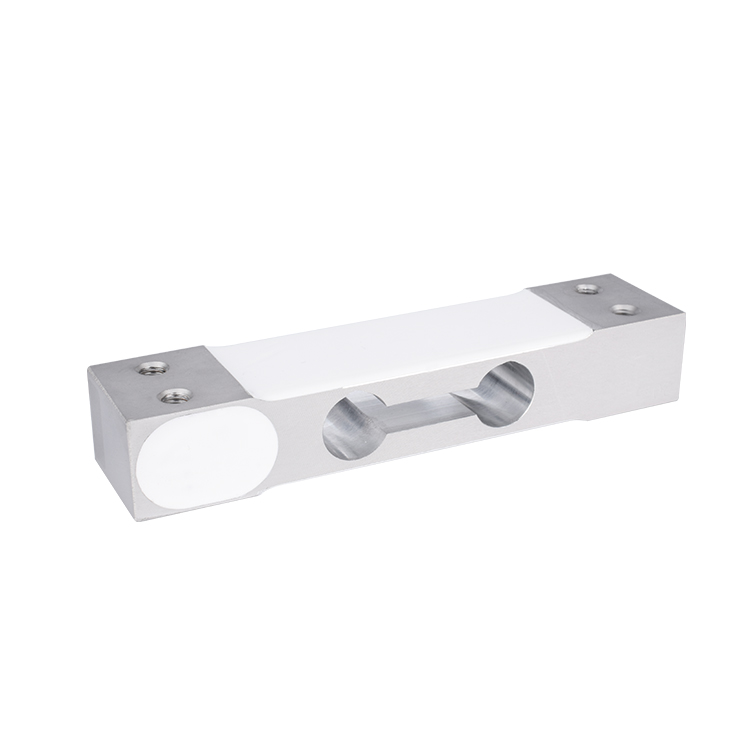

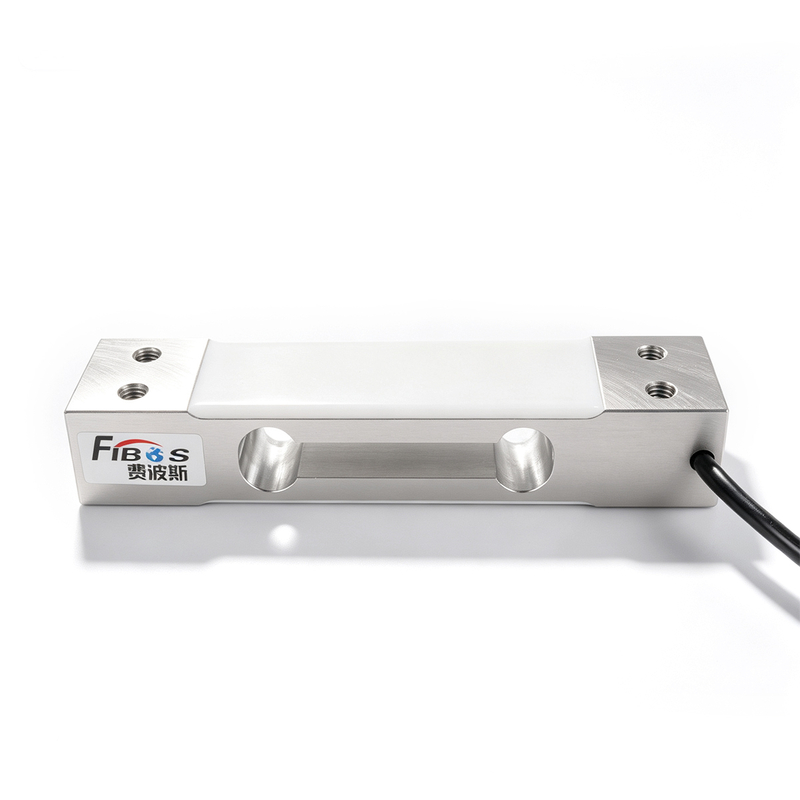

Bench Scale Load Cell

Suitable for weighing system such as valuation scale and counting scale

Model:
FA504
Brand:
FIBOS
Capacity:
3,6,10,20,30,40,50kg
Accuracy:
0.017%F.S.
Dimensions:
L:130mm;H:22mm;W:30mm
Maximum size of the scale:
300x300mm
Deflection at Full Scale:
＜0.55mm
Natural Frequency:
＞100Hz
Material:
Aluminium alloy


Availability:



Inquire

Product Description

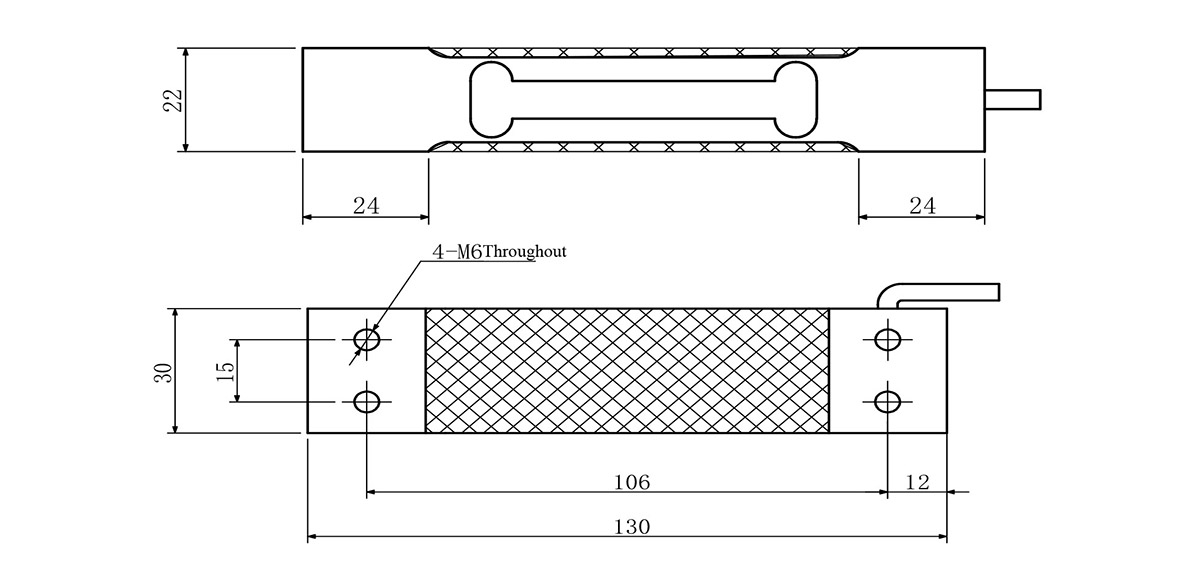

Dimensions（Unit：mm）

Bench Scale Load Cell

We provide 3D model files of our products.

Support to facilitate your design of workpiece.

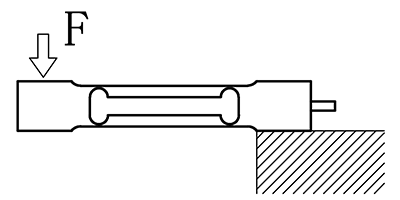

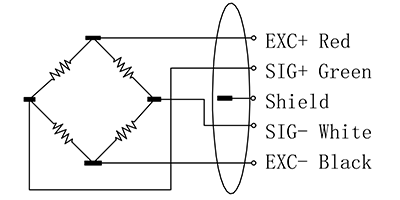

Load Direction	Wiring

Specifications

Specifications	Technique
Capacity	3,6,10,20,30,40,50kg
Sensitivity	2.0±10%mV/V
Zero balance	±0.02%mV/V
Creep	0.017%F.S.
Non-linearity	0.017%F.S.
Hysteresis	0.017%F.S.
Repeatability	0.017%F.S.
Input impedance	410±15Ω
Output impedance	350±5Ω
Temp. effect on output	0.02%F.S./10℃
Temp. effect on zero	0.02%F.S./10℃
Insulation resistance	≥5000MΩ/50V(DC)
Recommended excitation	5~12V
Maximum excitation	15V
Compensated temp. range	-10~40℃
Operating temp. range	-20~60℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Cable size	Φ4x0.5m
Material	Aluminium Alloy
Maximum size of the scale	300mmX300mm

Installation

Delivery Configurations

Micro Compression Load Cell

Related Products

Platform Load Cell Sensor

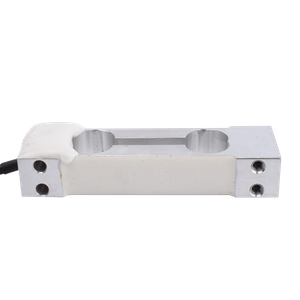

Aluminium Single Point Load Cell FA501
