A load cell is a transducer that converts mechanical force into an electrical signal. This transformation allows for precise measurement of weight or force, which is crucial in many industrial applications. Load cells can be classified based on their design and the type of force they measure, such as tension or compression.

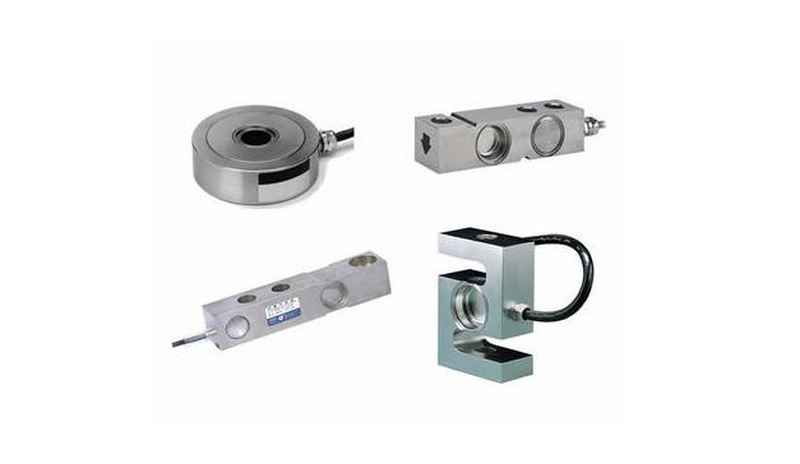

Understanding the various types of load cells is crucial for selecting the right one for your needs. Here are some common types:
Strain gauge load cells are the most widely used type due to their accuracy and reliability. They operate on the principle that the electrical resistance of a material changes when it is deformed. These load cells can measure both tension and compression forces.
Compression load cells are designed specifically to measure compressive forces. They are commonly used in applications where weight needs to be monitored, such as in scales and industrial equipment.
As the name suggests, tension load cells measure forces that pull apart. These are often used in applications such as lifting and hoisting, where understanding tensile forces is critical.

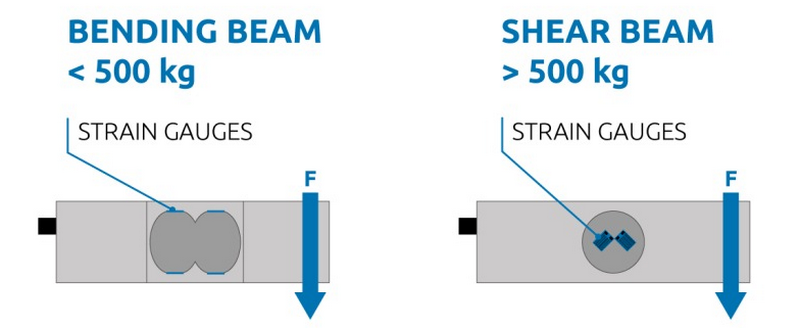

Shear beam load cells are suitable for medium to high-capacity applications. They are often found in truck scales and industrial automation systems.
Canister load cells are designed for high-capacity applications and are often used in silo and tank weighing systems. Their robust design makes them ideal for harsh environments.
When selecting a load cell, several factors must be taken into account to ensure optimal performance:
Determine the maximum weight or force that the load cell will need to measure. It's essential to choose a load cell with a capacity that exceeds your maximum expected load to avoid damage or inaccurate readings.
Consider the environment where the load cell will operate. Factors such as temperature, humidity, and exposure to corrosive substances can affect performance. For example, if a load cell will be exposed to moisture, selecting a hermetically sealed model is advisable.
The required accuracy level will vary by application. Some industries demand high precision (e.g., medical or laboratory settings), while others may tolerate more significant deviations.
The mounting method is crucial for ensuring that the load cell functions correctly. Different designs may require specific mounting configurations (e.g., threaded ends for easy installation).
The physical dimensions of the load cell should fit within your application's constraints. Consider height, width, length, and weight when making your selection.
Load cells find use in numerous industries due to their versatility:
- Industrial Automation: Strain gauge load cells are often used in automated manufacturing processes for quality control.
- Agriculture: Canister load cells are commonly employed in grain storage facilities to monitor weight accurately.
- Healthcare: Bending beam load cells are utilized in patient beds to monitor weight changes.
- Transportation: Shear beam load cells are preferred for weighing trucks and cargo containers due to their ability to handle heavy loads.
Choosing the right load cell is essential for ensuring accurate measurements in various applications. By understanding the different types of load cells available and considering factors such as capacity, environmental conditions, accuracy requirements, mounting type, and size constraints, you can make an informed decision that enhances your operational efficiency.
Tension load cells measure forces pulling apart (tensile forces), while compression load cells measure forces pushing together (compressive forces). Choose based on the direction of force in your application.
Calibration frequency depends on your industry and application requirements. Critical applications may require quarterly calibration, while others might only need annual checks.
Yes, many users can install a load cell themselves if they follow the manufacturer's guidelines carefully. However, professional installation may be recommended for complex systems.
Factors such as temperature fluctuations, mounting errors, mechanical stress beyond rated capacity, and environmental conditions can affect accuracy.
Regular inspections for physical damage, ensuring proper calibration intervals, and monitoring environmental conditions can help maintain performance over time.
